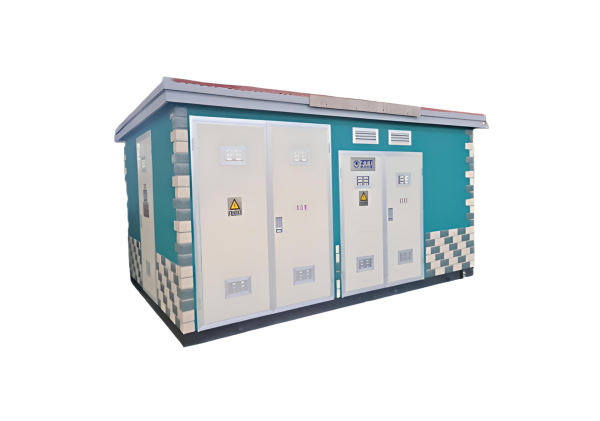

The YB series European-style prefabricated substation integrates HV switchgear, power transformer and LV switchgear in one weatherproof enclosure. Compliant with GB/T 17467 and IEC 1330, it delivers a compact footprint, fast installation and low maintenance — ideal for urban distribution and decentralized power supply.
| Item | Parameter |
|---|---|
| Rated voltage | HV: 12 / 40.5 kV · LV: 0.4 / 0.69 kV |
| Transformer capacity | 400 – 3350 kVA (standard: 400 / 630 / 900 / 1600 / 2350 / 3350) |
| Rated frequency | 50 Hz |
| Rated current | HV: 630 – 1250 A · LV: 100 – 3200 A |
| Short-circuit breaking current | HV: 20 / 25 / 31.5 kA · LV: 15 / 30 / 65 kA |
| Protection class | IP33D (IP44+ available) |
| Standards | GB/T 17467, IEC 1330 |
| Ambient temperature | −25 °C ~ +40 °C, altitude ≤ 1000 m |
Urban grid renovation · residential communities · high-rises · industrial plants · hotels & shopping malls · airports · railways · oil fields · ports · highways · construction sites · renewable energy (PV / wind / BESS)
