PCS-Integrated Prefabricated Substation

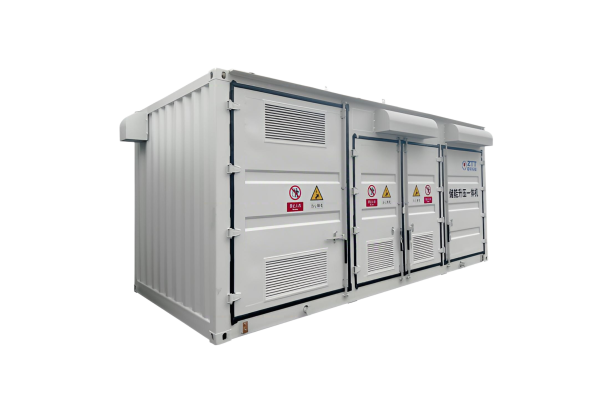

An all-in-one container substation integrating PCS / PV inverter, transformer, HV switchgear and LV distribution panel. Factory-assembled for rapid deployment, saving space vs. split-type solutions. Ideal for PV plants and energy storage stations, supporting 12 kV / 40.5 kV grid connection.

Five-in-one design — fully factory-preassembled, one-time on-site installation
Transformer options — dry / oil type; PV American-style (transformer + HV switch combined)
Space-saving & fast deployment — replaces two separate units
IP54 protection — suitable for desert, Gobi and harsh outdoor environments
Smart & customisable — remote monitoring, dual auxiliary power, flexible configurations

Item	Parameter
Rated capacity	1000 – 10000 kVA
HV voltage	12 / 40.5 kV
LV voltage	0.27 – 0.8 kV
Frequency	50 / 60 Hz
Transformer	Oil-type (dry-type optional), ONAN / AN / AF, ±2×2.5% tap
Noise level	≤ 60 dB
HV switch	RMU / MV switchgear, SF6 / dry air, 630 – 3150 A
Short-time withstand	25 / 31.5 kA (2s / 3s / 4s)
LV switch	Fixed type, 100 – 630 A, MCCB / MCB
Protection class	IP54
Ambient temp.	−30 °C ~ +45 °C
