Chinese-style (Hybrid) Box-type Substation

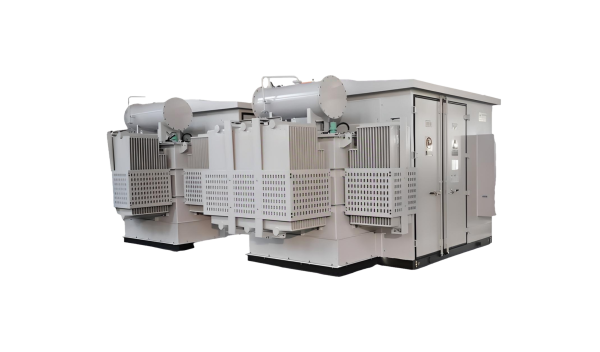

Combining the best of European and American designs, the Chinese-style substation integrates HV switchgear, LV distribution panel and oil-immersed transformer in a weatherproof enclosure. The transformer is mounted outside the switchgear compartments for efficient cooling. Optimized for PV and wind power, it supports large capacities and meets the latest energy efficiency standards.

Four-part structure — HV switchgear, LV panel, transformer and housing, factory-assembled
External transformer — radiators exposed for natural cooling; forced ventilation available
Five-prevention protection — complete control, protection, live-display and lighting systems
New-energy ready — up to 12000 kVA

Item	35 kV System	10 kV System
System voltage	35 kV	10 kV
Max. operating voltage	40.5 kV	12 kV
HV rated voltage	37 / 36.75 kV	10.5 kV
LV rated voltage	0.69 / 0.95 / 1.14 kV (wind) · 0.8 kV (PV)	same
Rated frequency	50 Hz	50 Hz
Energy efficiency	Meets latest standard	Meets latest standard
