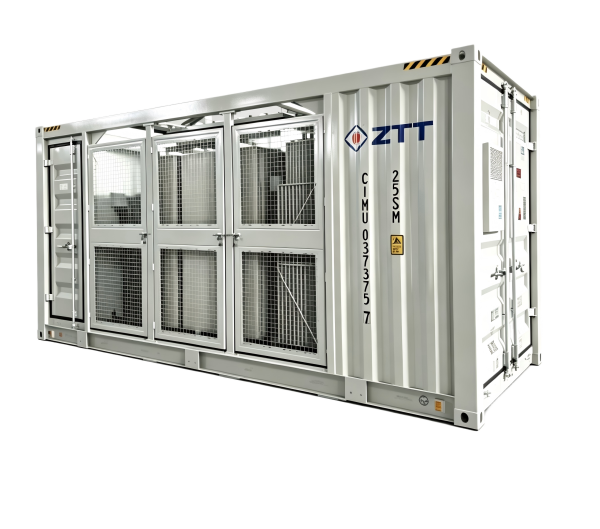

The container-type compact substation is a dedicated power distribution unit for wind and solar farms. It steps up the low-voltage output from inverters to 40.5 kV for grid connection. Housed in a standard shipping-container enclosure, it offers modular design, small footprint and easy on-site installation — ideal for large-scale renewable energy projects.
| Item | Parameter |
|---|---|
| Rated capacity | Dry: ≤ 6300 kVA · Oil: ≤ 9000 kVA |
| HV voltage | ≤ 40.5 kV |
| LV voltage | Wind: ≤ 1.14 kV · Solar: ≤ 0.8 kV |
| Frequency | 50 / 60 Hz |
| Enclosure material | Stainless steel / galvanized steel / cold-rolled steel (≤ 2.5 mm) |
| Protection class | IP54 |
| Transformer type | Solar: dry-type (oil-type optional) · Cooling: AN/AF (dry), ONAN (oil) |
| Tap changer | ± 2 × 2.5% |
| Noise level | ≤ 60 dB |
| HV switch | RMU, SF6 / dry air, rated current ≤ 630 A |
| Short-time withstand current | 25 / 31.5 kA (2s / 3s / 4s) |
| LV switch | Fixed type, main busbar ≤ 6300 A, 6–16 outgoing circuits |
| Operating control | Manual / motorized / remote |
| Ambient temperature | −30 °C ~ +45 °C |
| Altitude | ≤ 1000 m (plateau design available) |
Wind farms · solar PV plants · PV-wind hybrid · fishing-solar complementary · agricultural-solar complementary · energy storage (BESS) systems · large-scale new energy grid-connected projects
