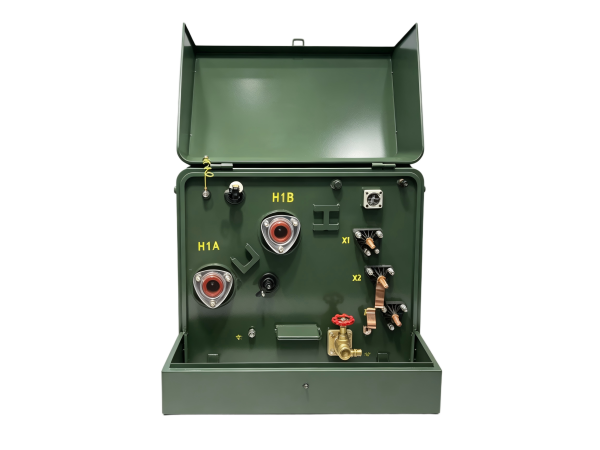

A single-phase American-style pad-mounted transformer with a clamshell (flip-top) cabinet design for easy access to connections. Highly versatile, it supports various protection and switching configurations while meeting the reliability and safety requirements of any distribution system.
| Item | Parameter |
|---|---|
| Capacity range | 15 – 500 kVA (typical: 10 – 250 kVA) |
| HV voltage | 2.4 – 34.5 kV (7.2 / 12.47 / 13.2 / 14.4 kV typical) |
| LV voltage | 120 / 240 V (up to 690 V) |
| Tap range | ± 2 × 2.5% |
| Corrosion rating | C5-M / C5-H |
| Standard | ANSI / IEEE |
| Installation | Pad-mounted, outdoor |
Rural & residential distribution (North & South America) · urban grid renovation · commercial buildings · light industrial power · outdoor pole/pad-mounted supply · ANSI-standard distribution networks
