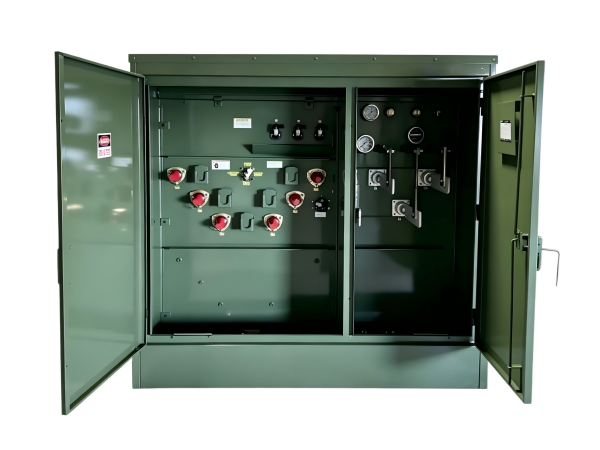

A three-phase American-style pad-mounted transformer, oil-filled with 65 °C temperature rise. Designed and manufactured in compliance with ANSI / IEEE / DOE 2016 standards, it delivers reliable, long-life outdoor distribution performance. UL listed and ISO 9001 certified.
| Item | Parameter |
|---|---|
| Rated capacity | 75 – 3750 kVA (up to 5000 kVA) |
| HV voltage | 2.4 – 35 kV (150 kV BIL) |
| LV voltage | Up to 690 V (110 / 120 / 208 / 240 / 277 / 347 / 415 / 416 / 480 / 600 / 690 V) |
| Tap range | ± 2 × 2.5% |
| Vector group | Ynyn0 / Dyn1 |
| Cooling type | Oil-filled (ONAN) |
| Temperature rise | 65 °C |
| Protection class | IP54 |
| Standards | ANSI / IEEE / DOE 2016 |
| Certification | UL Listed · ISO 9001 |
| Installation | Pad-mounted, outdoor |
Urban & rural distribution networks · commercial buildings · industrial plants · data centers · commercial & light industrial power · ANSI-standard markets (North & South America) · grid secondary substations
