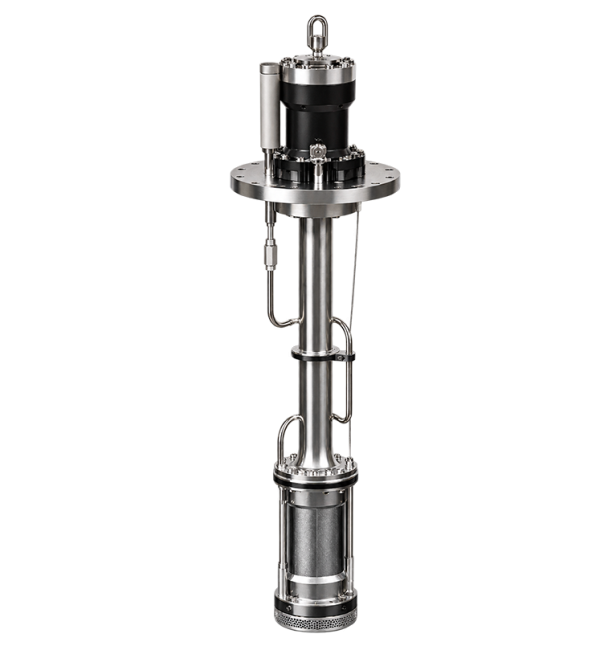

Liquid-hydrogen Pump

Innovative technology for high-efficiency, large-displacement liquid hydrogen booster pump – the world’s first submersible hydraulically driven liquid hydrogen booster pump

Product Details

Under the guidance of the North America Center of the National Institute of Clean-and-Low-Carbon Energy , we have made breakthroughs in the design and processing of low-temperature hydrogen embrittlement resistant materials as well as high-efficiency insulation and thermal isolation technologies, and developed submersible high-pressure liquid hydrogen pump and refueling system. The system has accumulated nearly 10 tons of liquid hydrogen refueled, completed more than 43,000 pump strokes, and been started over 1,350 times, including 97 consecutive refueling events for 2 to 10 vehicles each.

Product Advantages

Reversing technology of the efficient and precise hydraulically driven system, ensuring smooth piston operation.
Material heat treatment process suitable for extremely low-temperature environments, resolving material consistency issues at cryogenic temperatures.
Piston sealing technology and sealing materials for extremely low-temperature environments, ensuring no leakage of liquid hydrogen during compression.
Assembly technology for precision components suitable for extremely low-temperature environments, ensuring normal operation of the liquid hydrogen pump.

Liquid-hydrogen pump	Parameter
Output pressure (Mpa)	45	90
Design flow (Kg/h)	240	120
Piston diameter (mm)	124	85
Piston stroke (mm)	255	255
Drive modes	Hydraulic Drive	Hydraulic Drive
Location of the pump	Submerged	Submerged
Type of pump	Vertical, Single-acting Reciprocating	Vertical, Single-acting Reciprocating
Energy consumption (kWh/kg H2)	0.2-0.3	0.4-0.5
Weight(t)	About 1.5	About 1.5

– Liquid hydrogen transfer, pressurization and loading operations
– Liquid hydrogen storage terminals and cryogenic hydrogen handling facilities
– High-flow liquid hydrogen refueling stations
– Liquid hydrogen supply for heavy-duty transport and high-demand mobility applications
– Hydrogen liquefaction, storage and distribution projects

Let’s Build The Future with Innovation

Please provide the following details to help our sales representatives better understand your needs and get In touch with you as soon as possible.

Liquid-hydrogen Pump

Related Products

Related products

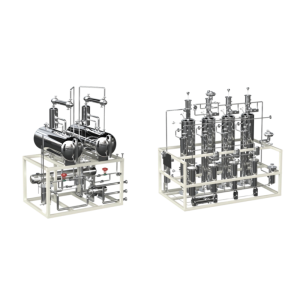

Separation & Purification System

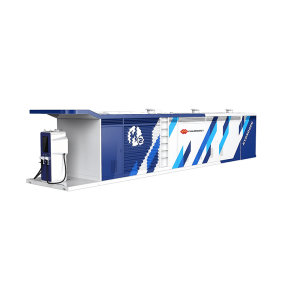

Integrated Hydrogen Refueling Station

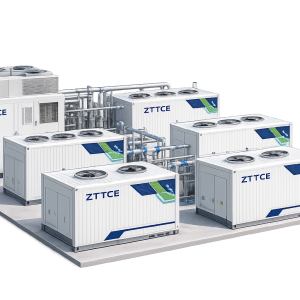

Containerized Hydrogen Production Station

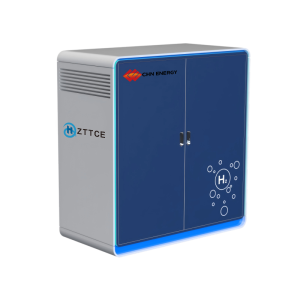

Sequence Control Cabinet
