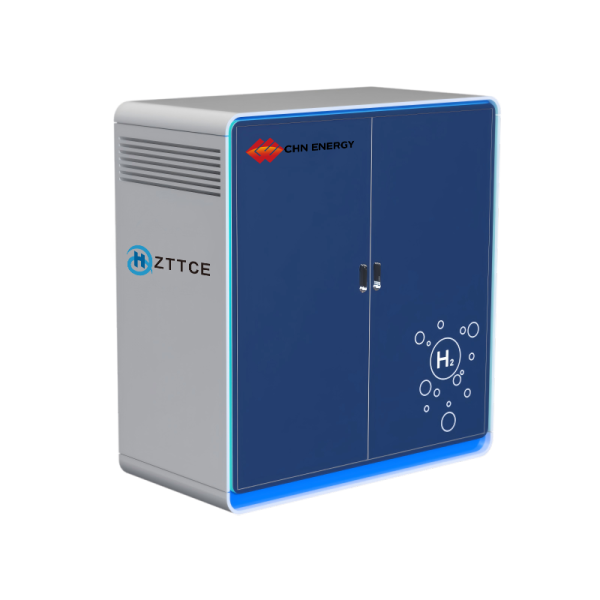

Sequence Control Cabinet

A fully automatic, modular sequence control cabinet featuring three-stage refueling, high-efficiency gas extraction, and independent operation. Lightweight, compact, and user-friendly.

Product  Details

This sequence control cabinet enables three-stage pressure refueling to maximize gas extraction efficiency from cascade storage. It operates independently with full automation, requiring minimal user intervention. The modular, lightweight design saves space and simplifies integration into hydrogen refueling stations.

Product Advantages

Three-stage refueling for high-efficiency gas extraction
Fully automatic with independent operation
Lightweight, compact, and modular design
User-friendly interface

Sequence Control Cabinet		Parameter
Applicable gas		Hydrogen
Pipeline material		SS316L
Pressure	Design Pressure	49.5 MPa
	Rated Working Pressure	45 MPa
Temperature	Design Temperature	-20~60℃
	Ambient Temperature	-20℃≤T. A.≤+40℃
Relative Humidity		20%~95%
Connection Method		C&T

– Automated control of hydrogen storage cascades and compression systems
– Hydrogen tube trailer unloading and high-pressure gas distribution
– Sequential filling and pressure management for hydrogen refueling stations
– Safety interlocking, emergency shutdown and process monitoring
– Integrated control for hydrogen production, storage, compression and dispensing systems

Let’s Build The Future with Innovation

Please provide the following details to help our sales representatives better understand your needs and get In touch with you as soon as possible.

Sequence Control Cabinet

Related Products

Related products

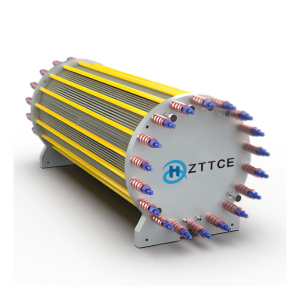

Alkaline Water Electrolyzer

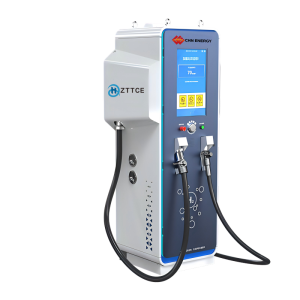

Hydrogen Dispenser

Integrated Hydrogen Refueling Station

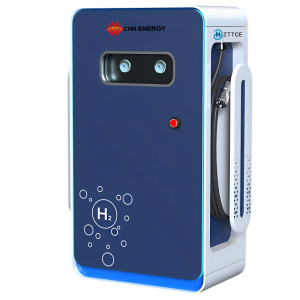

Gas Unloading Pole
