Separation & Purification System

Our modular purification process with independent intellectual property rights can achieve hydrogen purity exceeding 99.999%.

Product Details

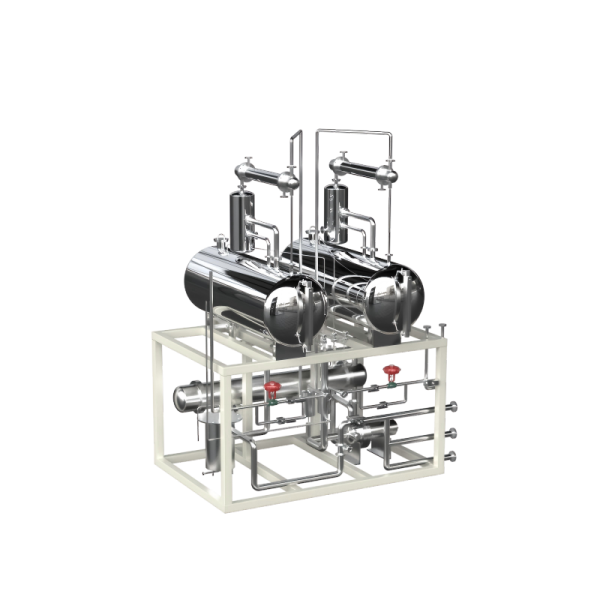

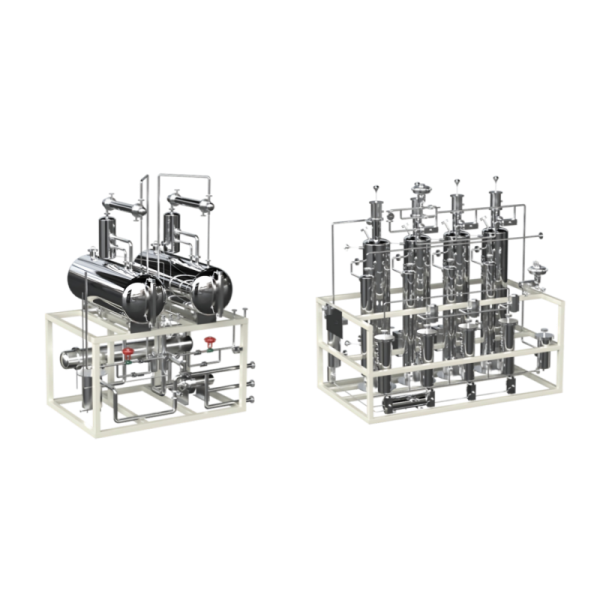

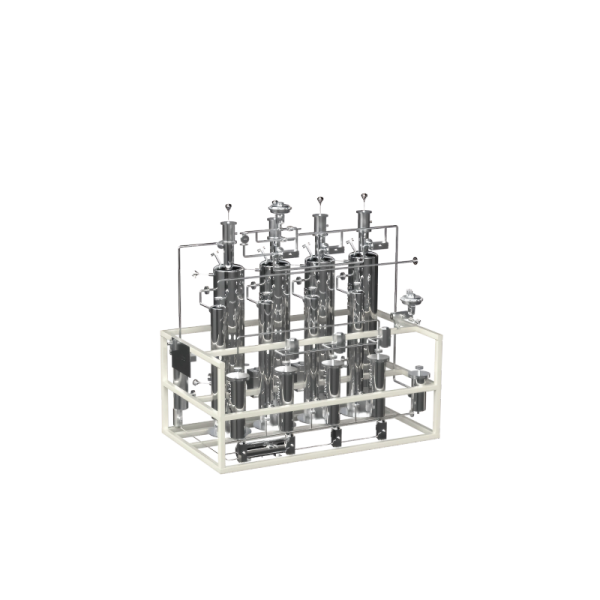

The hydrogen separation and purification system is a comprehensive equipment to complete the gas-liquid separation of hydrogen-alkali mixture from the electrolyzer, and further purification through deoxidizer, cooler, dryer and filter, featuring automatic control, alarm and interlock, with no hydrogen venting during regeneration, which is suitable for hydrogen production and fuel cell applications.

Product Advantages

High efficiency CO directional removal material, trace CO capacity up to 8.5ml /g, more than 10 times the amount of existing adsorbent, service life≥5 years
The modular purification process with independent intellectual property rights, unit and system optimization for coal-based by-product gas, H2 yield can be increased by 4.5%
Preparation of 1000Nm3/h modular purification process package, hydrogen yield ≥80%; FCV H2≥99.999%, CO≤0.2ppm

Model		ZCZ10	ZCZ50	ZCZ100	ZCZ200	ZCZ500	ZCZ1500	ZCZ3000	ZCZ6000
Capacity(m³/h)		10	50	100	200	500	1500	3000	6000
Working pressure (MPa)		1.6-3.2	0.8-1.6	0.8-1.6	0.8-1.6	0.8-1.6	0.8-1.6	0.8-1.6	0.8-1.6
Operating temperature	Deoxygenation(℃)	80-100	80-100	80-100	80-100	80-100	80-100	80-100	80-100
	Drying(℃)	10	10	10	10	10	10	10	10
	Regeneration(℃)	250	250	250	250	250	250	250	250
Cooling water consumption（ t/h）		1.5	1.5	3	4	6	18	35	70
Power consumption( KW)		3	6	9	18	24	72	120	210
Meter gas consumption(m³/h)		2	2	3	3	3	5	8	10
Product gas	Dew point	≤-70℃	≤-70℃	≤-70℃	≤-70℃	≤-70℃	≤-70℃	≤-70℃	≤-70℃
Product gas	Oxygen content（ppm)	≤2	≤2	≤2	≤2	≤2	≤2	≤2	≤2
Control mode		PLC fully automatic
Overall dimension		2×1×2.5	2×1.5×2.5	2.8×1.8×2.8	3.2×1.8×2.8	3.7×1.8×2.8	4.8×2.2×3.2	4.8×2.2×3.2	6.0×2.5×3.5
L×W×H (m)		2×1×2.5	2×1.5×2.5	2.8×1.8×2.8	3.2×1.8×2.8	3.7×1.8×2.8	4.8×2.2×3.2	4.8×2.2×3.2	6.0×2.5×3.5
Weight（t）		1	2	3	3.5	4.5	6	6.5	10

– Purification of hydrogen produced by water electrolysis for downstream use
– Hydrogen supply for green ammonia, green methanol and chemical synthesis
– High-purity hydrogen preparation for compression, storage and refueling systems
– Industrial hydrogen supply for refining, metallurgy and specialty chemical processes
– Integrated renewable hydrogen production projects requiring stable hydrogen quality
