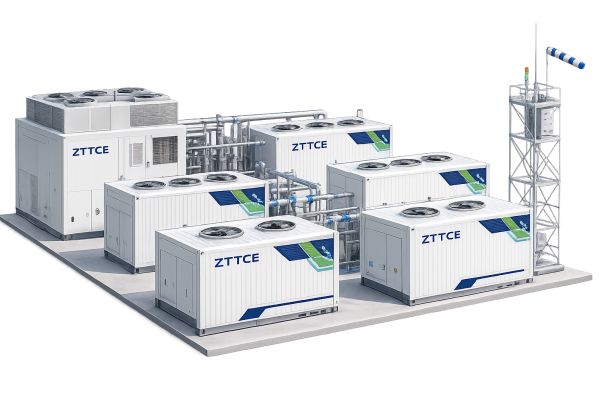

Our containerized hydrogen production station meets unified domestic and international standards, featuring easy transportation, short construction cycle, wide capacity range, and low construction cost.
| 500 Nm³/h Containerized Hydrogen Production Station | Length/mm | Width/mm | Height/mm | Weight/t | Remarks |
| Electrolyzer container | 6158 | 2438 | 3500 | 40 | The height of the box is 2891mm, and 3500mm is the height including the vent. |
| Seperation A container | 6158 | 2438 | 3500 | 25 | |
| Seperation A container | 6158 | 2438 | 2891 | 25 | |
| Purification container | 6158 | 2438 | 3500 | 30 | |
| Control cabinet and rectifier cabinet container | 6158 | 2438 | 3500 | 30 | |
| Chiller and water purifier container | 6158 | 2438 | 3500 | 35 |
| 1000 Nm³/h Containerized Hydrogen Production Station | Length/mm | Width/mm | Height/mm | Weight/t | Remarks |
| Electrolyzer container | 9125 | 3500 | 3500 | 80 | The height of the box is 2891 mm, and 3500 mm is the height including the vent. |
| Seperation A container | 12192 | 2438 | 3500 | 50 | |
| Seperation A container | 12192 | 2438 | 2891 | 20 | |
| Purification container | 12192 | 2438 | 3500 | 50 | |
| Control cabinet and rectifier cabinet container | 9125 | 3500 | 3500 | 60 | |
| Chiller and water purifier container | 12192 | 2438 | 3500 | 50 |
– Distributed on-site hydrogen production for industrial users
– Renewable hydrogen projects integrating solar, wind and energy storage
– Hydrogen supply for refueling stations, industrial parks and remote sites
– Green ammonia, green methanol and other Power-to-X demonstration projects
– Fast-deployment hydrogen production where site construction time and interface complexity must be minimized
