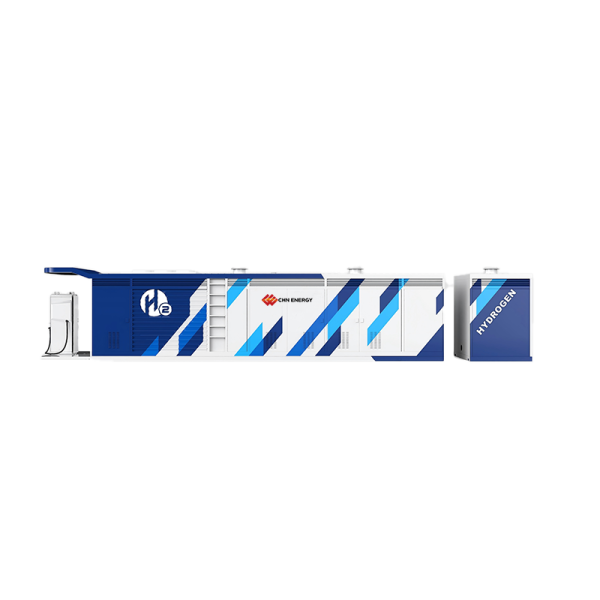

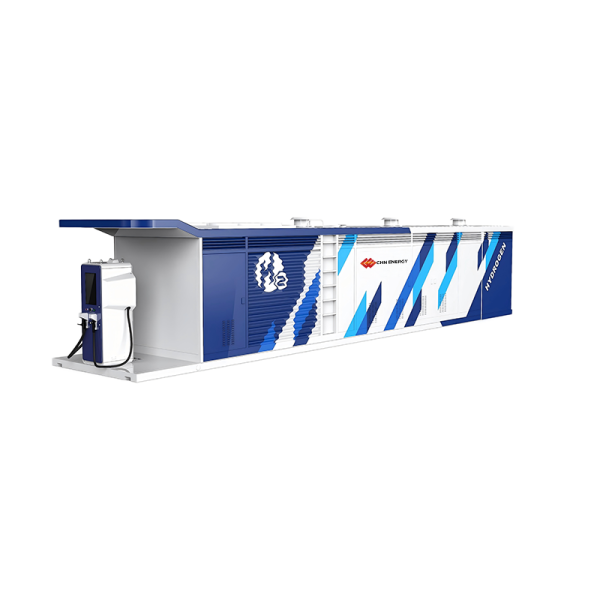

The first skid-mounted fully integrated hydrogen refueling station in China. Explosion-proof, integrated cold water system, SAE J2601 compliant with outlet temperature -33~-40°C, AI intelligent monitoring, and highly mobile for fast deployment.
Name | Technical parameter |
| Exhaust volum (Kg/12hr，12.5MPaG) | 260 |
Intake pressure(MPaG) | 5~20 (Before filtering) |
| Outlet pressure(MPaG，Max) | 90 |
Intake temperature (℃) | <45 (extreme) |
| Exhaust temperature(℃) | ≤40 (Compressor final outlet temperature) |
Hydrotreater Outlet temperature(℃) | -33~-40 |
| Total power (kW) | 60 |
Compressor type | Liquid drive oil-free piston type |
| Cooling mode | Water cooling |
Explosion-proof rating | ExdII CT4 |
| Service ambient temperature (℃) | -25~50 （Out of range need to be stated，we provide customized services.) |
Overall dimension (mm) | 15000×3000×4000 |
– Rapid deployment of hydrogen refueling infrastructure
– Fleet refueling for buses, trucks, logistics vehicles and municipal vehicles
– Temporary, transitional or expandable hydrogen refueling sites
– Hydrogen mobility applications at ports, industrial parks, mines and transport hubs
– Integrated hydrogen production, storage and refueling projects
