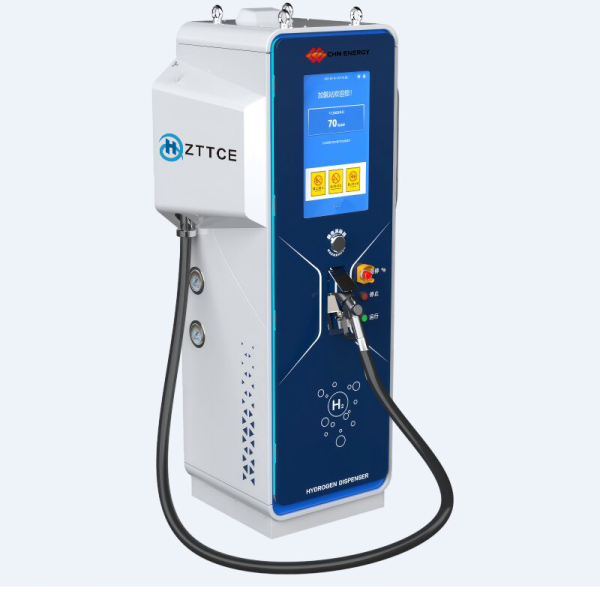

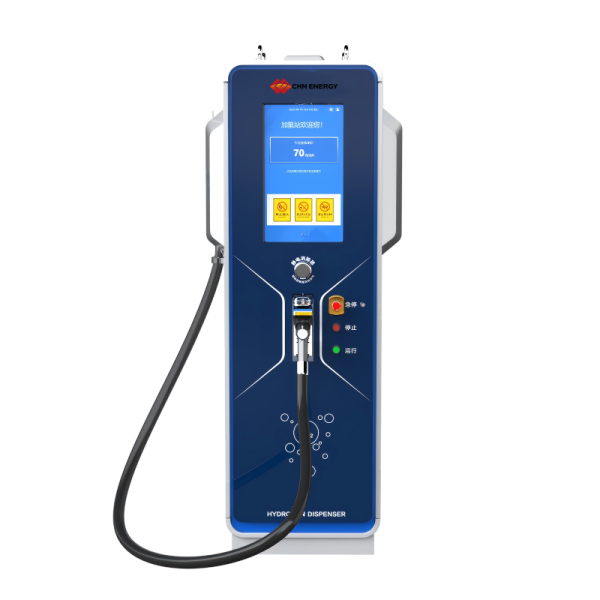

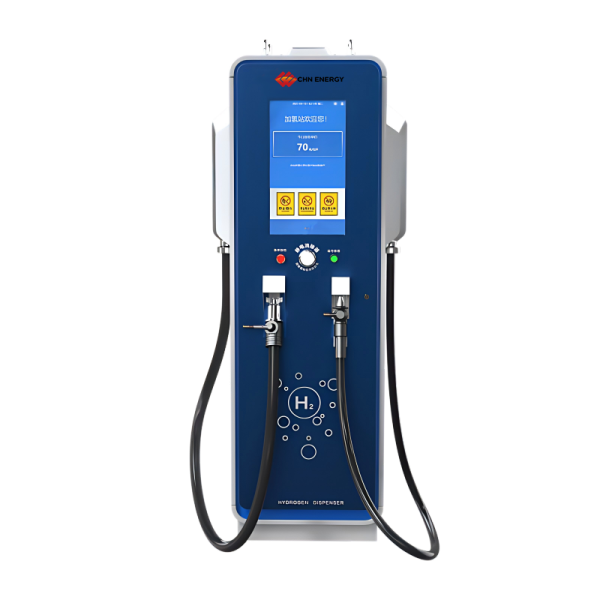

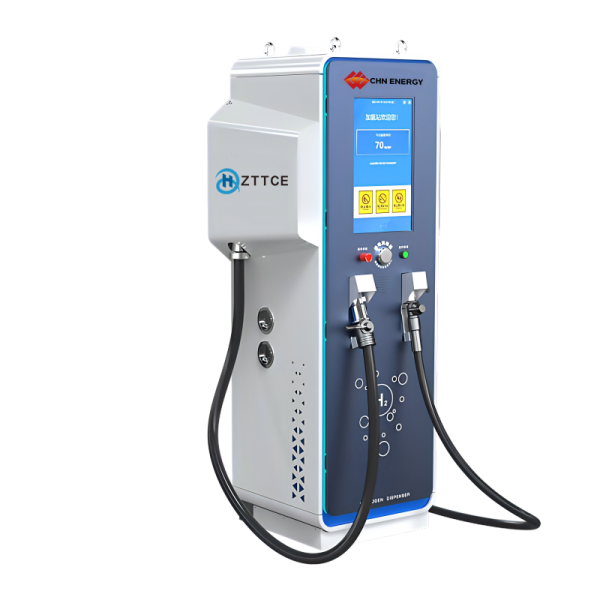

Hydrogen Dispenser

SAE J2601 & TÜV certified hydrogen dispenser with automatic flow control, safety protection, remote monitoring, smart self-check, and large data storage. Listed on NEA First Set (2021) and SASAC S&T Catalogue (2022).

Product Details

Our hydrogen dispenser complies with the SAE J2601 filling protocol and is TÜV certified. It features automatic flow control for optimal fill rate and cylinder temperature safety, integrated pressure limiting, safety relief, and emergency cut-off functions. With remote communication, smart self-check (tank volume measurement error <10%), and large data storage (up to 3,000 recent records, or three years with an upper computer), it has been recognized on the NEA’s First Set Major Equipment List (2021) and SASAC’s Recommended Catalogue of S&T Innovations (2022).

Product Advantages

SAE J2601 compliant & TÜV certified – meets international fueling protocol and safety standards.
Intelligent flow control – automatically adjusts hydrogenation rate to maximize flow while maintaining safe cylinder temperature rise.
Multi-layer safety protection – includes gas pressure limiting, safe pressure relief, and emergency cut-off.
Remote monitoring & network management – communication interface enables real‑time status check and data management.
Smart self-check with high accuracy – tank volume measurement error <10%, with process leakage safety alarm.
Large data storage – stores up to 3,000 latest fueling records, or three years of data with an upper computer.

H2 Dispenser		Parameter
Rated working pressure		35 MPa	70 MPa
Measuring accuracy (flowmeter)		±1% (RHEONIK Coriolis mass flowmeter)
Maximum working pressure		43.8 MPa	87.5 MPa
Point-of-Sale (POS) interface		IFSF 2.32 and Gilbarco Two-Wire Protocol
Inlet connection		Hydrogen Connection=9/16”C&T MP
Explosion-proof grade		Ex db eb ib mb IIC T4 Gb (Corresponding to IEC60079）
Ambient temperature		-20℃ ~ + 50℃
Relative humidity		14% ~ 100%
Weight		580 Kg	610 Kg
Nozzle Design		WEH TK16/TK25	WEH TK17
Protection Rating		IP55
Size	Length	730 mm
	Width	970 mm
	Height	2100 mm
Flow range		0.18 Kg/min to 7.2 Kg/min

– 35 MPa and 70 MPa hydrogen refueling for fuel-cell vehicles
– Passenger cars, buses, trucks, logistics vehicles and fleet operations
– Hydrogen refueling stations for ports, mines, industrial parks and logistics hubs
– Depot refueling for buses, heavy-duty transport and captive fleets
– Integrated hydrogen production and refueling projects
