Stock Code: SH600522

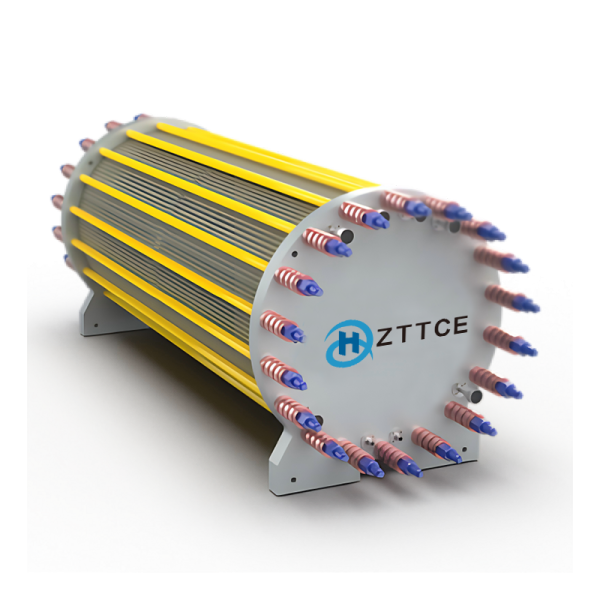

With the industry-leading energy consumption, our latest electrolyzers are based on the technological innovation and development of National Institute of Clean-and-Low-Carbon Energy (NICE), and have the characteristics of lower energy consumption, more application scenarios, high degree of automation, safe and reliable operation and the 1.8V@0.5A/cm² chamber voltage.
| Type | ZDQ-10 | ZDQ-50 | ZDQ-100 | ZDQ-200 | ZDQ-300 | ZDQ-400 | ZDQ-500 | ZDQ-800 | ZDQ-1000 |
| Hydrogen output（Nm³/h） | 10 | 50 | 100 | 200 | 300 | 400 | 500 | 800 | 1000 |
| Cell pressure（MPaG） | 1.6/3.2（adjustable） | ||||||||
| Cell temperature（℃） | 95±2 | ||||||||
| Dc power consumption（kWh/Nm³ H2） | 3.98 | ||||||||
| System AC power consumption（kWh/Nm³ H2） | 4.9-5.1 | ||||||||
| System efficiency（%） | 70-80 | ||||||||
| Load range（%） | 20-120 | ||||||||
| Hydrogen purity（%） | Before purification：99.8；after purification：99.999 | ||||||||
| Oxygen purity（%） | ≥98.5 | ||||||||
| Warm start time | <30 min | ||||||||
| Cold start time | 1~2 h | ||||||||
| Floor area（m²） | 60 | 95 | 190~270 | 210~300 | 230~315 | 250~340 | 250~350 | 340~480 | 450~640 |
| Weight（Kg） | 1500 | 6500 | 11000 | 16500 | 24500 | 29500 | 34000 | 40000 | 46500 |
– Renewable hydrogen production powered by wind, solar and other low-carbon electricity sources
– Green steelmaking, including hydrogen-based direct reduction and protective atmospheres for metal processing
– Green ammonia, green methanol and other Power-to-X projects
– Refining, chemical processing and industrial hydrogen supply
– Large-scale hydrogen energy storage and grid-balancing applications
