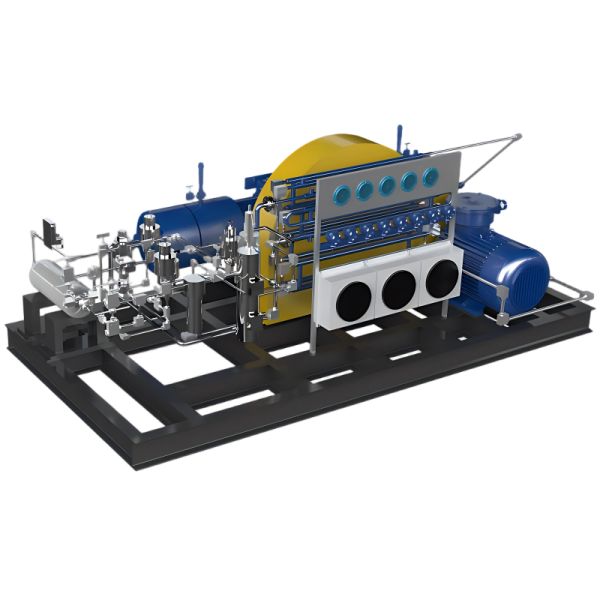

Our diaphragm compressor is built on precision-based design methodology, integrating advanced multi-physics simulation and surface treatment technologies. It delivers a domestic-leading outlet pressure of 87.5 MPa and a displacement of 500 Nm³/h at 12 MPa inlet, ensuring reliable, oil-free compression for high-pressure hydrogen applications.
| Application scenarioParameter | 45 MPa Hydrogenation station | 90 MPa Hydrogenation station | Hydrogen filling tank truck | Hydrogen filled bottle | High-pressure hydrogen transfer |
| Intake pressure (MPa) | 3~20 | 10~30 | 0.8~3 | 0.1~3 | 0.8~3 |
| Exhaust pressure (MPa) | 45 | 90 | 20~22 | 15~20 | 5~20 |
| Exhaust volume (Nm³/h) | 200~2000 | 100~1000 | 300~2000 | 10~800 | 100~1500 |
| Compression series | 1~2 | 1~2 | 1~3 | 1~2 | 1~2 |
| Motor power (kW) | 30~200 | 30~185 | 75~315 | 3~160 | 22~200 |
– Hydrogen compression for storage, transportation and end-use applications
– High-pressure hydrogen supply for 35 MPa and 70 MPa refueling stations
– Tube trailer filling, unloading and pressure matching
– Hydrogen storage cascade charging and sequential control systems
– Industrial hydrogen delivery for chemical, refining and energy projects
Please provide the following details to help our sales representatives better understand your needs and get In touch with you as soon as possible.
