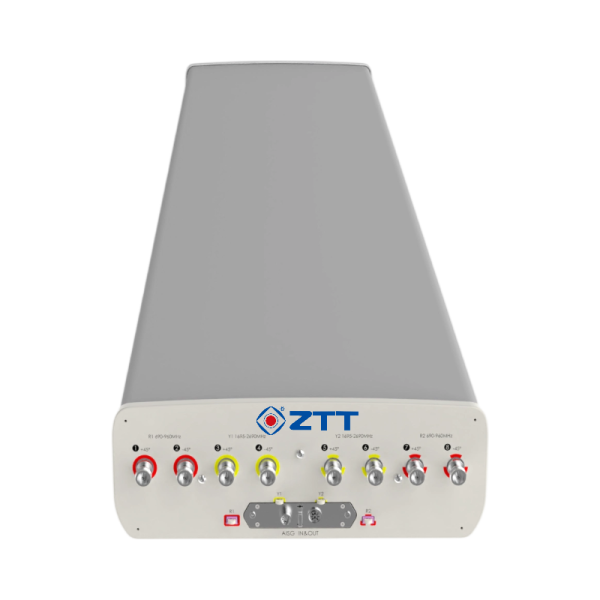

Green Antenna HBZ44K651721

Electrical Specifications

Description

8-port Sector Antenna,

2×690-960&2×1695-2690MHz,65Deg,

17&20.5dBi,Integrated RET

ZTT Product Code

HBZ44K65172121

Frequency Range

MHz

2×690-960(R1/R2)

Frequency Band

MHz

690-806

790-894

880-960

Gain Over All Tilts

dBi

15.6±0.6

16.0±0.4

16.3±0.4

Gain by Tilt Average Mid

dBi

15.6

16.0

16.4

Efficiency Average

%

80

78

77

Horizontal 3dB Beam Width

Deg

63±5

60±6

61±5

Vertical 3dB Beam Width

Deg

11.3±1.6

10.1±1

8.9±0.7

1st Upper Side Lobe

Suppression Above

Main Beam

dB

≥15

Front to Back Ratio

at 180Deg ±30Deg

dB

≥25

Cross Polar Ratio 0Deg

dB

≥15

Electrical Downtilt

Deg

2-12,Continuously adjustable

VSWR

/

≤1.5

Intraband Isolation

dB

≥25

Interband Isolation

dB

≥25

Intermodulation IM3

dBc

≤-153(2×43 dBm carrier)

Max. Power Per Port

Watt

350(at 50℃ ambient temperature)

Frequency Range

MHz

2×1695-2690(Y1/Y2)

Frequency Band

MHz

1695-1990

1920-2200

2300-2500

2490-2690

Gain Over All Tilts

dBi

19.3±0.5

19.7±0.6

20.0±0.5

20.1±0.7

Gain by Tilt Average Mid

dBi

19.2

19.7

20.0

20.2

Efficiency Average

%

80

78

79

76

Horizontal 3dB Beam Width

Deg

68±4

66±7

63±6

60±6

Vertical 3dB Beam Width

Deg

4.9±0.5

4.8±0.4

4.0±0.8

3.5±0.5

1st Upper Side Lobe

Suppression Above Main Beam

dB

≥15

Front to Back Ratio

at 180Deg ±30Deg

dB

≥25

Cross Polar Ratio 0Deg

dB

≥15

Electrical Downtilt

Deg

2-8,Continuously adjustable

VSWR

/

≤1.5

Intraband Isolation

dB

≥25

Interband Isolation

dB

≥25

Intermodulation IM3

dBc

≤-153(2×43 dBc carrier)

Max. Power Per Port

Watt

250(at 50℃ ambient temperature)

Mechanical Specifications

Antenna Dimensions

mm

2100×449×150

Antenna Net Weight

kg

27.2

Packing Dimensions

mm

2325×515×222

Antenna Gross Weight

kg

40.5

Connector Type

/

8×4.3-10 Female

Connector Position

/

Bottom

Radiator Material

/

Aluminum

Radome Material / Color

/

Fiberglass / Light Grey RAL7035

Reflector Material

/

Aluminum

Storage Temperature

°C

-40 to +65

Operating Temperature

°C

-40 to +65

Humidity

/

5% to 95%

Max. operational Wind Speed

km/h

200

Wind Load @Rated Wind Front

N

2110

Wind Load @Rated Wind Side

N

292

Wind Load @Rated Wind Rear

N

2365

Lightning Protection

/

DC ground

Accessories

Model

/

HZJ37N

Weight

Kg

5.7

Downtilt Kit (mechanical)

Deg

0-12

Mounting Accessories (clamp)

/

Included with antenna

Mounting Pipe Diameter

mm

50-115

Internal RET Specifications

RCU (remote control unit)

/

Replaceable RET

(can be exchangable without exchanging antenna)

AISG2.0 /3GPP

Input Voltage Range

V

10-30 DC

Power Consumption

W

< 10 (motor activated , single RET)

< 2 (stand by, single RET)

Adjustment Time (full range)

s

< 120 (typically, depending on antenna type)

RET Connector

/

1 pair of AISG 5 pin male & female

Pin Assignment According AISG

/

5-pin circular connector conforming to IEC 60130-9 – Ed. 3.0

Lightning Protection

kA

5 (8/20 μs differential mode), 8 (8/20 μs common mode)

Reference Pattern

FDD:690-960MHz

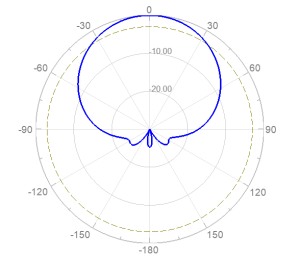

Horizontal Pattern

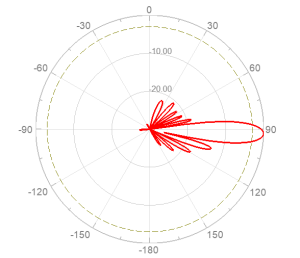

Vertical Pattern

FDD:1695-2690MHz

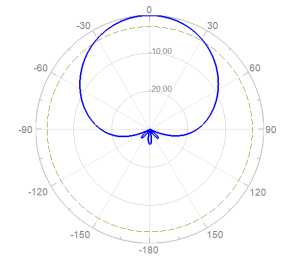

Horizontal Pattern

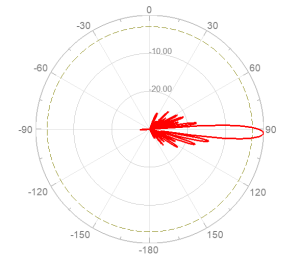

Vertical Pattern

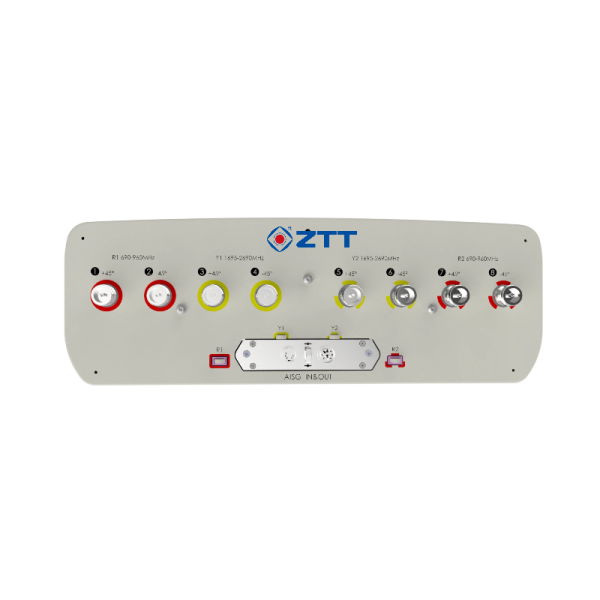

Layout of Array

Array

Connector

Frequency(MHz)

RET Serial

R1

1-2

690-960

ZTR1…01

R2

3-4

690-960

ZTR2…02

Y1

5-6

1695-2690

ZTY1…03

Y2

7-8

1695-2690

ZTY2…04

All data are based on NGMN recommendations on Base Station Antenna Standards (BASTA V13.0).
