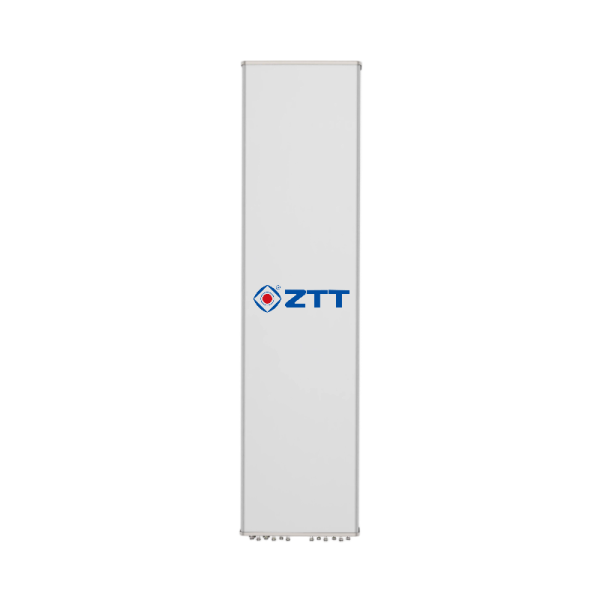

Green Antenna HBH448V651718

Description

16-port Sector Antenna,
FDD 2×690-960&2×1695-2690MHz,17&18dBi,
TDD 4×3300-3800MHz,Integrated RET

ZTT Product Code

HBH448V651718

Frequency Range

MHz

FDD:2×690-960(R1/R2)

Frequency Band

MHz

690-806

790-894

880-960

Gain Over All Tilts

dBi

15.6±0.6

15.8±0.4

16.2±0.4

Gain by Tilt Average Mid

dBi

15.7

15.9

16.3

Efficiency Average

%

81

77

76

Horizontal 3dB Beam Width

Deg

60±5

59±6

61±5

Vertical 3dB Beam Width

Deg

11.3±2.3

10.1±1

8.9±0.8

1st Upper Side Lobe

Suppression Above Main Beam

dB

≥15

Front to Back Ratio

at 180Deg ±30Deg

dB

≥23

≥24

≥25

Cross Polar Ratio 0Deg

dB

≥15

Electrical Downtilt

Deg

2-12,Continuously adjustable

VSWR

/

≤1.5

Intraband Isolation

dB

≥25

Interband Isolation

dB

≥25

Intermodulation IM3

dBc

≤-153(2×43 dBm carrier)

Max. Power Per Port

Watt

250(at 50℃ ambient temperature)

Frequency Range

MHz

FDD:2×1695-2690(Y1/Y2)

Frequency Band

MHz

1695-1990

1920–2200

2300-2500

2490-2690

Gain Over All Tilts

dBi

16.4±0.4

16.8±0.7

17.1±0.6

17.2±0.8

Gain by Tilt Average Mid

dBi

16.3

16.8

17.1

17.3

Efficiency Average

%

80

78

76

75

Horizontal 3dB Beam Width

Deg

65±7

64±6

57±6

58±7

Vertical 3dB Beam Width

Deg

8.5±0.6

7.5±0.6

6.6±0.4

6.0±0.4

1st Upper Side Lobe

Suppression Above Main Beam

dB

≥15

Front to Back Ratio

at 180Deg ±30Deg

dB

≥25

Cross Polar Ratio 0Deg

dB

≥17

Electrical Downtilt

Deg

2-12,Continuously adjustable

VSWR

/

≤1.5

Intraband Isolation

dB

≥25

Interband Isolation

dB

≥25

Intermodulation IM3

dBc

≤-153(2×43 dBc carrier)

Max. Power Per Port

Watt

250(at 50℃ ambient temperature)

Electrical Specifications

Frequency Range

MHz

TDD:4×3300-3800(Bottom:P1)

Frequency Band

MHz

3300-3600

3600-3800

Coupling Factor between

Calibration Port and Each Antenna Port

dB

-26±2

Max.Amplitude Tolerance

from Calibration Port to Input Ports

dB

≤0.9

Max.Phase Tolerance from

Calibration Port to Input Ports

Deg

≤8.0

Isolation between same Polarization ports

dB

≥20

Isolation between different Polarization ports

dB

≥23

VSWR

/

≤1.5

Electrical Downtilt

Deg

2-12,Continuously adjustable

Maximum Power

Watt

150(at 50℃ ambient temperature)

Single Column Beam

Gain Over All Tilts

dBi

15.0±0.3

15.2±0.4

Gain by Tilt Average Mid

dBi

15.1

15.3

Efficiency Average

%

66

65

Horizontal 3dB Beam Width

Deg

90±10

85±10

Vertical 3dB Beam Width

Deg

6.8±0.7

5.8±0.6

1st Upper Side Lobe

Suppression Above Main Beam

dB

≥15

Front to Back Ratio

at 180Deg ±30Deg

dB

≥23

Cross-Polar Ratio 0Deg

dB

≥15

Broadcast Beam

Gain Over All Tilts

Deg

15.9±0.6

16.1±0.5

Gain by Tilt Average Mid

dBi

16.0

16.2

Horizontal 3dB Beam Width

Deg

65±7

60±6

Vertical 3dB Beam Width

Deg

6.7±0.8

5.7±0.7

1st Upper Side Lobe

Suppression Above Main Beam

dB

≥15

Front to Back Ratio

at 180Deg ±30Deg

dB

≥25

Cross-Polar Ratio 0Deg

dB

≥15

Service Beam

0°Beam Gain Over All Tilts

dBi

20.0±0.6

20.2±0.5

0°Beam Gain by Tilt Average Mid

dBi

20.0

20.2

0°Beam Horizontal 3dB Beam Width

Deg

27±3

26±3

0°Horizontal Sidelobe Suppression

dB

≥12

0°Beam Front to Back Ratio

dB

≥28

0°Beam Cross-Polar Ratio 0Deg

dB

≥20

Mechanical Specifications

Antenna Dimensions

mm

2360×498×186

Antenna Net Weight

kg

39.8

Packing Dimensions

mm

2585×550×258

Antenna Gross Weight

kg

52.6

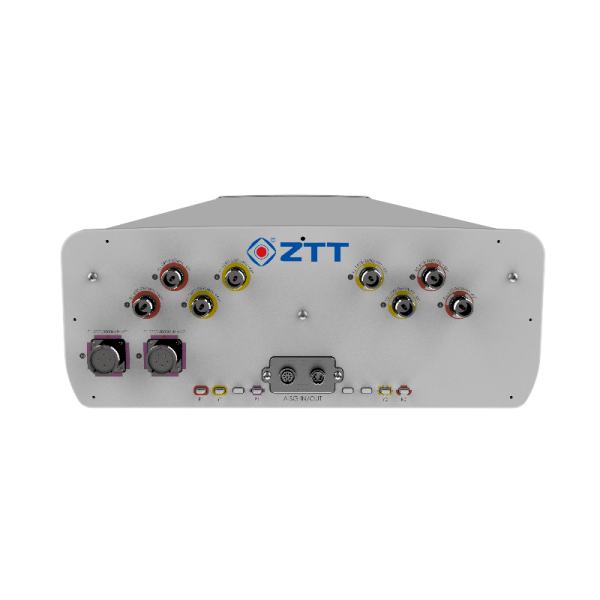

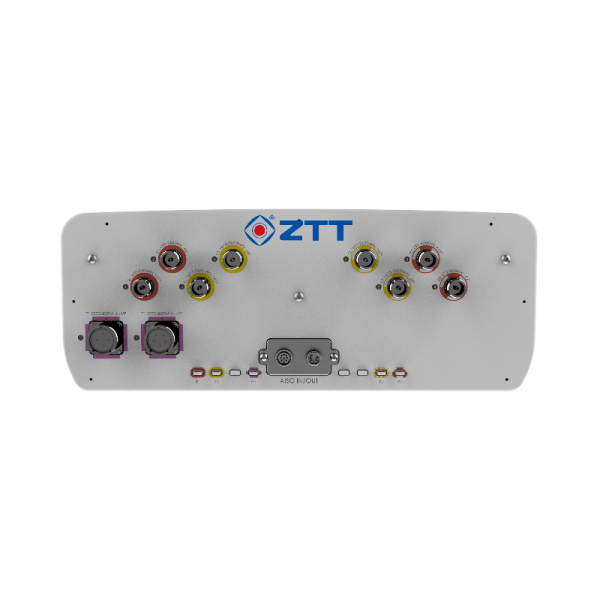

Connector Type

/

8×4.3-10 Female,1×MQ4&MQ5

Connector Position

/

Bottom

Radiator Material

/

Low loss circuit broad

Radome Material / Color

/

Fiberglass / Light Grey RAL7035

Reflector Material

/

Aluminum

Storage Temperature

°C

-40 to +65

Operating Temperature

°C

-40 to +65

Humidity

/

5% to 95%

Max. operational Wind Speed

km/h

200

Wind Load @Rated Wind Front

N

2429

Wind Load @Rated Wind Side

N

388

Wind Load @Rated Wind Rear

N

2722

Lightning Protection

/

DC ground

Accessories

Model

/

HZJ38N

Weight

Kg

7.0

Downtilt Kit (mechanical)

Deg

0-12

Mounting Accessories (clamp)

/

Included with antenna

Mounting Pipe Diameter

mm

50-115

Internal RET Specifications

RCU (remote control unit)

/

Replaceable RET

(can be exchangable without exchanging antenna)

AISG2.0 /3GPP

Input Voltage Range

V

10-30 DC

Power Consumption

W

< 10 (motor activated , single RET)

< 2 (stand by, single RET)

Adjustment Time (full range)

s

< 120 (typically, depending on antenna type)

RET Connector

/

1 pair of AISG 5 pin male & female

Pin Assignment According AISG

/

5-pin circular connector conforming to IEC 60130-9 – Ed. 3.0

Lightning Protection

kA

5 (8/20 μs differential mode), 8 (8/20 μs common mode)

Reference Pattern

FDD:690-960MHz

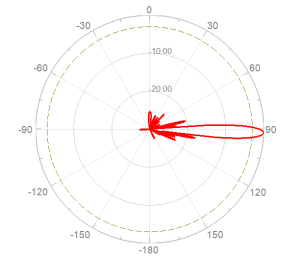

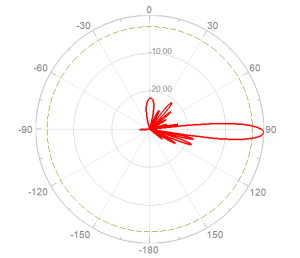

Horizontal Pattern

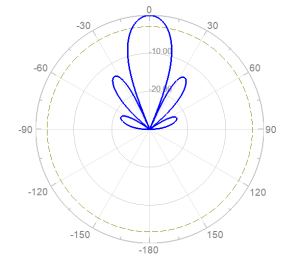

Vertical Pattern

FDD:1695-2690MHz

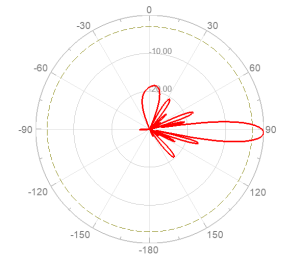

Horizontal Pattern

Vertical Pattern

TDD:3300-3800MHz

Single Column Beam

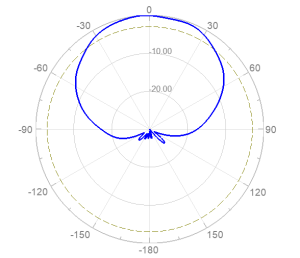

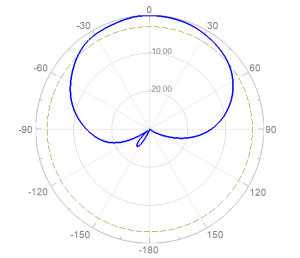

Horizontal Pattern

Vertical Pattern

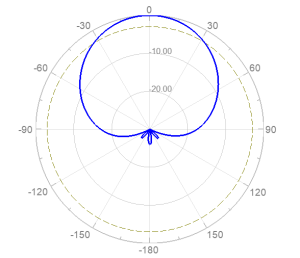

Broadcast Beam

0° Service Beam

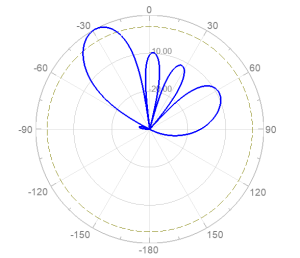

+30° Service Beam

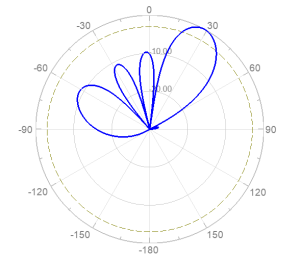

-30° Service Beam

Layout of Array

Array

Connector

Frequency(MHz)

RET Serial

R1

1-2

690-960

ZTR1…01

R2

3-4

690-960

ZTR2…02

Y1

5-6

1695-2690

ZTY1…03

Y2

7-8

1695-2690

ZTY2…04

P1

MQ4&MQ5

3300-3800

ZTP1…05

All data are based on NGMN recommendations on Base Station Antenna Standards (BASTA V13.0).
