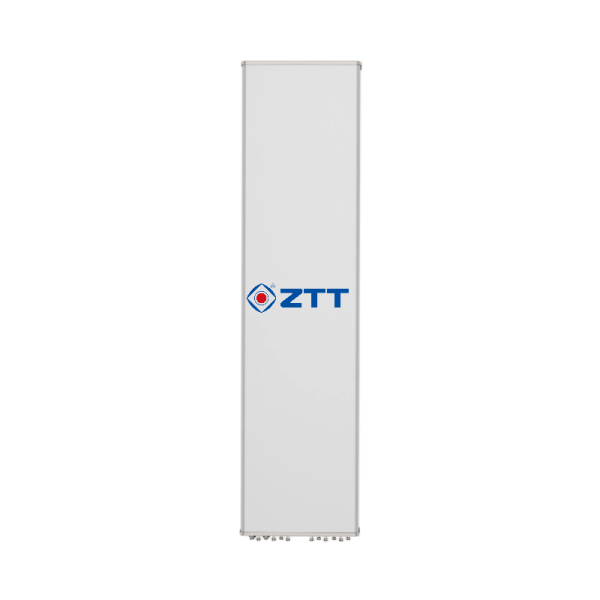

Green Antenna HBH448W651718

Electrical Specifications

Description

16-port Sector Antenna,

FDD:2×690-960&2×1695-2690MHz,65Deg,17&18dBi,

TDD:4×2300-2690MHz,90Deg,17dBi,Integrated RET

ZTT Product Code

HBH448W651718

Frequency Range

MHz

FDD:2×690-960(R1/R2)

Frequency Band

MHz

690-806

790-894

880-960

Gain Over All Tilts

dBi

15.4±0.5

15.8±0.6

16.2±0.3

Gain by Tilt Average Mid

dBi

15.4

15.9

16.3

Efficiency Average

%

82

79

78

Horizontal 3dB Beam Width

Deg

63±5

61±4

58±5

Vertical 3dB Beam Width

Deg

11.2±1.1

10.1±0.8

9.0±0.6

1st Upper Side Lobe

Suppression Above

Main Beam

dB

≥15

Front to Back Ratio

at 180Deg ±30Deg

dB

≥23

≥24

≥25

Cross Polar Ratio 0Deg

dB

≥15

Electrical Downtilt

Deg

2-12,Continuously adjustable

VSWR

/

≤1.5

Intraband Isolation

dB

≥25

Interband Isolation

dB

≥25

Intermodulation IM3

dBc

≤-153(2×43 dBm carrier)

Max. Power Per Port

Watt

250(at 50℃ ambient temperature)

Frequency Range

MHz

FDD:2×1695-2690(Y1/Y2)

Frequency Band

MHz

1695-1990

1920-2200

2300-2500

2490-2690

Gain Over All Tilts

dBi

16.2±0.6

16.4±0.7

17.0±0.5

17.1±0.9

Gain by Tilt Average Mid

dBi

16.3

16.5

17.0

17.2

Efficiency Average

%

81

79

78

76

Horizontal 3dB Beam Width

Deg

66±4

61±4

57±5

63±6

Vertical 3dB Beam Width

Deg

8.4±0.6

7.6±0.6

6.5±0.3

6.2±0.4

1st Upper Side Lobe

Suppression Above Main Beam

dB

≥15

Front to Back Ratio

at 180Deg ±30Deg

dB

≥24

Cross Polar Ratio 0Deg

dB

≥15

Electrical Downtilt

Deg

2-12,Continuously adjustable

VSWR

/

≤1.5

Intraband Isolation

dB

≥25

Interband Isolation

dB

≥25

Intermodulation IM3

dBc

≤-153(2×43 dBc carrier)

Max. Power Per Port

Watt

250(at 50℃ ambient temperature)

Frequency Range

MHz

TDD:4×2300-2690(Bottom:Y3)

Frequency Band

MHz

2300-2500

2490-2690

Coupling Factor between

Calibration Port and Each Antenna Port

dB

-26±2

Max.Amplitude Tolerance

from Calibration Port to Input Ports

dB

≤0.9

Max.Phase Tolerance from

Calibration Port to Input Ports

Deg

≤9.0

Isolation between same Polarization ports

dB

≥20

Isolation between different Polarization ports

dB

≥23

VSWR

/

≤1.5

Electrical Downtilt

Deg

2-12,Continuously adjustable

Maximum Power

Watt

150(at 50℃ ambient temperature)

Single Column Beam

Gain Over All Tilts

dBi

15.3±0.6

15.5±0.8

Gain by Tilt Average Mid

dBi

15.4

15.6

Efficiency Average

%

66

64

Horizontal 3dB Beam Width

Deg

92±10

83±9

Vertical 3dB Beam Width

Deg

6.8±0.3

6.4±0.3

1st Upper Side Lobe

Suppression Above Main Beam

dB

≥15

Front to Back Ratio

at 180Deg ±30Deg

dB

≥23

Cross-Polar Ratio 0Deg

dB

≥15

Broadcast Beam

Gain Over All Tilts

Deg

16.6±0.6

16.8±0.8

Gain by Tilt Average Mid

dBi

16.6

16.8

Horizontal 3dB Beam Width

Deg

64±5

62±6

Vertical 3dB Beam Width

Deg

6.8±0.3

6.2±0.3

1st Upper Side Lobe

Suppression Above Main Beam

dB

≥15

Front to Back Ratio

at 180Deg ±30Deg

dB

≥23

Cross-Polar Ratio 0Deg

dB

≥15

Service Beam

0°Beam Gain Over All Tilts

dBi

20.0±0.6

20.3±0.8

0°Beam Gain by Tilt Average Mid

dBi

20.1

20.4

0°Beam Horizontal 3dB Beam Width

Deg

26±2

24±2

0°Beam Front to Back Ratio

dB

≥28

0°Beam Cross-Polar Ratio 0Deg

dB

≥20

Mechanical Specifications

Antenna Dimensions

mm

2360×498×186

Antenna Net Weight

kg

48.9

Packing Dimensions

mm

2585×550×258

Antenna Gross Weight

kg

63.2

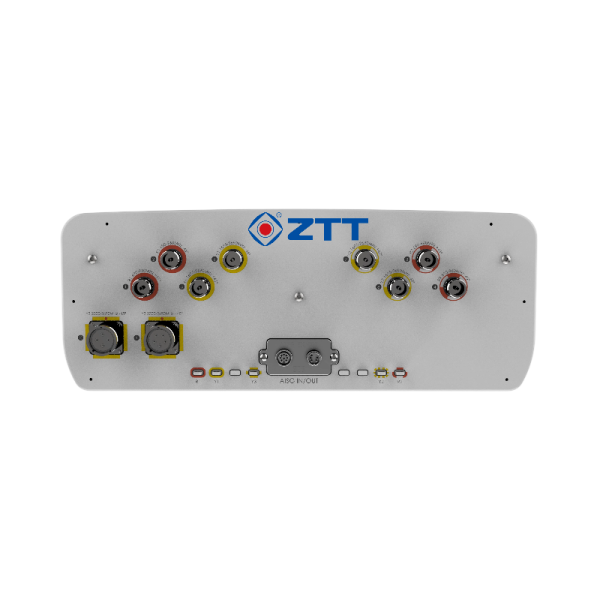

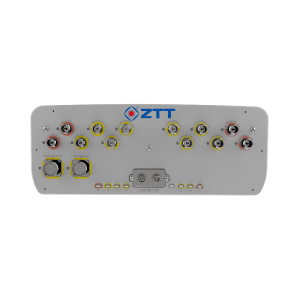

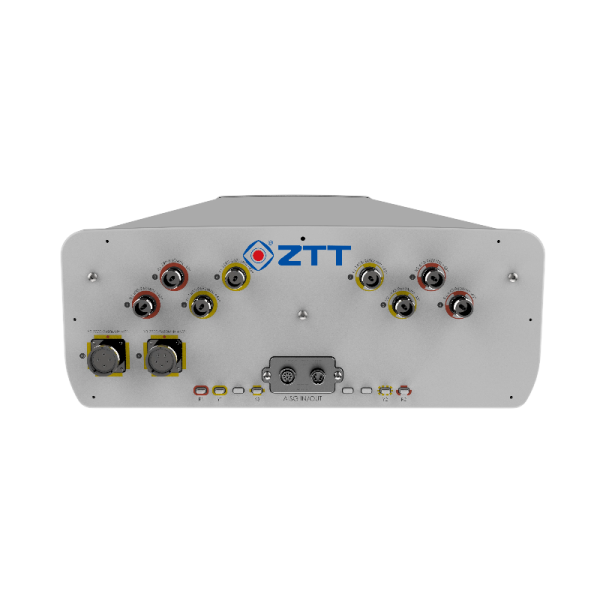

Connector Type

/

8×4.3-10 Female, 1×MQ4&MQ5

Connector Position

/

Bottom

Radiator Material

/

Low loss circuit broad & Aluminum

Radome Material / Color

/

Fiberglass / Light Grey RAL7035

Reflector Material

/

Aluminum

Storage Temperature

°C

-40 to +65

Operating Temperature

°C

-40 to +65

Humidity

/

5% to 95%

Max. operational Wind Speed

km/h

200

Wind Load @Rated Wind Front

N

2429

Wind Load @Rated Wind Side

N

388

Wind Load @Rated Wind Rear

N

2722

Lightning Protection

/

DC ground

Accessories

Model

/

HZJ38N

Weight

Kg

7.0

Downtilt Kit (mechanical)

Deg

0-12

Mounting Accessories (clamp)

/

Included with antenna

Mounting Pipe Diameter

mm

50-115

Internal RET Specifications

RCU (remote control unit)

/

Replaceable RET

(can be exchangable without exchanging antenna)

AISG2.0 /3GPP

Input Voltage Range

V

10-30 DC

Power Consumption

W

< 10 (motor activated , single RET)

< 2 (stand by, single RET)

Adjustment Time (full range)

s

< 120 (typically, depending on antenna type)

RET Connector

/

1 pair of AISG 5 pin male & female

Pin Assignment According AISG

/

5-pin circular connector conforming to IEC 60130-9 – Ed. 3.0

Lightning Protection

kA

5 (8/20 μs differential mode), 8 (8/20 μs common mode)

Reference Pattern

FDD:690-960MHz

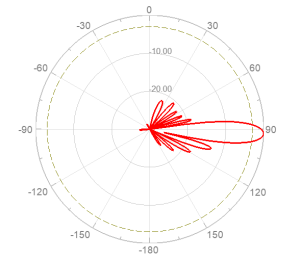

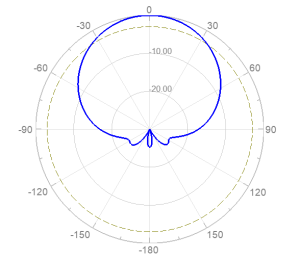

Horizontal Pattern

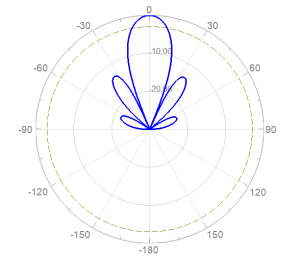

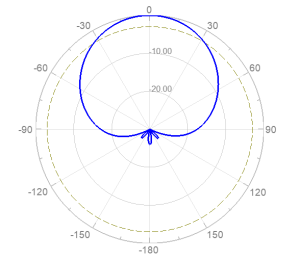

Vertical Pattern

FDD:1695-2690MHz

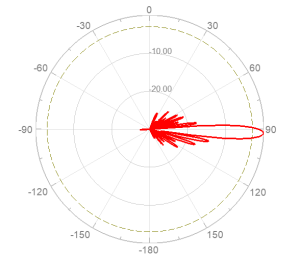

Horizontal Pattern

Vertical Pattern

TDD:2300-2690MHz

Single Column Beam

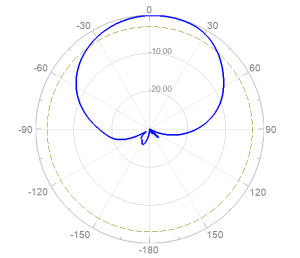

Horizontal Pattern

Vertical Pattern

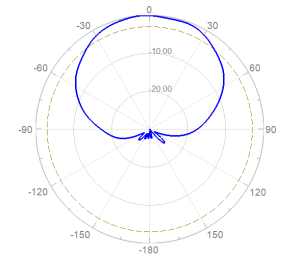

Broadcast Beam

0° Service Beam

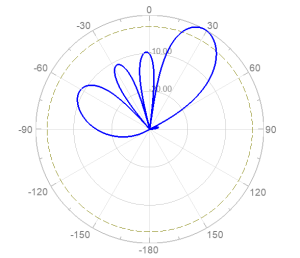

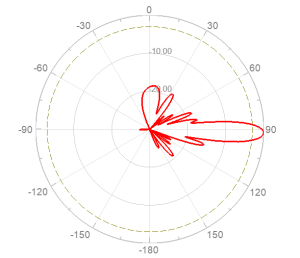

+30° Service Beam

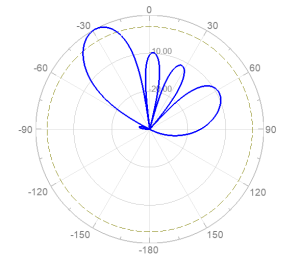

-30° Service Beam

Layout of Array

Array

Connector

Frequency(MHz)

RET Serial

R1

1-2

690-960

ZTR1…01

R2

3-4

690-960

ZTR2…02

Y1

5-6

1695-2690

ZTY1…03

Y2

7-8

1695-2690

ZTY2…04

Y3

MQ4&MQ5

2300-2690

ZTY3…05

All data are based on NGMN recommendations on Base Station Antenna Standards (BASTA V13.0).
