Green Antenna HBZ4B6517

Electrical Specifications

Description

4-port Sector Antenna,

2×690-960MHz,65deg,17dBi,Integrated RET

ZTT Product Code

HBZ4B6517

Frequency Range

MHz

2×690-960(R1/R2)

Frequency Band

MHz

690-806

790-894

880-960

Gain Over All Tilts

dBi

15.8±0.5

16.1±0.6

16.2±0.3

Gain by Tilt Average Mid

dBi

15.8

16.2

16.3

Efficiency Average

%

82

79

77

Horizontal 3dB Beam Width

Deg

63±5

62±5

61±5

Vertical 3dB Beam Width

Deg

11.3±1.4

10.1±0.8

9±0.6

1st Upper Side Lobe

Suppression Above Main Beam

dB

≥15

Front to Back Ratio

at 180Deg ±30Deg

dB

≥23

≥24

≥25

Cross Polar Ratio 0Deg

dB

≥17

Electrical Downtilt

Deg

2-12,Continuously adjustable

VSWR

/

≤1.5

Intraband Isolation

dB

≥25

Interband Isolation

dB

≥25

Intermodulation IM3

dBc

≤-153(2×43 dBm carrier)

Max. Power Per Port

Watt

400(at 50℃ ambient temperature)

Mechanical Specifications

Antenna Dimensions

mm

2100×449×150

Antenna Net Weight

kg

22.9

Packing Dimensions

mm

2325×515×222

Antenna Gross Weight

kg

37.7

Connector Type

/

4×4.3-10 Female

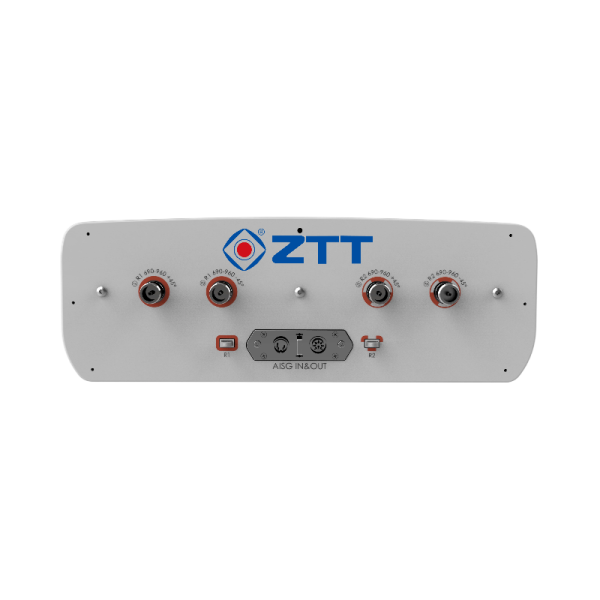

Connector Position

/

Bottom

Radiator Material

/

Aluminum

Radome Material / Color

/

Fiberglass / Light Grey RAL7035

Reflector Material

/

Aluminum

Storage Temperature

°C

-40 to +65

Operating Temperature

°C

-40 to +65

Humidity

/

5% to 95%

Max. operational Wind Speed

km/h

200

Wind Load @Rated Wind Front

N

2110

Wind Load @Rated Wind Side

N

292

Wind Load @Rated Wind Rear

N

2365

Lightning Protection

/

DC ground

Accessories

Model

/

HZJ37N

Weight

Kg

5.7

Downtilt Kit (mechanical)

Deg

0-12

Mounting Accessories (clamp)

/

Included with antenna

Mounting Pipe Diameter

mm

50-115

Internal RET Specifications

RCU (remote control unit)

/

Replaceable RET

(can be exchangable without exchanging antenna)

AISG2.0 /3GPP

Input Voltage Range

V

10-30 DC

Power Consumption

W

< 10 (motor activated , single RET)

< 2 (stand by, single RET)

Adjustment Time (full range)

s

< 120 (typically, depending on antenna type)

RET Connector

/

1 pair of AISG 5 pin male & female

Pin Assignment According AISG

/

5-pin circular connector conforming to IEC 60130-9 – Ed. 3.0

Lightning Protection

kA

5 (8/20 μs differential mode), 8 (8/20 μs common mode)

Reference Pattern

FDD:690-960MHz

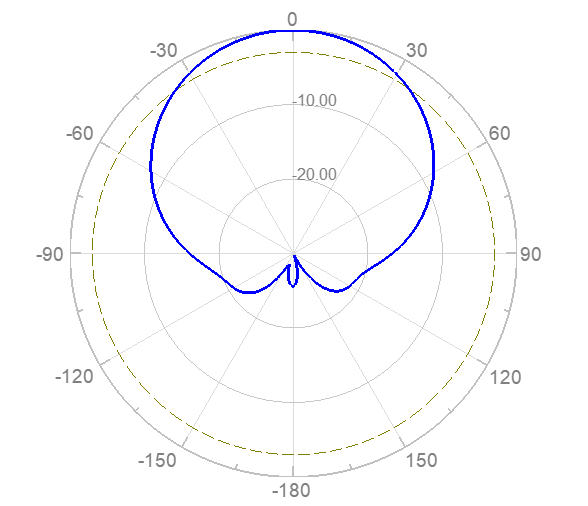

Horizontal Pattern

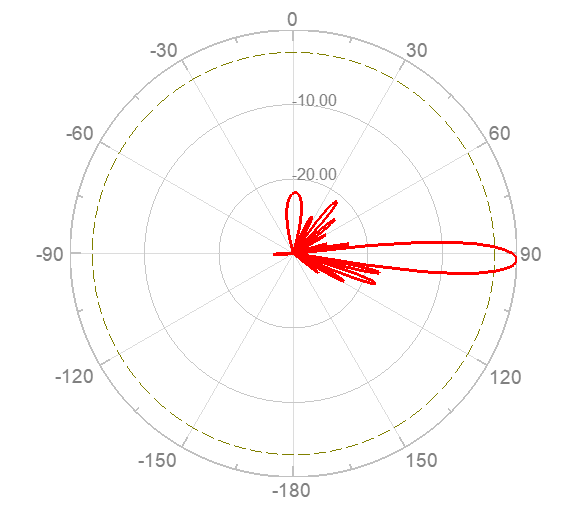

Vertical Pattern

Layout of Array

Array

Connector

Frequency(MHz)

RET Serial

R1

1-2

690-960

ZTR1…01

R2

3-4

690-960

ZTR2…02

All data are based on NGMN recommendations on Base Station Antenna Standards (BASTA V13.0).
