Green Antenna HBN8U9016

Electrical Specifications

Description

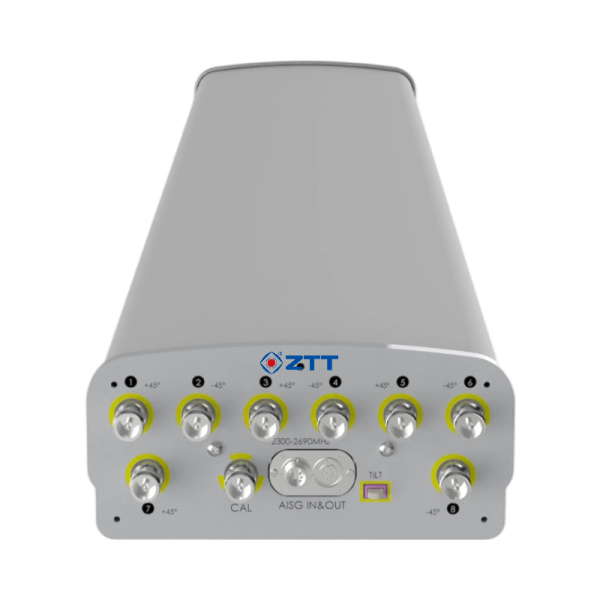

8-port Sector Antenna,TDD 4×2300-2690MHz,Integrated RET

ZTT Product Code

HBN8U9016

Frequency Range

MHz

TDD:4×2300-2690(Y1)

Frequency Band

MHz

2300-2500

2490-2690

Coupling Factor between

Calibration Port and Each Antenna Port

dB

-26±2

Max.Amplitude Tolerance

from Calibration Port to Input Ports

dB

≤0.9

Max.Phase Tolerance from

Calibration Port to Input Ports

Deg

≤8.0

Isolation between same Polarization ports

dB

≥20

Isolation between different Polarization ports

dB

≥23

VSWR

/

≤1.5

Electrical Downtilt

Deg

2-12,Continuously adjustable

Maximum Power

Watt

150(at 50℃ ambient temperature)

Single Column Beam

Gain Over All Tilts

dBi

15.0±0.3

15.2±0.4

Gain by Tilt Average Mid

dBi

15.1

15.3

Efficiency Average

%

66

65

Horizontal 3dB Beam Width

Deg

95±15

90±15

Vertical 3dB Beam Width

Deg

6.8±0.8

6.5±0.7

1st Upper Side Lobe

Suppression Above Main Beam

dB

≥15

Front to Back Ratio

at 180Deg ±30Deg

dB

≥23

Cross-Polar Ratio 0Deg

dB

≥15

Broadcast Beam

Gain Over All Tilts

Deg

16.1.±0.3

16.3±0.5

Gain by Tilt Average Mid

dBi

16.2

16.4

Horizontal 3dB Beam Width

Deg

65±6

60±7

Vertical 3dB Beam Width

Deg

6.8±0.7

6.3±0.7

1st Upper Side Lobe

Suppression Above Main Beam

dB

≥15

Front to Back Ratio

at 180Deg ±30Deg

dB

≥23

Cross-Polar Ratio 0Deg

dB

≥15

Service Beam

0°Beam Gain Over All Tilts

dBi

20.0±0.6

20.2±0.5

0°Beam Gain by Tilt Average Mid

dBi

20.0

20.2

0°Beam Horizontal 3dB Beam Width

Deg

27±4

26±4

0°Horizontal Sidelobe Suppression

dB

≥12

0°Beam Front to Back Ratio

dB

≥28

0°Beam Cross-Polar Ratio 0Deg

dB

≥20

Mechanical Specifications

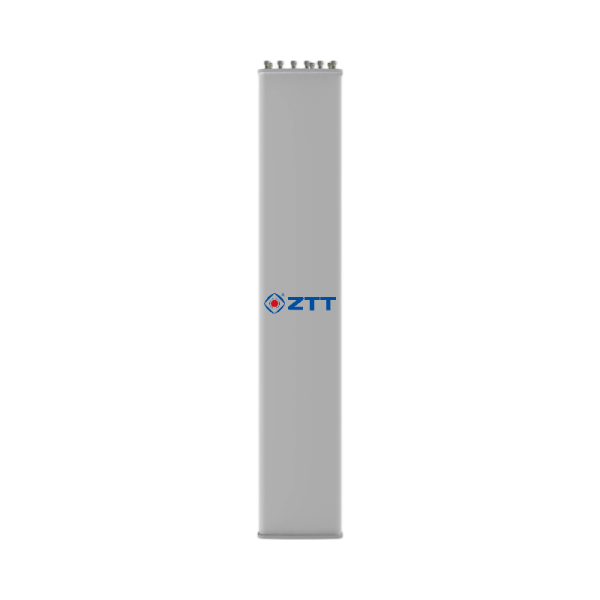

Antenna Dimensions

mm

1100×295×145

Antenna Net Weight

kg

17.6

Packing Dimensions

mm

1325×361×217

Antenna Gross Weight

kg

27.2

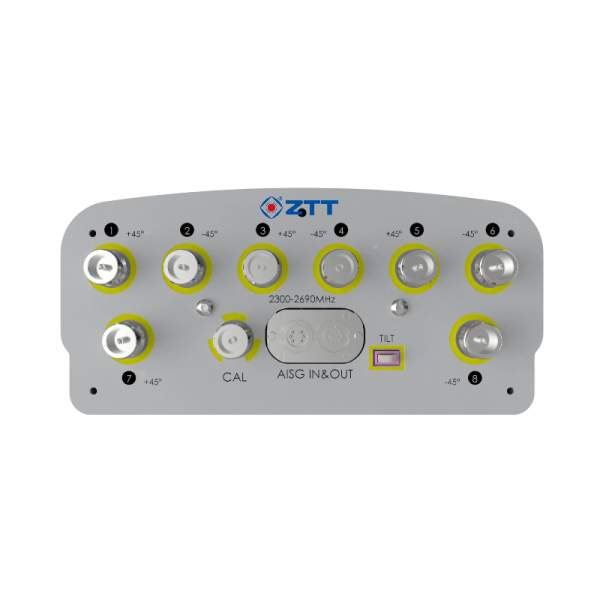

Connector Type

/

1×MQ4&MQ5

Connector Position

/

Bottom

Radiator Material

/

Low loss circuit broad

Radome Material / Color

/

Fiberglass / Light Grey RAL7035

Reflector Material

/

Aluminum

Storage Temperature

°C

-40 to +65

Operating Temperature

°C

-40 to +65

Humidity

/

5% to 95%

Max. operational Wind Speed

km/h

200

Wind Load @Rated Wind Front

N

726

Wind Load @Rated Wind Side

N

148

Wind Load @Rated Wind Rear

N

814

Lightning Protection

/

DC ground

Accessories

Model

/

HZJ36N

Weight

Kg

4.5

Downtilt Kit (mechanical)

Deg

0-12

Mounting Accessories (clamp)

/

Included with antenna

Mounting Pipe Diameter

mm

50-115

Internal RET Specifications

RCU (remote control unit)

/

Replaceable RET

(can be exchangable without exchanging antenna)

AISG2.0 /3GPP

Input Voltage Range

V

10-30 DC

Power Consumption

W

< 10 (motor activated , single RET)

< 2 (stand by, single RET)

Adjustment Time (full range)

s

< 120 (typically, depending on antenna type)

RET Connector

/

1 pair of AISG 5 pin male & female

Pin Assignment According AISG

/

5-pin circular connector conforming to IEC 60130-9 – Ed. 3.0

Lightning Protection

kA

5 (8/20 μs differential mode), 8 (8/20 μs common mode)

Reference Pattern

TDD:2300-2690MHz

Single Column Beam

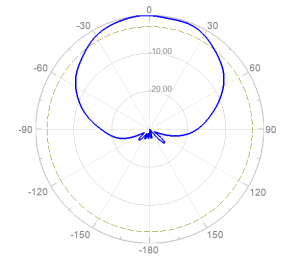

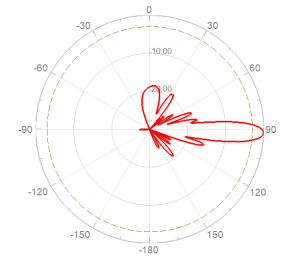

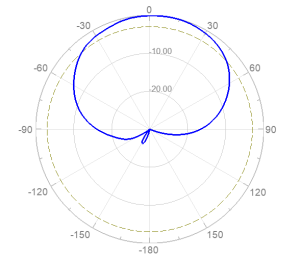

Horizontal Pattern

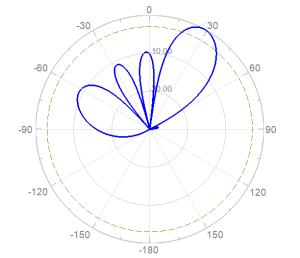

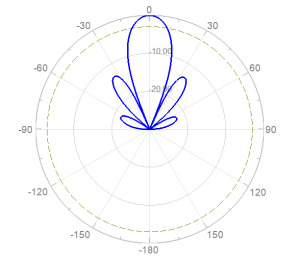

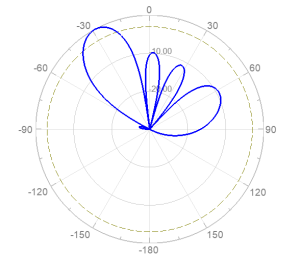

Vertical Pattern

Broadcast Beam

0° Service Beam

+30° Service Beam

-30° Service Beam

Layout of Array

Array

Connector

Frequency(MHz)

RET Serial

Y1

MQ4&MQ5

2300-2690

ZTY1…01

All data are based on NGMN recommendations on Base Station Antenna Standards (BASTA V13.0).
