Skid - mounted
Hydrogen Refueling System

Integrated 35/70 MPa refueling systems with intelligent control, modular deployment and comprehensive safety protection.

Our Solution

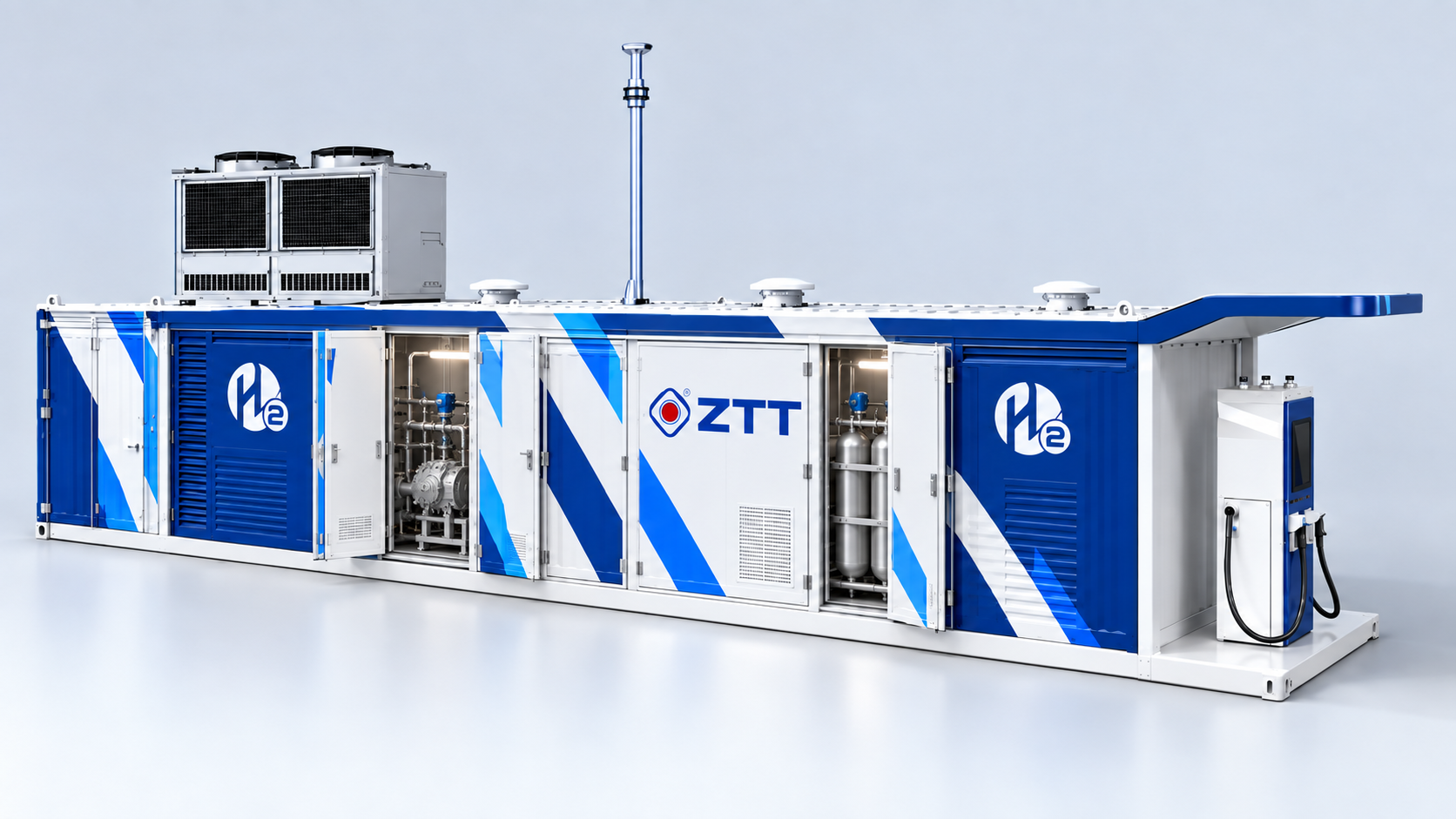

Skid - mounted hydrogen refueling system

Skid – mounted hydrogen refueling station puts hydrogen dispenser, compressor, supporting chiller and other auxiliary equipments into a container for convenient transportation and rapid installation. The overall equipment is explosion-proof.

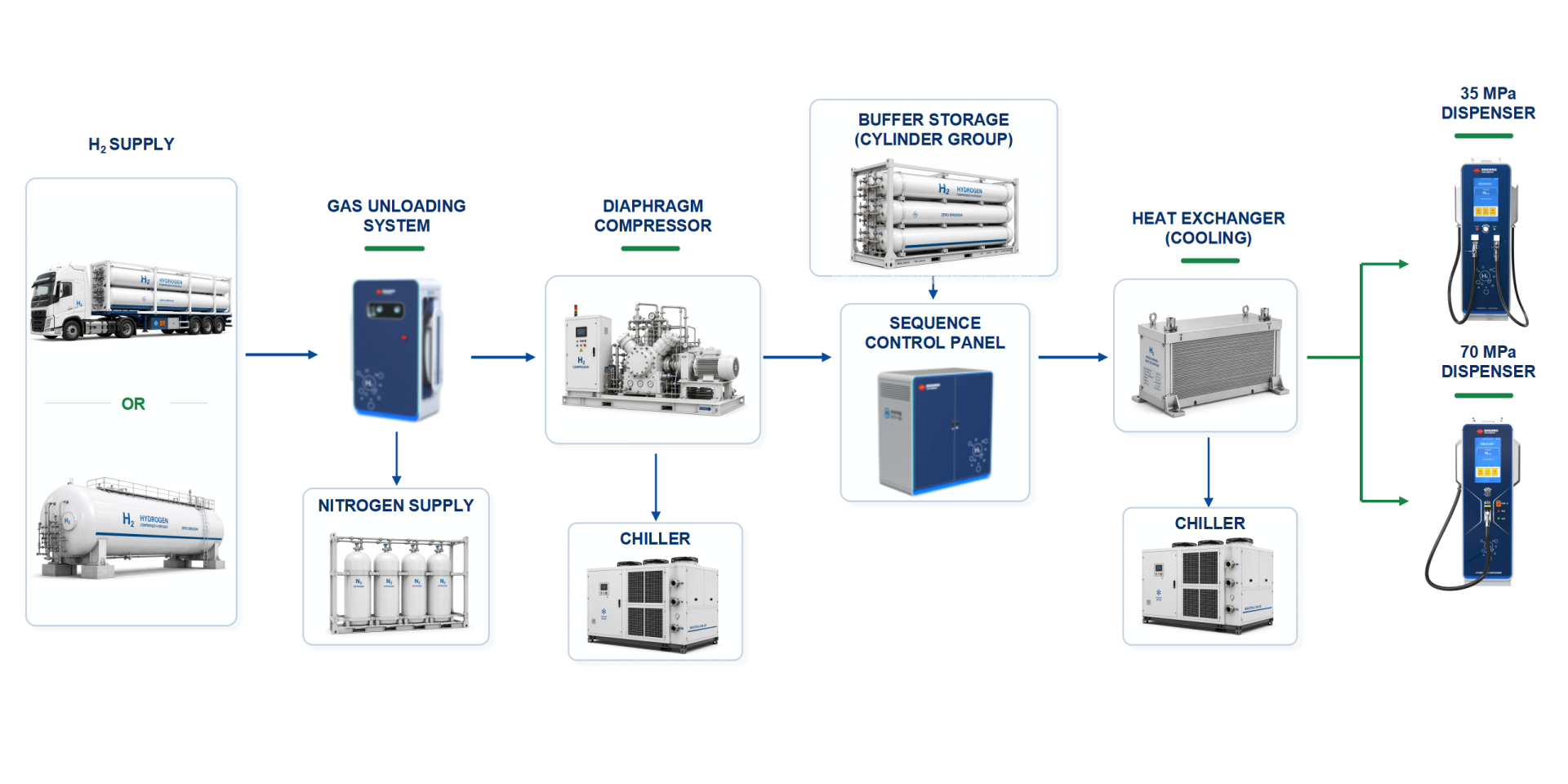

Hydrogen Refueling System

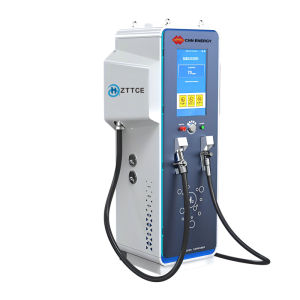

35MPa H2 Dispenser

Meet the SAE J2601 annotation protocol and obtain TUV certification
Automatic flow adjustment, remote status monitoring
Gas pressure protection, safety pressure relief, emergency cut off
Ultra large storage capacity
Flow range from 0.18kg/min to 7.2kg/min.

Learn More

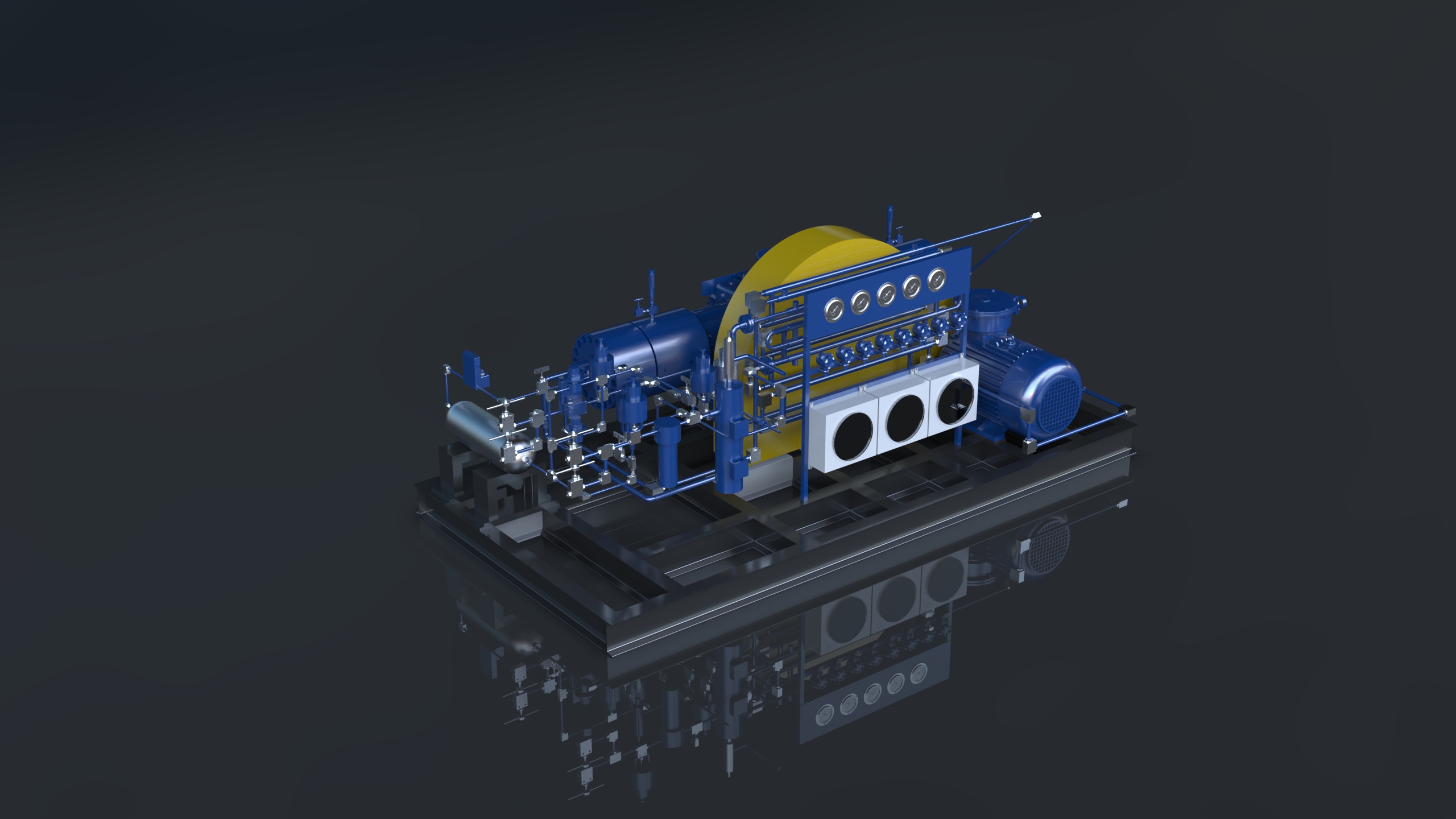

Diaphragm Compressor

Zero Pollution, Zero Leakage, High Compression Ratio
Precision design, technical breakthrough
High Pressure, Large Displacement, Low Energy Consumption.

Learn More

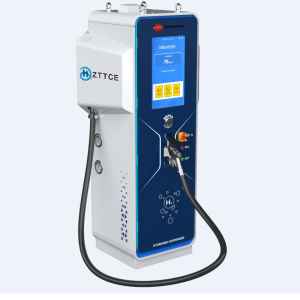

70MPa H2 Dispenser

Meet the SAE J2601 annotation protocol and obtain TUV certification
Automatic flow adjustment, remote status monitoring
Gas pressure protection, safety pressure relief, emergency cut off
Ultra large storage capacity
Flow range from 0.18kg/min to 7.2kg/min.

Learn More

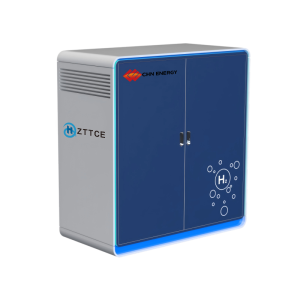

Sequence Control Cabinet

Three-Stage Refueling, High-Efficiency Gas Extraction, Independent Operation
Full Automatic, User-Friendly
Lightweight, Compact, Modularized.

Learn More

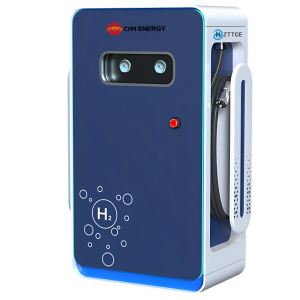

Gas Unloading Pole

Two systems, one in use and one in reserve
Intelligent control, safe and reliable
Emergency pull-off, explosion-proof and leak-proof.

Learn More

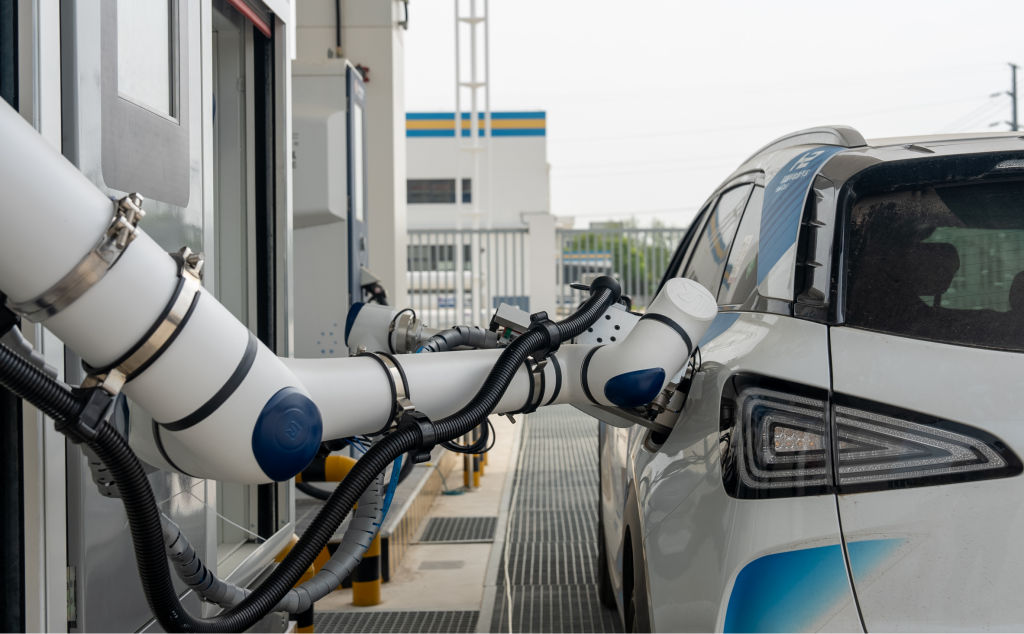

Automated Hydrogen Refueling Robot

– Combines force-controlled compliant motion with 3D vision
– Automates nozzle positioning, connection, refueling and disconnection
– Supports continuous 24/7 unattended operation
– Improves refueling safety, accuracy and efficiency
– Reduces manual intervention and operating costs

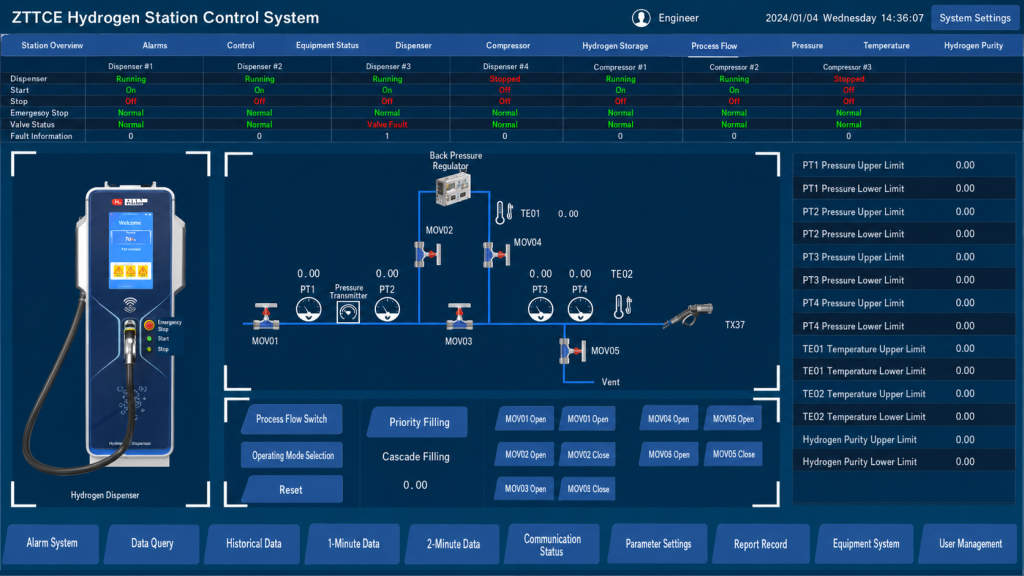

Station Control Technology

Refueling capacity can be increased by 10–20% without changing the hardware configuration by optimizing the integration of requirements, equipment, and station interfaces.
Features fault prediction and diagnostics, advanced safety interlocks, and fully automated operation.
The hydrogen dispenser control system holds proprietary IP, including PCT patents for refueling devices, station control methods, and system design (PCT/CN2019/078146, PCT/CN2019/078467).

Successful Cases

Fenning Hydrogen Refueling Station

HeBei, China | 1000kg/d | Automatic Hydrogen Refueling Robot | Completed Feb. 2025

Batuhta Heavy Haul Railway Hydrogen Refueling Station

Ningdong, China | 35 MPa | 7.2 kg/min | Automatic Hydrogen Refueling Robot | Completed June 2024

China's first 35&70MPa Hydrogen Refueling Station

Rugao,China | 1000kg/d | Completed Dec. 2019

Successful Cases

Fenning Hydrogen Refueling Station

HeBei, China | 1000kg/d | Automatic Hydrogen Refueling Robot | Completed Feb. 2025

Batuhta Heavy Haul Railway Hydrogen Refueling Station

Ningdong, China | 35 MPa | 7.2 kg/min | Automatic Hydrogen Refueling Robot | Completed June 2024

China's first 35&70MPa Hydrogen Refueling Station

Rugao,China | 1000kg/d | Completed Dec. 2019

About ZTTCE Hydrogen

ZTTCE is an integrated hydrogen equipment and EPC solutions provider. Backed by ZTT’s advanced manufacturing platform, NICE’s low-carbon hydrogen R&D and proven project delivery experience, we provide end-to-end capabilities from engineering and equipment manufacturing to commissioning and lifecycle service.

R&D and Manufacturing Capabilities

8,000 m² manufacturing base in Fengning and a 10,000 m² Hydrogen Technology R&D Center in Rudong, backed by end-to-end engineering, manufacturing, commissioning and lifecycle service.

Value Contained

Commercial Value: Driving Synergistic Development of the Hydrogen Industry Chain

The hydrogen industry chain (including hydrogen production, storage, transportation, fuel cells, and vehicle manufacturing) is driven to develop synergistically, promoting industrial upgrading and creating new momentum for economic growth. The high refueling efficiency of hydrogen refueling stations addresses the pain points of fuel cell vehicles (FCVs) such as "short range and slow refueling," accelerating their commercialization process and unlocking huge market potential in the future.

Environmental Value: Zero Emissions and Lifecycle Emission Reduction

Fuel cell vehicles (FCVs) emit only water, and the promotion of hydrogen refueling stations directly reduces carbon emissions in the transportation sector, effectively alleviating urban smog and air pollution. Locally produced green hydrogen is most beneficial to the climate, with lifecycle carbon dioxide emissions approximately 80% lower than those of diesel trucks (theoretical value), delivering significant environmental benefits and contributing to the achievement of the "carbon peaking and carbon neutrality goals."

Social Value: Promoting Energy Transition and Improving People's Livelihood

The construction of hydrogen refueling stations drives the transformation of the energy structure from fossil fuels to clean energy, reducing dependence on traditional gasoline and natural gas. The construction and operation of hydrogen stations require a large number of technical personnel and management talents, creating more job opportunities. It also allows the public to have close contact with hydrogen energy, popularizing its cleanliness and safety, and enhancing public awareness and acceptance.
