Skid - mounted
Hydrogen Production System

Scalable alkaline electrolysis and modular production systems for efficient, high-purity green hydrogen.

Our Solution

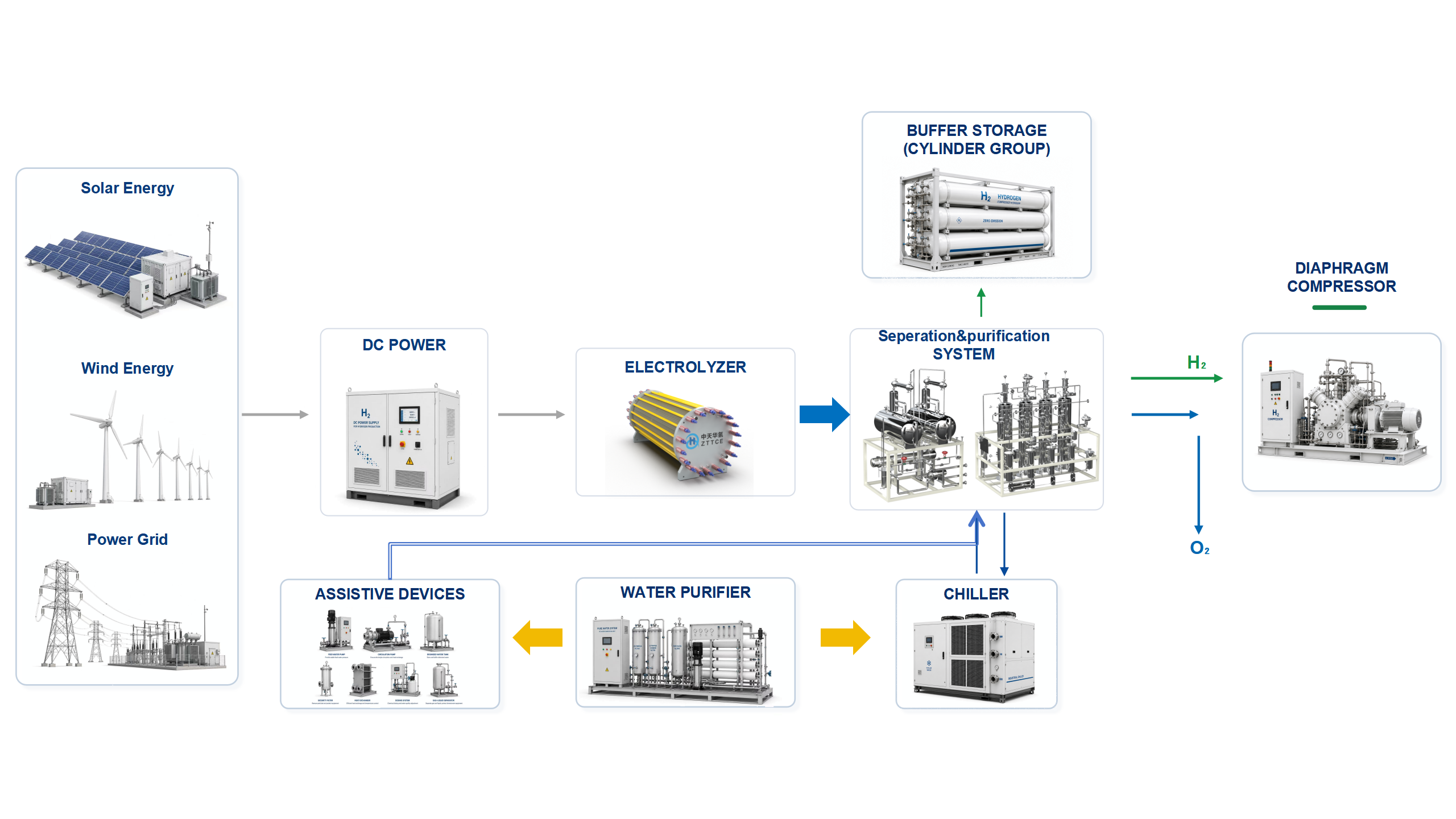

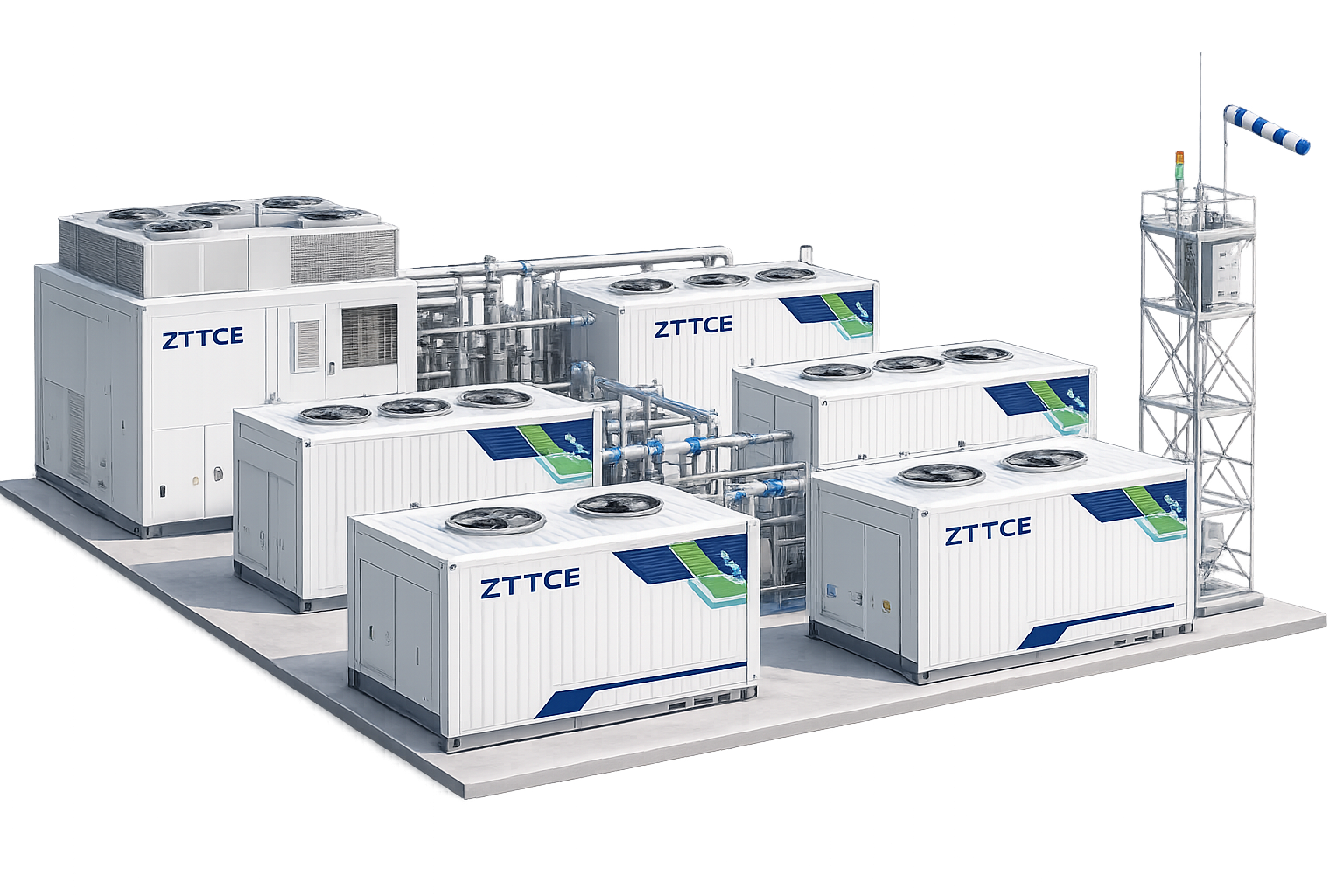

Skid - mounted hydrogen production system

Utilizes 20-foot/40-foot standard containers, aligned with domestic and international standards for easy transportation.
Features a short construction period, strong scalability, and reduced construction costs.

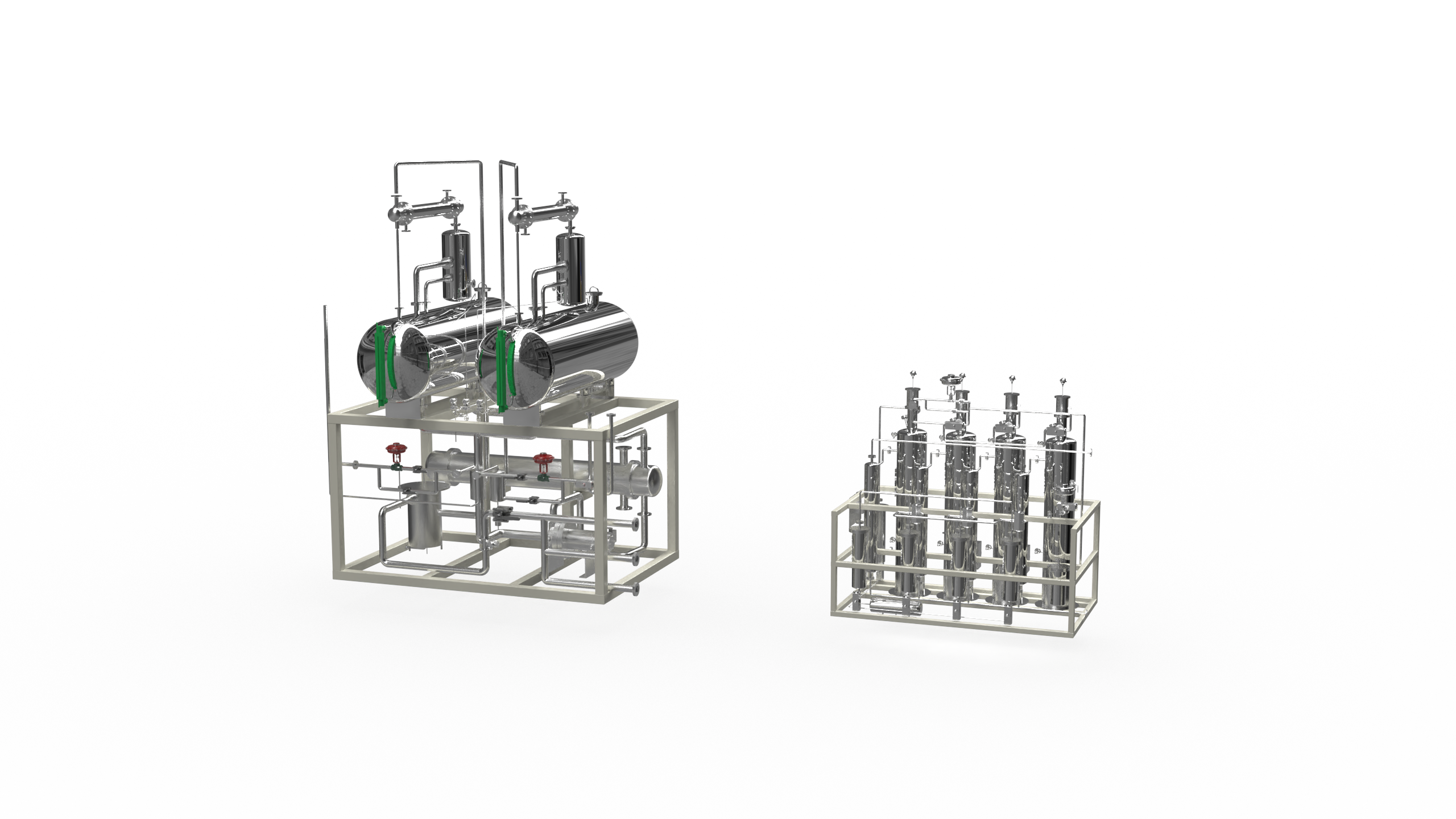

BOP system

Long service life, strong CO desorption
High yield, low impurities
Efficient, Economical, Safe, and Stable
Automatic adjustment, interlock shutdown

Learn More

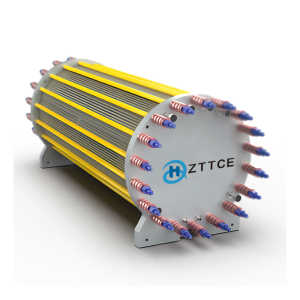

Electrolyzer

Automatic control, unattended operation Wide load range, high gas pressure High current density, low power consumption.
Learn More

Diaphragm compressor

Domestic-leading outlet pressure of 87.5 MPa and a displacement of 500 Nm³/h at 12 MPa inlet
Learn More

New generation of high-performance alkaline electrolyzer

The DC energy consumption is 3.98 kW·h/Nm³, and the cell voltage consistency rate is ≤4%.；
30%-110% operating conditions + 20%/120% limit + 1-3%/s rapid load increase and decrease；
One-click cold and hot start and stop, and simulation of new energy wind power output curve adaptation

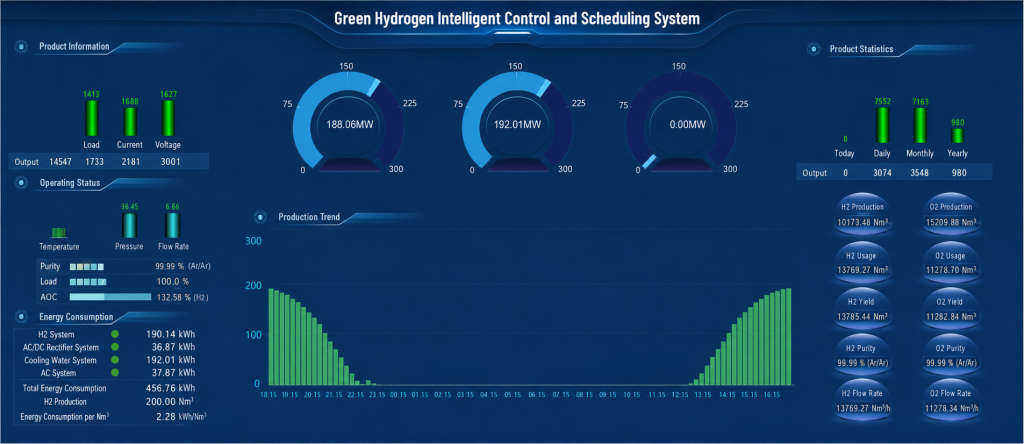

Intelligent Energy Management System for Green Hydrogen

Integrates renewable power, grid, energy storage, electrolyzers and hydrogen demand into one coordinated control platform.
– Real-time plant monitoring and centralized control
– Wind and solar power forecasting
– Dynamic electrolyzer load adjustment
– Source–grid–storage–hydrogen coordination
– Optimized power allocation and production scheduling
– Higher renewable energy utilization
– More stable and efficient hydrogen production

Successful Cases

Guohua Rudong PV-H2-Storage

Rudong, China | 400 MW PV | 1,500 Nm3/h hydrogen production and filling

Cranfield University, UK

20 kW DC-DC direct-drive hydrogen system with international commissioning support

Successful Cases

Guohua Rudong PV-H2-Storage

Rudong, China | 400 MW PV | 1,500 Nm3/h hydrogen production and filling

Cranfield University, UK

20 kW DC-DC direct-drive hydrogen system with international commissioning support

About ZTTCE Hydrogen

ZTTCE is an integrated hydrogen equipment and EPC solutions provider. Backed by ZTT’s advanced manufacturing platform, NICE’s low-carbon hydrogen R&D and proven project delivery experience, we provide end-to-end capabilities from engineering and equipment manufacturing to commissioning and lifecycle service.

R&D and Manufacturing Capabilities

8,000 m² manufacturing base in Fengning and a 10,000 m² Hydrogen Technology R&D Center in Rudong, backed by end-to-end engineering, manufacturing, commissioning and lifecycle service.

Value Contained

Commercial Value: Synergizing the Hydrogen Industry Chain

We drive end-to-end collaboration across the hydrogen ecosystem—from hydrogen production equipment and storage/transportation solutions to terminal applications—unlocking new growth momentum for the economy. By integrating upstream, midstream, and downstream segments, we foster a robust industrial ecosystem that accelerates market scalability.

Environmental Value: Advancing Decarbonization & Supporting Dual Carbon Goals

Our stations generate significant environmental benefits by enabling deep industrial decarbonization. In steelmaking, we promote hydrogen metallurgy to replace traditional blast furnaces; in chemicals, we facilitate green hydrogen synthesis of ammonia and methanol. These applications reduce carbon emissions, improve air quality, and directly support global carbon peaking and carbon neutrality goals.

Social Value: Powering Energy Transition & Regional Collaboration

We accelerate the energy transition by absorbing surplus renewable energy (addressing curtailment challenges), diversifying energy supplies, and reducing reliance on fossil fuels like oil and natural gas. For underdeveloped regions rich in wind/solar resources, our stations boost local economies and promote shared prosperity. Additionally, long-distance hydrogen pipeline transportation enhances regional energy coordination, strengthening energy security and equity.
