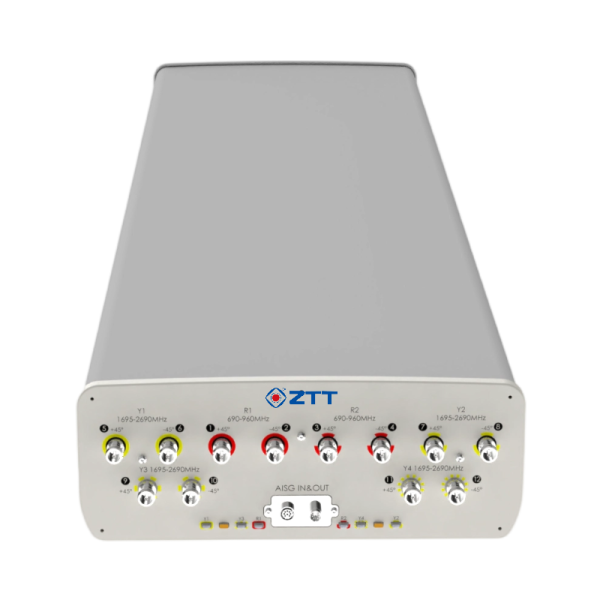

Green Antenna HBZ48K651718

Description

12-port Sector Antenna,

2×690-960&4×1695-2690MHz,65Deg,17&18dBi,Integrated RET

ZTT Product Code

HBZ48K651718

Frequency Range

MHz

FDD:2×690-960(R1/R2)

Frequency Band

MHz

690-806

790-894

880-960

Gain Over All Tilts

dBi

15.6±0.6

16.1±0.4

16.2±0.4

Gain by Tilt Average Mid

dBi

15.6

16.0

16.3

Efficiency Average

%

81

79

78

Horizontal 3dB Beam Width

Deg

65±4

61±5

61±4

Vertical 3dB Beam Width

Deg

11.2±1.7

10.2±1.1

8.9±0.7

1st Upper Side Lobe

Suppression Above

Main Beam

dB

≥15

Front to Back Ratio

at 180Deg ±30Deg

dB

≥23

≥24

≥25

Cross Polar Ratio 0Deg

dB

≥15

Electrical Downtilt

Deg

2-12,Continuously adjustable

VSWR

/

≤1.5

Intraband Isolation

dB

≥25

Interband Isolation

dB

≥25

Intermodulation IM3

dBc

≤-153(2×43 dBm carrier)

Max. Power Per Port

Watt

250(at 50℃ ambient temperature)

Frequency Range

MHz

FDD:2×1695-2690(Y1/Y3)

Frequency Band

MHz

1695-1990

1920-2200

2300-2500

2490-2690

Gain Over All Tilts

dBi

16.2±0.5

16.6±0.7

17.5±0.6

17.3±0.7

Gain by Tilt Average Mid

dBi

16.2

16.7

17.6

17.4

Efficiency Average

%

81

77

78

76

Horizontal 3dB Beam Width

Deg

65±6

63±5

56±6

57±6

Vertical 3dB Beam Width

Deg

8.7±0.6

7.5±0.6

6.6±0.4

6.1±0.4

1st Upper Side Lobe

Suppression Above Main Beam

dB

≥15

Front to Back Ratio

at 180Deg ±30Deg

dB

≥25

Cross Polar Ratio 0Deg

dB

≥15

Electrical Downtilt

Deg

2-12,Continuously adjustable

VSWR

/

≤1.5

Intraband Isolation

dB

≥25

Interband Isolation

dB

≥25

Intermodulation IM3

dBc

≤-153(2×43 dBc carrier)

Max. Power Per Port

Watt

250(at 50℃ ambient temperature)

Frequency Range

MHz

FDD:2×1695-2690(Y2/Y4)

Frequency Band

MHz

1695-1990

1920-2200

2300-2500

2490-2690

Gain Over All Tilts

dBi

16.0±0.5

16.2±0.7

17.1±0.6

16.9±0.7

Gain by Tilt Average Mid

dBi

16.0

16.1

17.2

17.0

Efficiency Average

%

77

74

75

72

Horizontal 3dB Beam Width

Deg

65±6

63±5

56±6

57±6

Vertical 3dB Beam Width

Deg

8.6±0.6

7.6±0.6

6.7±0.4

6.1±0.4

1st Upper Side Lobe

Suppression Above Main Beam

dB

≥15

Front to Back Ratio

at 180Deg ±30Deg

dB

≥25

Cross Polar Ratio 0Deg

dB

≥15

Electrical Downtilt

Deg

2-12,Continuously adjustable

VSWR

/

≤1.5

Intraband Isolation

dB

≥25

Interband Isolation

dB

≥25

Intermodulation IM3

dBc

≤-153(2×43 dBc carrier)

Max. Power Per Port

Watt

200(at 50℃ ambient temperature)

Mechanical Specifications

Antenna Dimensions

mm

2340×450×192

Antenna Net Weight

kg

37.3

Packing Dimensions

mm

2565×550×280

Antenna Gross Weight

kg

51.4

Connector Type

/

12×4.3-10 Female

Connector Position

/

Bottom

Radiator Material

/

Aluminum

Radome Material / Color

/

Fiberglass / Light Grey RAL7035

Reflector Material

/

Aluminum

Storage Temperature

°C

-40 to +65

Operating Temperature

°C

-40 to +65

Humidity

/

5% to 95%

Max. operational Wind Speed

km/h

200

Wind Load @Rated Wind Front

N

2340

Wind Load @Rated Wind Side

N

373

Wind Load @Rated Wind Rear

N

2623

Lightning Protection

/

DC ground

Accessories

Model

/

HZJ38N

Weight

Kg

7.0

Downtilt Kit (mechanical)

Deg

0-12

Mounting Accessories (clamp)

/

Included with antenna

Mounting Pipe Diameter

mm

50-115

Internal RET Specifications

RCU (remote control unit)

/

Replaceable RET

(can be exchangable without exchanging antenna)

AISG2.0 /3GPP

Input Voltage Range

V

10-30 DC

Power Consumption

W

< 10 (motor activated , single RET)

< 2 (stand by, single RET)

Adjustment Time (full range)

s

< 120 (typically, depending on antenna type)

RET Connector

/

1 pair of AISG 5 pin male & female

Pin Assignment According AISG

/

5-pin circular connector conforming to IEC 60130-9 – Ed. 3.0

Lightning Protection

kA

5 (8/20 μs differential mode), 8 (8/20 μs common mode)

Reference Pattern

FDD:690-960MHz

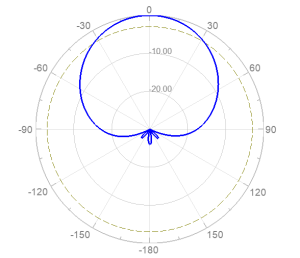

Horizontal Pattern

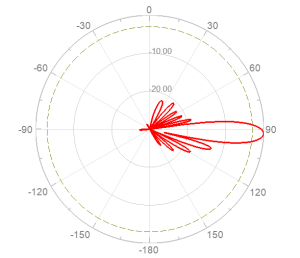

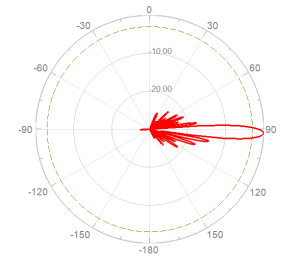

Vertical Pattern

FDD:1695-2690MHz

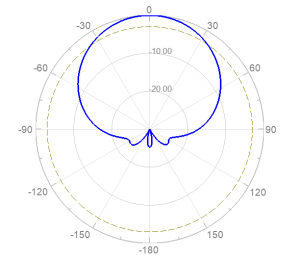

Horizontal Pattern

Vertical Pattern

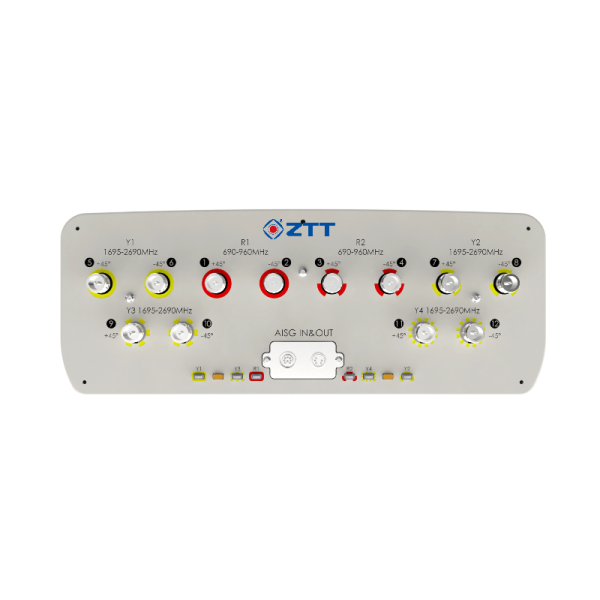

Layout of Array

Connector

Frequency(MHz)

RET Serial

R1

1-2

690-960

ZTR1…01

R2

3-4

690-960

ZTR2…02

Y1

5-6

1695-2690

ZTY1…03

Y2

7-8

1695-2690

ZTY2…04

Y3

9-10

1695-2690

ZTY3…05

Y4

11-12

1695-2690

ZTY4…06

All data are based on NGMN recommendations on Base Station Antenna Standards (BASTA V13.0).
