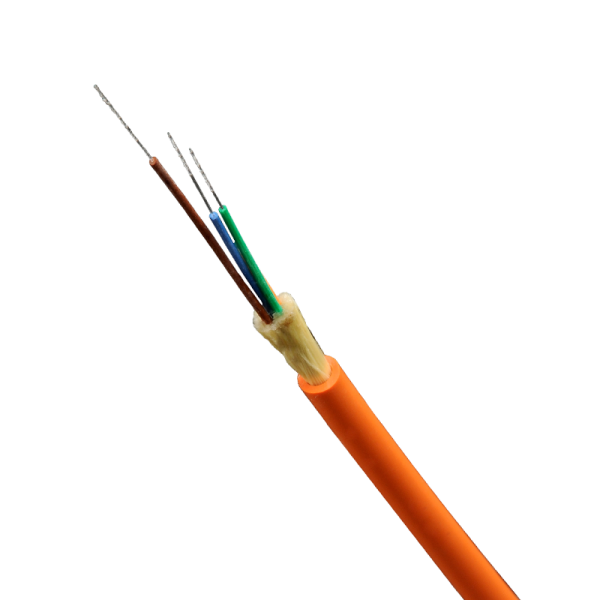

Branch Cable

Branch cable features compact overall structure and contains no jelly what makes it environementally friendly. It is applicable to vertical buildings cabling, multi-core fiber optic active patch cords, equipment connections, and optical connections in optical distribution frames.

Product Description

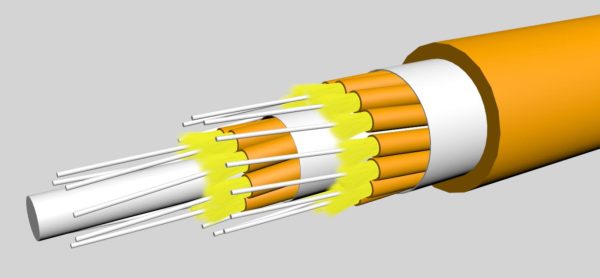

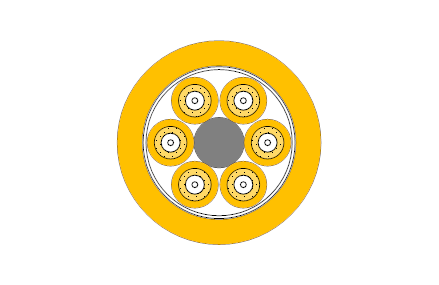

Branch optical cables use single-core optical cables as sub-units (containing 900μm tight-buffered fibers and aramid strength members) and feature a non-metallic central strength member. The cable sub-units are stranded around the central strength member to form the cable core, with an outer sheath extruded from polyvinyl chloride (PVC) or low-smoke zero-halogen (LSZH, characterized by low smoke, zero halogen, and flame retardant) material.

Product Advantages

Compact overall structure with no jelly inside;
Excellent mechanical properties and environmental adaptability;
Flexible and convenient for laying, with simple splicing operation;
The outer sheath is soft, featuring both anti-flame spread and self-extinguishing properties.

Cable type	No. of Fibers	Cable diameter (mm)	Reference cable weight (kg/km)		Tensile load (N)		Crush load (N/100mm)
Cable type	No. of Fibers	Cable diameter (mm)	PVC	LSZH	Long-term	Short-term	Long-term	short-term
GJBFJH/GJBFJV	4	7.5±0.5	45	55	200	660	300	1000
	6	8.5±0.5	71	75	200	660	300	1000
	8	9.8±0.5	89	96	200	660	300	1000
	12	13±0.5	162	171	200	660	300	1000
	24	15±0.5	191	203	400	1320	300	1000
	36	16.8±0.5	225	260	400	1320	300	1000
	48	19.3±0.5	310	349	400	1320	300	1000

Installation method: Indoor structured cabling / Serves as the backbone cabling optical cable in buildings.
Operating temperature:
Storage and operation: -20℃ to +60℃ Laying: -20℃ to +60℃.
Bending radius:
Static: 10 times the cable diameter; Dynamic: 20 times cable diameter.

Let’s Build The Future with Innovation

Please provide the following details to help our sales representatives better understand your needs and get In touch with you as soon as possible.

Branch Cable

Related Products

Related products

Anti-Rodent Cable

Butterfly Drop Cable

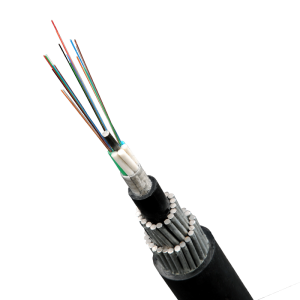

Underwater Cable

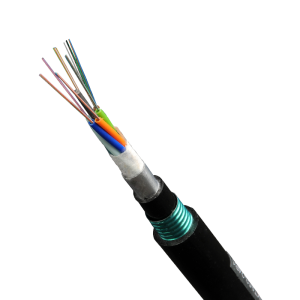

Duct & Direct buried cable
