Anti-Rodent Cable

Anti-Rodent Cable is a special type of optical cable designed to resist damage caused by rodents.By using anti-rodent materials such as glass fiber yarn, FRP, steel wire armor and stainless steel strip armor, anti-rodent the performance is achieved.

Product Description

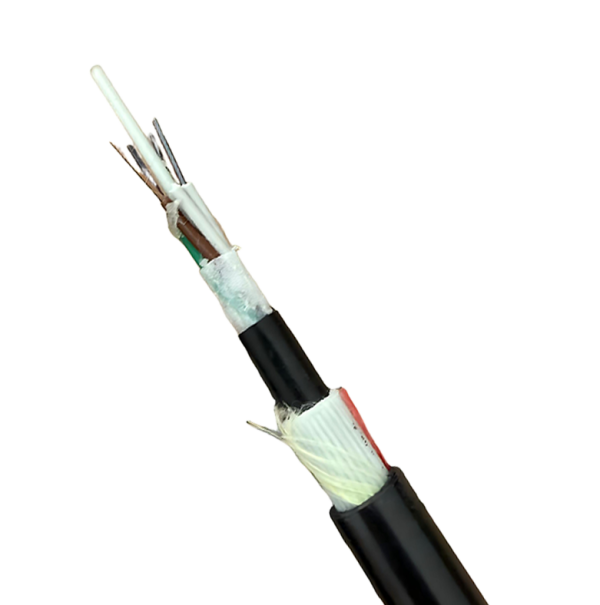

Anti-Rodent cables are made by inserting single-mode optical fibers into loose tubes made of high-modulus polyester material (PBT), with waterproof compounds filled inside the tubes. Non-metallic or metallic strength member are used at the center of the optical cable. The loose tubes (and possible filling ropes) are twisted around the central strength member to form a compact ,circular cable core. Aluminum tape may be longitudinally wrapped around the cable core and a layer of inner polyethylene sheath is extruded. Additional glass yarns, flat FRP or round FRP armour, stainless steel tape and steel wire armour are used as anti-rodent material. Finally, a layer of outer polyethylene sheath is extruded to form the cable.

Product Advantages

S-Z stranded (up to 624 fibers) or central tube structure (up to 144 fibers)
Metallic, non-metallic armored or unarmored
Steel wire or FRP for center strength member
Good water penetration, mechanical and environmental performance
Glass yarns, flat FRP or round FRP armor, stainless steel tape and steel wire armor providing good anti-rodent performance
In accordance with IEC, ITU and EIA standards

GYTA43

No of Fiber	Cable diameter ±0.5（mm）	Cable weight ±15% (kg/km)	Tensile load (N)	Crush load (N/100mm)
2-30	12.9	205	1000/3000	1000/3000
32-36	13.4	229	1000/3000	1000/3000
38-72	13.7	240	1000/3000	1000/3000
74-84	14.3	256	1000/3000	1000/3000
86-96	15.2	282	1000/3000	1000/3000

Installation method: Duct, buried directly, overhead.
Operating temperature:
Storage and operation: -40℃ to +70℃ Laying: -15℃ to +60℃.
Bending radius:
Static: 10 times the cable diameter; Dynamic: 20 times cable diameter.
