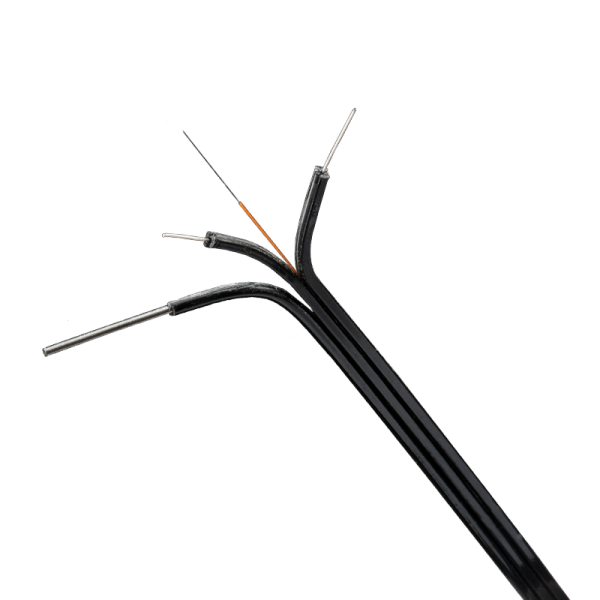

Butterfly Drop Cable

Being preferred transmission medium for FTTX networks, the butterfly drop cable, with its unique structural and performance advantages, plays a crucial role in the development of scenarios such as intelligent buildings, digital communities, campus networks, and enterprise local area networks.

Product Description

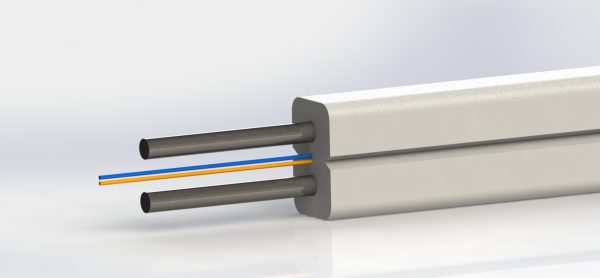

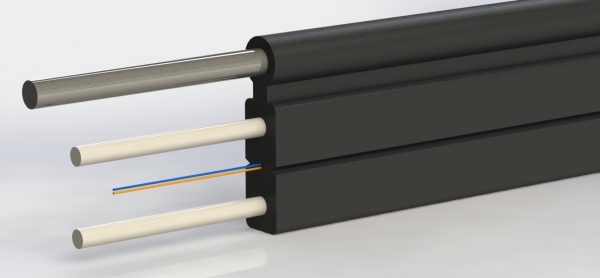

Centered on the optical fiber unit, the butterfly drop cable features two parallel strength members placed on both sides. By developing this design of the outdoor catenary butterfly optical, an additional parallel messenger wire on the outside of the sheath may be added. The entire cable is jacketed by extrusion using low-smoke zero-halogen (LSZH) sheath.

Product Advantages

The unique grooved design enhances sheath stripping convenience for easy splicing . Parallel strength members on both sides ensure tensile and compressive performance, effectively protecting optical fibers.
Bend-resistant fibers offer greater bandwidth, enhance transmission characteristics, and meet data transmission needs across multiple scenarios.
The low-smoke zero-halogen (LSZH) flame-retardant sheath features anti-flame spread and self-extinguishing properties, ensuring environmental friendliness and safety. Scene-adapted sheath material guarantees stable application in different environments.
With a compact structure, light weight, and strong practicality, it simplifies installation and maintenance, and is suitable for diverse laying scenarios.

Cable type	No. of Fibers	Cable diameter (mm)	Reference cable weight (kg/km)	Tensile load (N)		Crush load (N/100mm)
Cable type	No. of Fibers	Cable diameter (mm)	Reference cable weight (kg/km)	Long-term	Short-term	Long-term	short-term
GJXFH	1~4	2.0*3.0±0.1	10±2	40	80	500	1000
GJXH	1~4	2.0*3.0±0.1	10±2	100	200	1000	2200
GJYX(F)CH	1~4	(2.03.0±0.1) 5.2±0.2	20±2	300	600	1000	2200

Installation method: Indoor Wall/Ceiling Surface Mounting/Outdoor Aerial Introduction /In-door Termination Splicing.
Indoor butterfly drop cable operating temperature:
Storage and operation: -10℃ to +60℃ Laying: -25℃ to +60℃.
Outdoor butterfly drop cable operating temperature:
Storage and operation: -40℃ to +70℃ Laying: -25℃ to +60℃.
Bending radius:
Static: 20mm; Dynamic: 40mm.
