| Electrical Specifications | ||||||

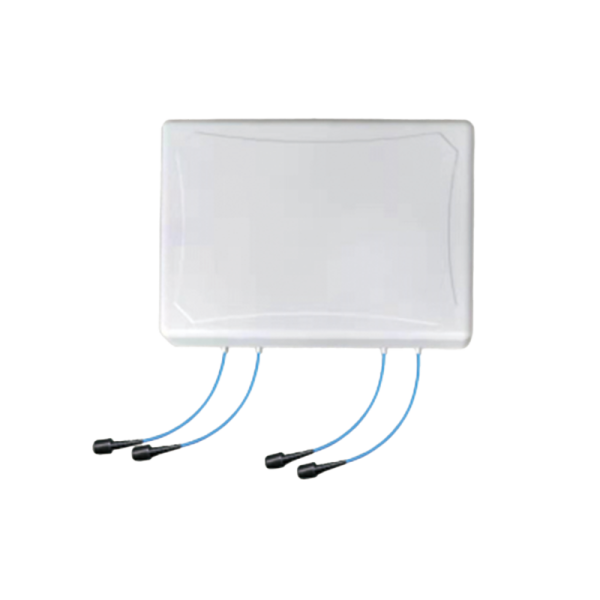

| ZTT Product Code | ZRI617-3800XX07i70A | |||||
| Frequency Range | MHz | 617-698 | 698-960 | 1710-2700 | 3300-3800 | |
| Gain | dBi | 5.5±1 | 6.0±1 | 7.0±1 | 6±1 | |
| Polarization | ±45° | |||||
| Beam Width | Horizontal | deg | 80 | 70 | 68 | 55 |
| Vertical | 70 | 70 | 68 | 50 | ||
| Front-To-Back Ratio | dB | 5 | 5 | 10 | 8 | |
| VSWR | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ||
| Isolation | dB | >15 | >15 | >20 | >20 | |
| PIM, 3rd Order, 2 x 20 W | dBc | ≤-153 | ||||
| Input Power per Port, Maximum | watts | 50 | ||||
| Mechanical Specifications | ||||||
| Dimensions, HxWxD | mm | 310x420x100 | ||||
| Weight, without Mounting Kit | kg | ≤2.5 | ||||
| Radome Material and Color | ABS, White, RAL9003 | |||||
| Mounting Kit | On-wall | |||||
| Connector Type | 4.3-10-Female×4 | |||||
| Operational Temperature | °C | -55 to +85 | ||||
| Operational Humidity | % | < 95 | ||||
