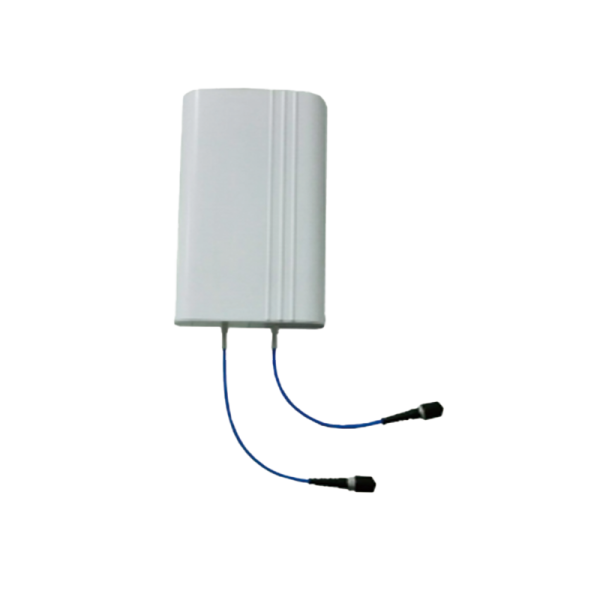

ZRI617-3800VH08i75A

Indoor 2*2 MIMO Directional Antenna, coverage 617MHz -3800MHz

Compact 2×2 MIMO directional antenna providing focused coverage and enhanced data throughput for targeted in-building areas. Its low-profile design enables easy wall or ceiling mounting in offices, retail, and public venues.

Electrical Specifications
ZTT Product Code		ZRI617-3800VH08i75A
Frequency Range		MHz	617-806	806-960	1710-2170	2170-2700	3300-3800
Gain		dBi	4.5±0.5	6±0.5	7±0.5	7.5±0.5	6±1.0
Polarization			Vertical and Horizontal
Beam Width (Typical )	Horizontal	deg	90	80	65	60	40
	Vertical		73	70	60	60	30
VSWR			≤2.0
PIM, 3rd Order, 2 x 20W		dBc	-153
Input Power per Port, Maximum		watts	50
Impedance		ohm	50
Mechanical Specifications
Dimensions, HxWxD		mm	404x180x62
Weight, without Mounting Kit		kg	1.2
Radome Material and Color			PVC, White
Mounting Kit			On-wall
Connector Type			4.3-10-Female×2
Operational Temperature		°C	-55 to +85
Operational Humidity		%	< 95

Let’s Build The Future with Innovation

Please provide the following details to help our sales representatives better understand your needs and get In touch with you as soon as possible.

ZRI617-3800VH08i75A

Related Products

Related products

SFP 1.25G BIDI 1310/1490nm 20km

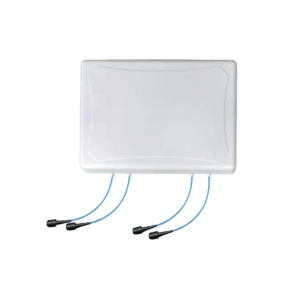

ZRI617-3800XX07i70A

ZRI617-3800V08i75A

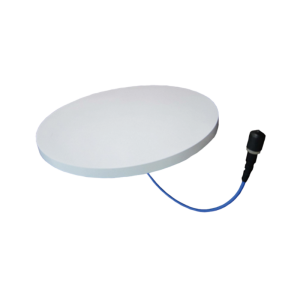

ZRI617-3800H06i360E
