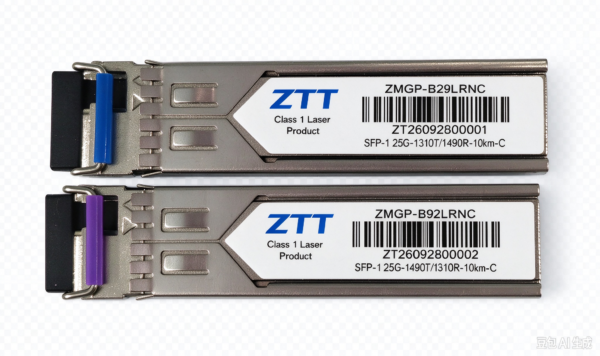

SFP 1.25G BIDI 1310/1490nm 10km

The transceiver is intended for 1310nm/1490nm reach service up to 1.25Gb/s communications equipment where low-cost, extraordinary performance and reliability are essential. For different transmission distance with different optical power and sensitivity spec. The device is Class I laser safety compliant.

Single LC interface, Duplex operation
Applicable for 10km SMF connection
Up to 1.25Gbps data rate
Single 3.3VPower supply
Power consumption ≤ 1W
Hot-Pluggable SFP footprint
1310nm FPtransmitter, 1490nm DFB transmitter, PIN receiver
Case Operating temperature ranges:
Industrial: -40℃to 85℃, Commercial:0℃ to 70℃
RoHS compliance

Part Number	Specifications
Part Number	Pack	Rate (Gbps)	Tx (nm)	Po (dBm)	Rx	Sen (dBm)	Tc (℃)
ZMGP-B29LRNI	SFP	1.25	1310	-9 ~ -3	PIN	-19.5	-40 ~ 85
ZMGP-B92LRNI	SFP	1.25	1490	-9 ~ -3	PIN	-19.5	-40 ~ 85
ZMGP-B29LRNC	SFP	1.25	1310	-9 ~ -3	PIN	-19.5	0~ 70
ZMGP-B92LRNC	SFP	1.25	1490	-9 ~ -3	PIN	-19.5	0~ 70
