| Electrical Specifications | ||||||

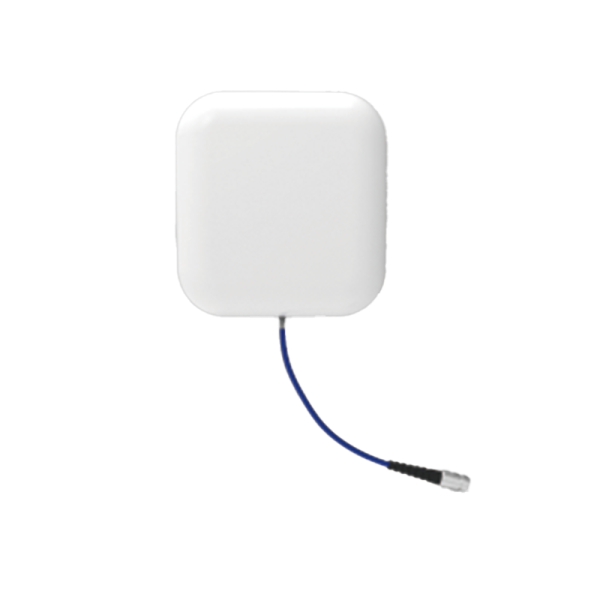

| ZTT Product Code | ZRI617-3800V08i75A | |||||
| Frequency Range | MHz | 617-806 | 806-960 | 1710-2700 | 3300-3800 | |
| Gain | dBi | 4.5±0.5 | 5.5±1 | 7±1 | 6±1 | |
| Polarization | Vertical | |||||
| Beam Width((typical) | Horizontal | deg | 80 | 80 | 65 | 40 |
| Vertical | 73 | 70 | 60 | 30 | ||
| Front-To-Back Ratio | dB | 5 | 8 | 15 | 10 | |
| VSWR | ≤2.0 | ≤1.8 | ||||
| PIM, 3rd Order, 2 x 20W | dBc | -153 | ||||
| Input Power, Maximum | watt | 50 | ||||
| Impedance | ohm | 50 | ||||
| Mechanical Specifications | ||||||
| Dimensions, HxWxD | mm | 180x170x60 | ||||
| Weight, without Mounting Kit | kg | 0.37 | ||||
| Radome Material and Color | ABS, White | |||||
| Mounting Kit | On-wall | |||||
| Connector Type | 4.3-10-Female | |||||
| Operational Temperature | °C | -55 to +85 | ||||
