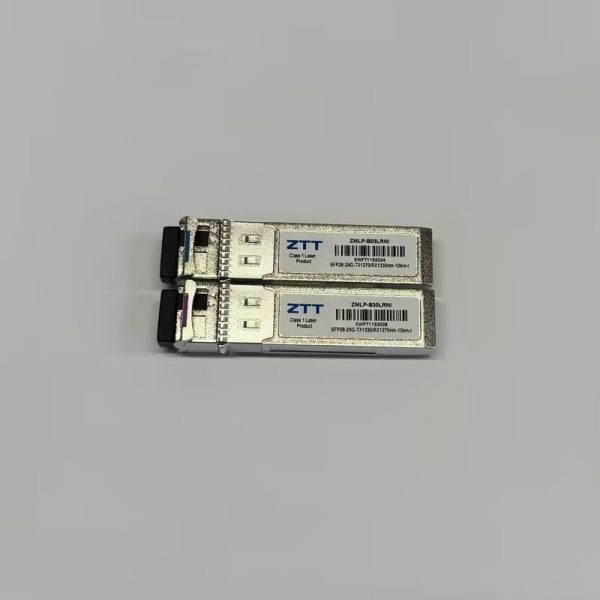

SFP28 25G BIDI 1270/1330nm 10km

The transceiver is intended for 10km reach service from 24.33Gb/s to 25.78Gb/s single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It utilizes internal clock and data recovery (CDR) units on transmitter and the receiver chains for low jitter compliance. The differential AC coupled Tx and Rx data interfaces are CML compatible. The device is Class I laser safety compliant.

LC BiDi optical interface
Up to 10km transmission distance
33Gb/s to 25.78Gb/s data links
Single 3.3V Power supply
Low DC power consumption
Hot-Pluggable SFP28 footprint
High performance 1270/1330nm DML laser
High sensitivity PIN/TIA optical receiver
Single Mode operation
BER < 5X10-5
Built-in CDR
Case Operating temperature ranges:Industrial:-40 to 85ºC，Commercial:0 to 70ºC
ROHS compliance

Part. No	Specifications
Part. No	Pack	Rate (Gbps)	Tx (nm)	P (dBm)	Rx	S (dBm)	Top (℃)	Reach (km)
ZMLP-B03LRNC	SFP28	25.78	1270	-4~+2	PIN/TIA	<-13	0~+70	10
ZMLP-B30LRNC	SFP28	25.78	1330	-4~+2	PIN/TIA	<-13	0~+70	10
ZMLP-B03LRNI	SFP28	25.78	1270	-4~+2	PIN/TIA	<-13	-40~+85	10
ZMLP-B30LRNI	SFP28	25.78	1330	-4~+2	PIN/TIA	<-13	-40~+85	10
