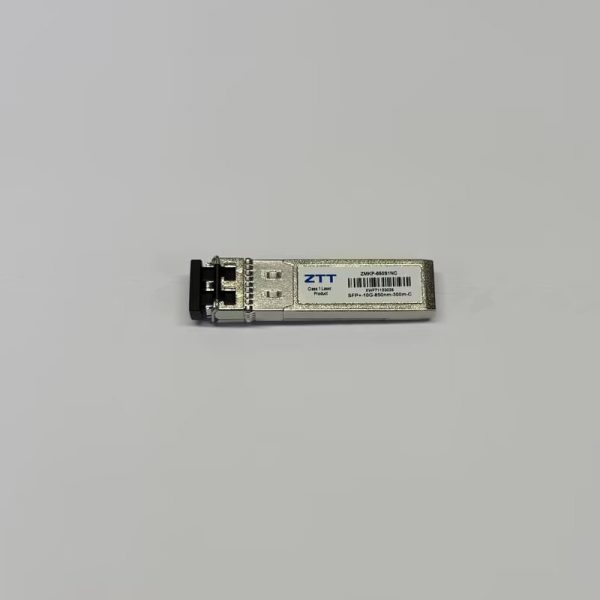

The SFP+ transceiver provides 10GBase-SR throughput up to 300m over Multi-mode fiber (MMF) using a wavelength of 850nm via an LC connector. Digital optical monitoring (DOM) support is present to allow access to real-time operating parameters.The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI.
Part Number | Specifications | ||||||
| Pack | Rate (Gbps) | Tx (nm) | Po (dBm) | Rx | Sen (dBm) | Tc (℃) | |
ZMKP-850S1NI | SFP+ | 10.3125 | 850 | -6.2 ~ -1 | PIN | -11.1 | -40 ~ 85 |
| ZMKP-850S1NC | SFP+ | 10.3125 | 850 | -6.2 ~ -1 | PIN | -11.1 | 0~ 70 |
