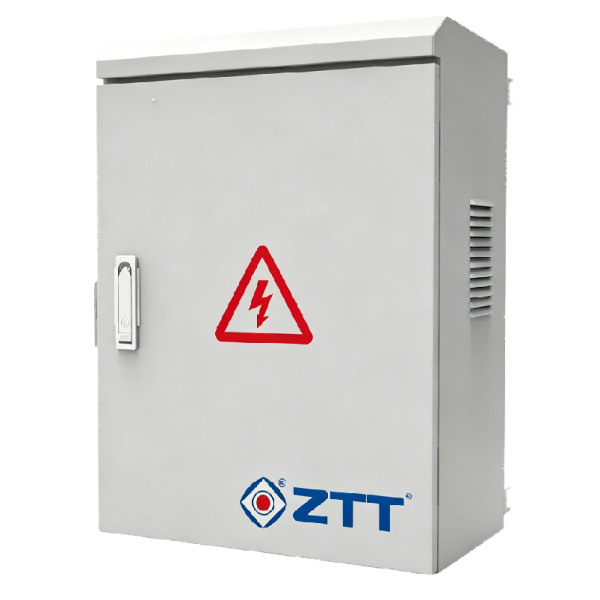

Wall-Mounted Power Supply

This 220 V AC to −48 V DC power system is designed for outdoor installation and integrates rectifier modules with lithium-battery backup. The system can accommodate a 48 V, 100 Ah lithium battery.

Wide operation voltage range 85~290Vac.
Rectifier module and battery management.
Network design, LAN and RS485 interface.
Support modbus/SNMP communication protocol, provide Web side remote management orcommunication with third-party network management, flexible networking
Support LCD interface display and system control and operation keyboard.
Rectifier and controller hot swappable.

1.	System
1.1	Cabinet Size	600mm (H) x 800mm (W) x 350mm (D) (excluding mounting module size)
1.2	Number of rectifier slots	2 slots
1.3	Controller	Integrated RS485, LAN, DIDO
1.5	Cooling system	Fan configuration: 2 * 48VDC type fan
1.6	Environment Protection Level	IP54
1.7	Battery compartment space	Supports lithium battery installation with 3U
1.8	Installation Mode	Wall-mounted, pole/tower installation
1.9	Cabling Mode	Bottom inlet/outlet
2.	AC Power Distribution
2.1	AC Input Voltage	220V
2.2	Operating Frequency	45~65Hz
2.3	AC input CB	MCB 2P/63A*1
2.4	AC SPD	IEC 61643 class II
3.	DC Power Distribution
3.1	Power System Type	-48VDC
3.2	Output capacity	100A, 6KW
3.3	DC output CB	1P/32A2+1P/63A4
3.4	Battery CB	1P/100A*1
3.5	DC SPD	IEC 61643 class II
