Blade Power Supply

The Integrated Blade Power Supply is a compact outdoor solution designed to deliver reliable –48V DC power for distributed micro base stations. It fully integrates AC/DC distribution, rectification, and lightning protection in a single, ruggedized unit. For extended backup power, multiple units can be seamlessly combined to meet specific site requirements.

Zero Footprint, Rapid Deployment: 1 person, <1 hour.
Self-Cooling: Aluminium heatsink, without AC, reduced OPEX.
High Density & Efficiency: 96.5%.
Flexible installation: Pole/Wall/Ground.
ldeal for: Macro/Micro 4G/5G Sites.

Outdoor integrated power supply

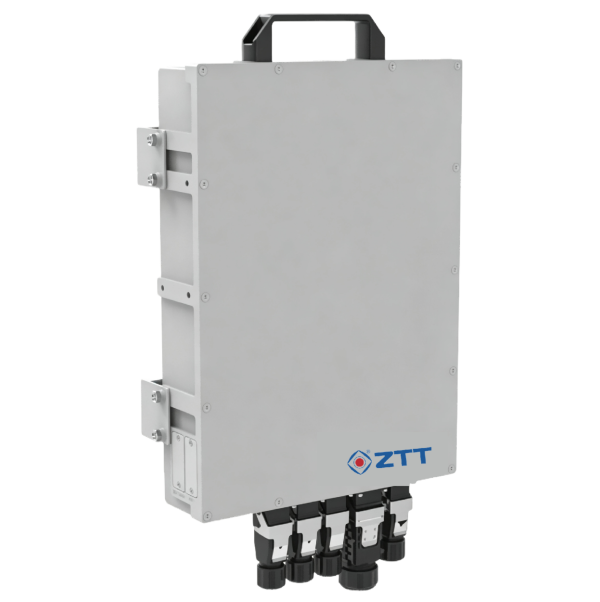

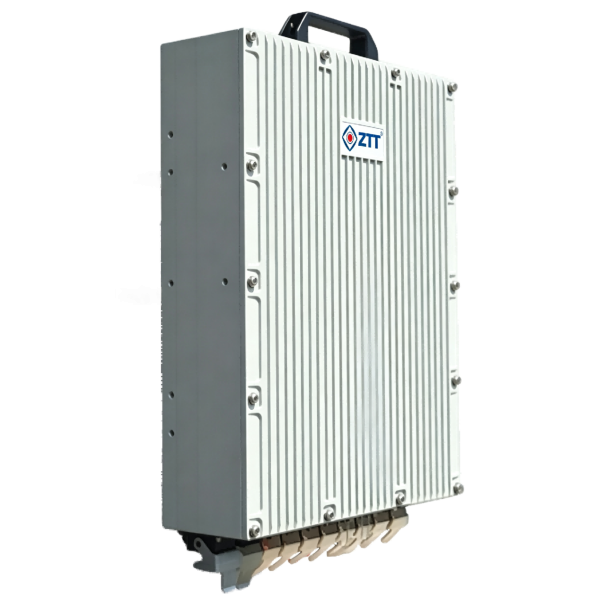

Technical Parameters	DYX-2000	DYX-3000	DYX-6000
Rated output	3000W@220V AC	3000W@220V AC	6000W@220V AC
Rated output voltage	57V DC	57V DC	57V DC
Peak efficiency	≥96.5%	≥97%	≥97%
Input Voltage	110/220 VAC (85 VAC-300 VAC)	110/220 VAC (85 VAC-300 VAC)	110/220 VAC(85 VAC-300 VAC)
Load Output	3-way (snap-in terminals, 40A each, replaceable fuses)	3-way (snap-in terminals, 40A each, replaceable fuses)	7-way (snap-in terminals, 40A each, replaceable fuses)
Battery Access	1 way (quick plug terminal, throughput 63A) (can be used for load output, or connected to battery, also can be used for power cascade)	1 way (quick plug terminal, throughput 63A) (can be used for load output, or connected to battery, also can be used for power cascade)	2 way (quick plug terminal, throughput 125A) (can be used for load output, or connected to battery, also can be used for power cascade)
AC SPD	In=20 kA (8/20 μs)	In=20 kA (8/20 μs)	In=30 kA (8/20 μs)
Volume & Size	7.5L;	7.5L;	15.8L;
Volume & Size	37826774(mm)(HWD)	37826774(mm)(HWD)	440350103(mm)(HWD)
Weights	8kg	8kg	16kg
Alarm	Power supply abnormality, input power-down alarm, input under-voltage, input over-voltage, over-temperature, output over-voltage, output over-current, etc.
Protection level	IP65
Cooling mode	Natural cooling
Operating temperature	-40°C~+60°C
