DCDU

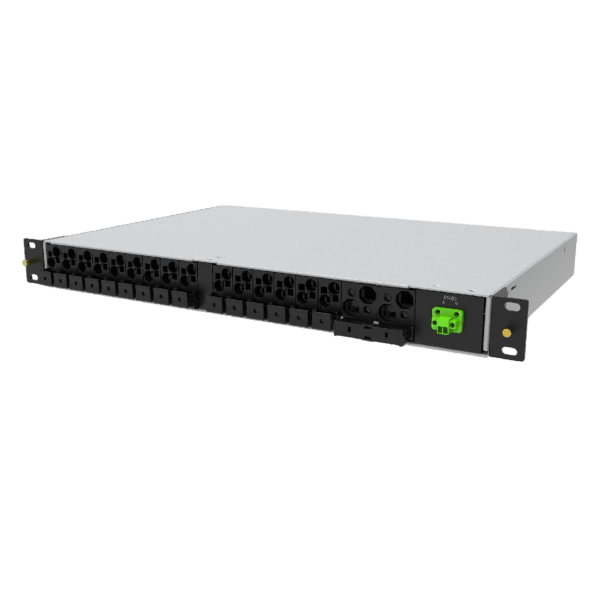

1U Compact DC Distribution Unit

High-density design saves rack space.
User-centric front-accessible layout.
Integrated CBs for essential protection and safety.
Standard 19-inch rack mounting.

System			Environment
Dimension (W×H×D)	19-inch×1U×300mm		Operating temperature	-20~45℃
Cooling Type	Natural air cooling		Storage temperature	-40~75℃
Cable Access	Front		Humidity	5% to 95% (non-condensing)
Protection Level	IP20		Altitude	0 to 2000m
DC Input			DC Output
Input Mode	-48 VDC, Terminal		Output Voltage	-48V
Capacity	Max. 250A		Load Breakers	Max. 12 × 63A
Controller (optional)
Communication Ports		RS485, SNMP

Telecom power distribution
