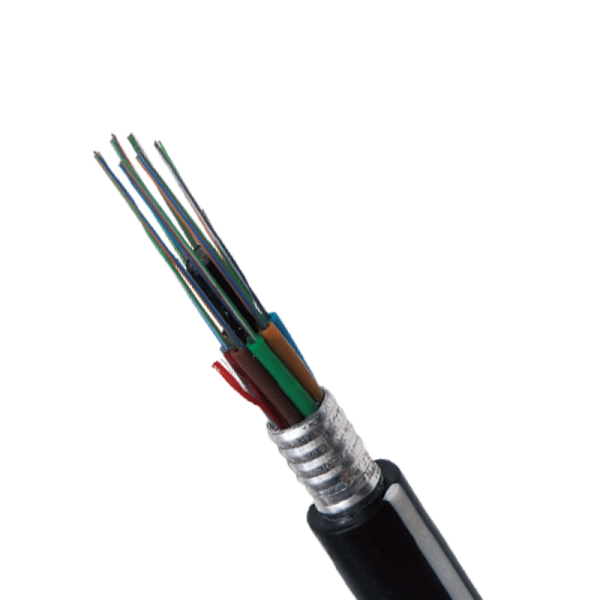

Identification Type Cable

Identification Type Cable is a special type of optical cable that has colored stripes added to its outer sheath for identification purposes. It is mainly used for engineering maintenance, manufacturer identification, and to differentiate products.

Product Description

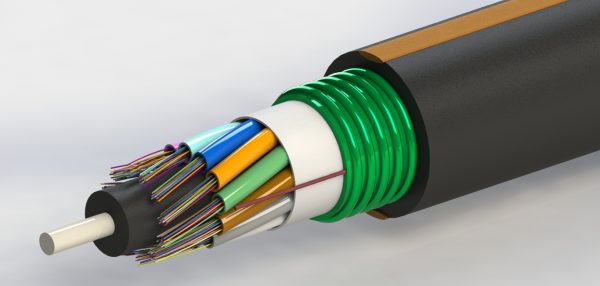

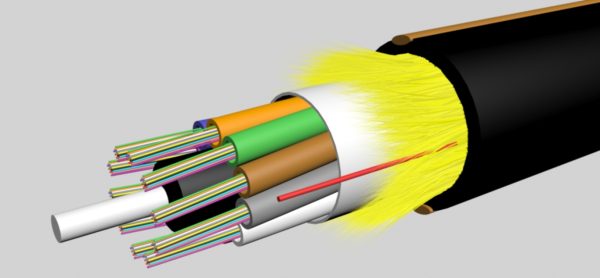

Added one or two stripes of different colors to the outer sheath of the optical cable for identification. This color stripe is applicable to the cable sheath of various structures and is suitable for different environments.

Product Advantages

Easy to distinguish with color stripes along cable jacket,
Provides one or more stripes,
Provides color customized solution according to requirements,
Provides color stripe with ultraviolet resistant,
Metallic, non-metallic armoured or unarmoured,
The color stripes are produced in a special coloring process and are deeply integrated with the material sheath. They are not prone to falling off or fading.

GYTA

No of Fiber	Cable diameter ±0.5（mm）	Cable weight ±15% (kg/km)	Tensile load (N)	Crush load (N/100mm)
2~30	9	≤85	600/1500	300/1000
32~36	9.4	≤95	600/1500	300/1000
38~60	9.8	≤100	600/1500	300/1000
62~72	10.5	≤125	600/1500	300/1000
74~84	11.3	≤130	600/1500	300/1000
86~96	12	≤145	600/1500	300/1000
98~108	12.7	≤160	600/1500	300/1000
110~120	13.4	≤175	600/1500	300/1000
122~132	14.1	≤190	600/1500	300/1000
134~144	14.8	≤205	600/1500	300/1000
146~216	14.9	≤280	600/1500	300/1000
218~288	16.9	≤340	600/1500	300/1000

Installation method: Duct, buried directly, overhead.
Operating temperature:
Storage and operation: -40℃ to +70℃ Laying: -15℃ to +60℃.
Bending radius:
Static: 10 times the cable diameter; Dynamic: 20 times cable diameter.
