- Good processability, suitable for processing on general-purpose extruders. - Excellent flame retardancy: oxygen index ≥ 30%, passing single vertical combustion. - Halogen-free and environmentally friendly: halogen acid gas content ≤ 5 mg/g, combustion gas pH ≥ 4.3, conductivity ≤ 10 μs/mm. - Good weather and UV resistance: after xenon arc lamp aging (1000h), the rate of change of tensile strength and elongation at break is within ±30%. - Low coefficient of friction after cabling (≤ 0.25), providing a smooth sheath surface. - Good thermal stability: thermal deformation ≤ 20% at 90℃, heat shrinkage ≤ 3% at 85℃ for 4 h.
| Test items | Unit | Typical Value | Test Standard | Equivalent Standard |
| Density | g/cm³ | 1.47 | GB/T 1033.1 | ISO 1183-1 |
| Tensile strength | MPa | 13.9 | GB/T 1040.3 | ISO 527-3 |
| Elongation at break | % | 221 | GB/T 1040.3 | ISO 527-3 |
| Air oven thermal aging (100℃, 168h) — Tensile strength after aging | MPa | 12.2 | GB/T 2951.12 GB/T 1040.3 | IEC 60811-1-2 ISO 527-3 |
| Air oven thermal aging (100℃, 168h) — Elongation at break after aging | % | 188.95 | ||
| Xenon arc lamp aging (1000h) — Rate of change of tensile strength | % | ≤±30 | GB/T 16422.2 | ISO 4892-2 |
| Xenon arc lamp aging (1000h) — Rate of change of elongation at break | % | |||
| Resistance to environmental stress cracking | F₀/h | ≥96 | GB/T 2951.41 | IEC 60811-4-1 |
| Low-temperature impact embrittlement (-25℃) | — | Pass | GB/T 5470 | ISO 974 |
| Oxygen index | % | ≥30 | GB/T 2406.2 | ISO 4589-2 |
| Single vertical combustion | — | Pass | GB/T 12666.1 | IEC 60332-1 |
| Halogen acid gas content | mg/g | ≤5 | GB/T 17650.1 | IEC 60754-1 |
| Combustion gas pH value | — | 5.3 | GB/T 17650.2 | IEC 60754-2 |
| Combustion gas conductivity | μs/mm | 1.0 | GB/T 17650.2 | IEC 60754-2 |
| Shore hardness HA | — | 87.9 | GB/T 2411 | ISO 868 |

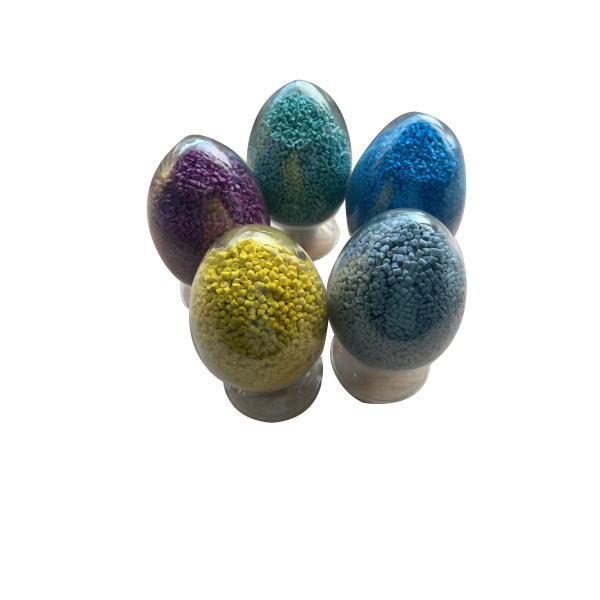

This product is a low-smoke halogen-free flame-retardant polyolefin cable compound. Its color can be customized according to customer requirements, and it is primarily suitable for the following applications:
1. Outer sheath of drop-wire (butterfly) cables, meeting single vertical combustion requirements;
2. Various low-smoke halogen-free colored sheaths and color stripe (identification stripe) applications, meeting customers’ multi-color and color-identification requirements.
In addition, this product features a low coefficient of friction after cabling (≤ 0.25) for a smooth sheath surface, and good weather/UV resistance (rate of change of tensile strength and elongation at break within ±30% after xenon lamp aging for 1000h), making it also suitable for applications with surface smoothness and weather/UV resistance requirements.
