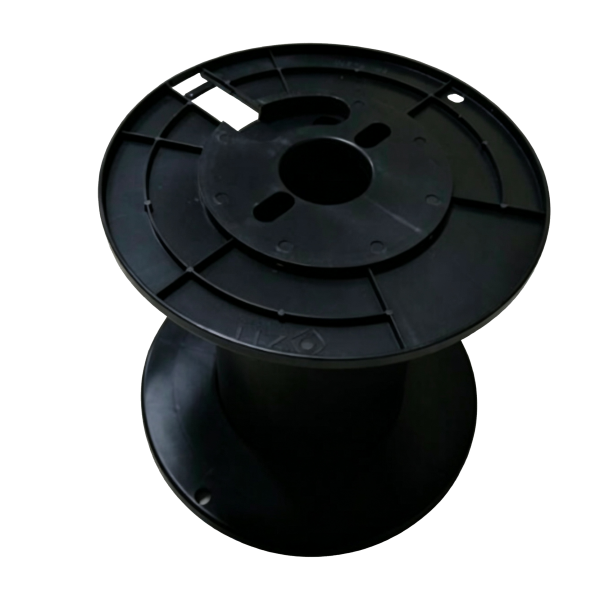

Dedicated packaging reel for FTTH Drop Cable, for winding, storage and transportation.
-Eco-friendly: Recycled PP material, substitutes wood & metal reels. -Multiple sizes: Max load 50 kg, fits 1-2 km drop cable delivery. -Stable structure: Anti-creep design, low deformation under extreme temperatures. -Lightweight: Injection-molded, easy winding/unwinding, fully recyclable.
| ZTT Item Code | Unit | 401532 | 361522 | 271522 | 271517 | 301526.5 | 301522 | 301517 |
| Component Size | cm | 401532 | 361522 | 271522 | 271517 | 301526.5 | 301522 | 301517 |
| Application | 2KM | 2KM | 1KM | 1KM | 1KM | 1KM | 1KM | |
| Max. Load | kg | 50 | 30 | 20 | 10 | 30 | 25 | 25 |
| Material | PP+PPGF30 | PP | PP | PP | PP | PP | PP | |
| Flange Diameter D1 | mm | 400±1 | 360±1 | 270±1 | 270±1 | 300±1 | 300±1 | 300±1 |
| Barrel Outer Diameter d2 | mm | 150±1 | 150±1 | 150±1 | 150±1 | 150±1 | 150±1 | 150±1 |
| Reel Outer Width L1 | mm | 320±1 | 220±1 | 220±1 | 170±1 | 265±1 | 220±1 | 170±1 |
| Reel Inner Effective Width L2 | mm | 295±1 | 198±1 | 198±1 | 147±1 | 252±1 | 198±1 | 147±1 |
| Bore Diameter H | mm | 58±1 | 58±1 | 58±1 | 58±1 | 58±1 | 58±1 | 58±1 |
| Sidewall Thickness T | mm | 12±1 | 12±1 | 12±1 | 12±1 | 12±1 | 12±1 | 12±1 |
Packaging & Storage: FTTH drop cables, communication wires, data cables.
Transportation: Factory delivery.
Deployment: Field installation.
