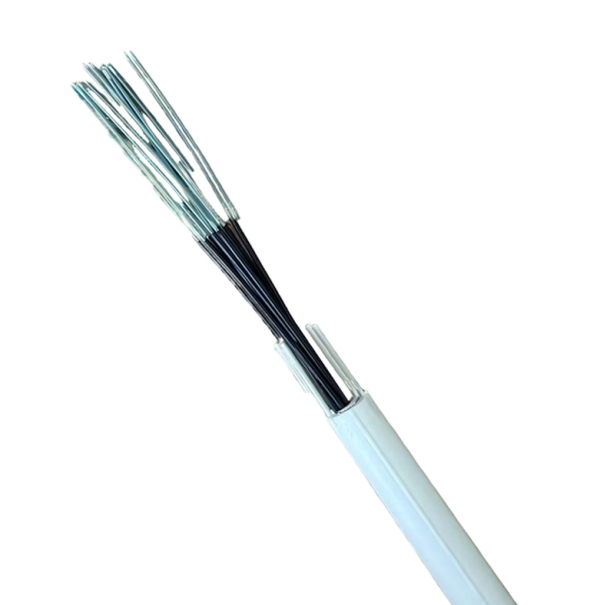

Mid Span Access Cable

The optical unit of mid span access cable uses easy-to-tear micro-tube material, allowing fiber separation without the need for tools. It is suitable for indoor comprehensive wiring in commercial office buildings and dense wiring in narrow indoor environments.

Product Description

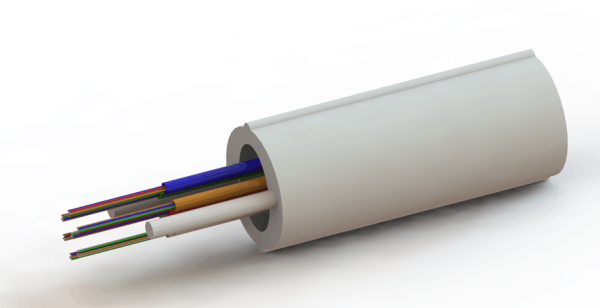

The outer surface of the mid span access cable is often marked with stripping indicators, allowing windows to be opened at any position. The optical unit inside the tube can be easily pulled out. The optical units adopts tight (loose) tube type and micro-tube type. The micro-tube optical unit features an ultra-thin design, enabling fiber separation without the need for tools. Two parallel FRP reinforcing members are embedded in the outer sheath, which enhances the tensile reliability of the optical cable while protecting the fiber cores.

Product Advantages

Adopts bend-insensitive optical fiber with low bending loss.
High core density, large capacity, small outer diameter and light weight.
Unique structure with identification strips; window-opening design protects from the damage of the optical fiber (only regular blade is needed).
No need to cut the cable core; the required optical fiber can be directly extracted, and the cable core can move freely (the cable core can be easily pulled out for 50 meters), enabling convenient and flexible laying and splicing.
The outer sheath is soft, with flame retardancy and self-extinguishing properties.

No. of Fibers	Cable diameter (mm)	Reference cable weight (kg/km)	Tensile load (N)		Crush load (N/100mm)
No. of Fibers	Cable diameter (mm)	Reference cable weight (kg/km)	Long-term	Short-term	Long-term	short-term
12(M12)	7	49	300	660	500	1000
24(M12)	7.6	56	300	660	500	1000
36(M12)	8.6	74	300	660	500	1000
48(M12)	8.8	76	300	660	500	1000
72(M12)	9.8	89	300	660	500	1000
96(M12)	10.5	106	300	660	500	1000
144(M12)	11.5	124	300	660	500	1000
288(M12)	14.5	181	300	660	500	1000

Installation method: Indoor comprehensive wiring.
Operating temperature:
Storage and operation: -20℃ to +60℃ Laying: -20℃ to +60℃.
Bending radius:
Static: 10 times the cable diameter; Dynamic: 20 times cable diameter.
