Ribbon Cable

Ribbon cable has excellent mechanical properties and is also moisture proof. It is suitable for ducts and for non-self-supporting overhead applications.

Product Description

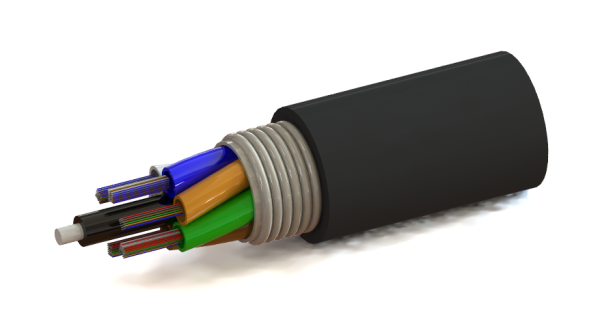

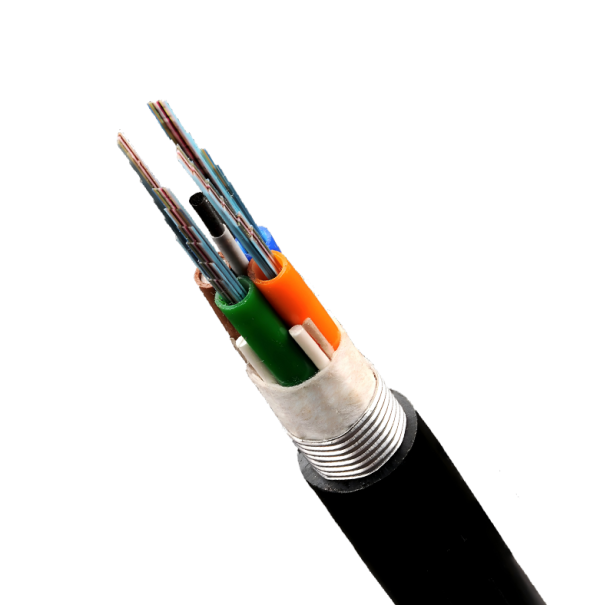

The structure involves arranging an even number of optical fibers in parallel, bonding them with adhesive material and UV-curing them into fiber ribbons. These ribbons are then inserted into loose tubes made of high-modulus polyester material, with the tubes filled with water-blocking compound. At the core center lies metallic strength member, around which the loose tubes (and filler rods) are stranded to form a compact circular cable core. Gaps within the core are filled with water-blocking filling compound. An aluminum-plastic laminate (APL) tape is longitudinally applied before the cable is sheathed with an extruded polyethylene outer jacket.

Product Advantages

Utilizes high-quality 4, 6, 12, and 24 fiber ribbons. The cable features flexible application. Precise fiber over-length control technology and stable cabling processes ensure that the optical cable has superior mechanical and environmental performance.
The tubes exhibit excellent flexibility and resistance to lateral pressure.
The polyethylene (PE) sheath provides outstanding resistance to ultraviolet (UV) radiation.
An aluminum-plastic laminate (APL) moisture barrier and a full-section water-blocking structure guarantees excellent water-blocking and moisture-proof performance.

Fiber count	Fiber ribbon×layer	Cable diameter （mm）	Cable weight (kg/km)	Bending radius（mm）		Tensile load （N）	Crush load （N/10cm）
Fiber count	Fiber ribbon×layer	Cable diameter （mm）	Cable weight (kg/km)	static	dynamic	Tensile load （N）	Crush load （N/10cm）
48	12×4	17.1	295	10D	20D	0.8*G	1000
60	12×3	16.9	293	10D	20D	0.8*G	1000
64	12×3	16.9	294	10D	20D	0.8*G	1000
72	12×3	16.9	294	10D	20D	0.8*G	1000
96	12×4	17.1	300	10D	20D	0.8*G	1000
108	12×4	17.1	301	10D	20D	0.8*G	1000
114	12×4	17.1	301	10D	20D	0.8*G	1000
120	12×4	17.1	302	10D	20D	0.8*G	1000
132	12×4	17.1	303	10D	20D	0.8*G	1000
144	12×4	17.1	304	10D	20D	0.8*G	1000
156	12×6	18.1	331	10D	20D	0.8*G	1000
168	12×6	18.1	332	10D	20D	0.8*G	1000
180	12×6	18.1	333	10D	20D	0.8*G	1000
216	12×6	18.1	337	10D	20D	0.8*G	1000
288	12×6	18.1	343	10D	20D	0.8*G	1000
576	12×12	22	484	10D	20D	0.8*G	1000

Installation method: Duct, non-self-supporting overhead application
Operating temperature:
Storage and operation: -40℃ to +70℃; Laying: -15℃ to +60℃.
Bending radius: Static: 10 times the cable diameter; Dynamic: 20 times cable diameter.
