ADSS cable

ZTT ADSS cables revolutionize aerial fiber deployment with their lightweight, all-dielectric design that requires no supporting messengers or metallic components. Engineered for exceptional durability and ease of installation

Product Description

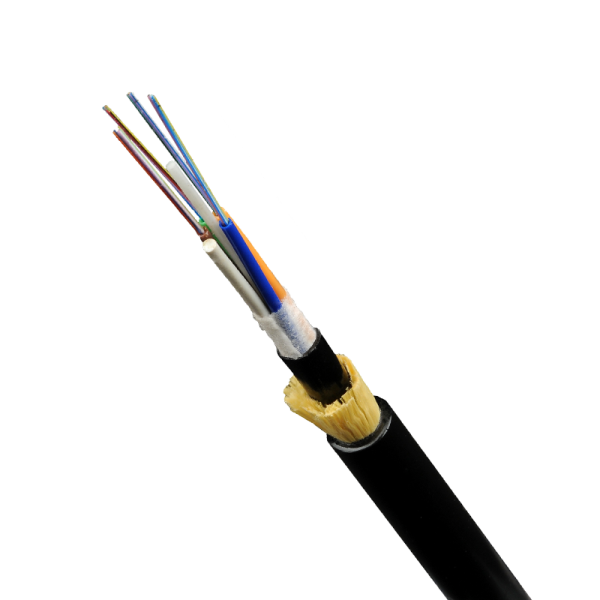

ZTT ADSS cables feature high-performance single-mode or multimode optical fibers housed in PBT loose tubes, which are stranded around a central dielectric strength member made of FRP (Fiber Reinforced Plastic).
The unique all-dielectric design includes:Central FRP reinforcement member for high tensile strength, optimized loose tube structure for fiber protection, aramid yarn strength layers for additional support and also outer weather-resistant PE or AT (Anti-tracking) material.
The final outer sheath utilizes specially formulated polyethylene (PE) or LSZH material, offering: ultra-smooth surface for reduced friction during installation, excellent resistance to abrasion, chemicals and UV radiation environmentally friendly composition.

Product Advantages

ZTT ADSS cables provide power utilities and telecom operators with a reliable, efficient and economical solution for overhead fiber optic networks. It is custom designed and available for special voltage environments or extreme climate conditions. It i also optimized for aerial deployment efficiency.
Lightweight, all-dielectric design enables fast installation with 40% less labor compared to traditional aerial cables,
Self-supporting structure eliminates need for separate messenger wires, reducing visual impact and installation complexity.
Superior environmental resilience (specially formulated AT/PE sheath) provides excellent UV resistance for long-term outdoor exposure. It also maintains stable performance across extreme temperatures (-40°C to +70°C) and outstanding resistance to wind, ice loads (up to 30mm ice coating) and pollution.

ADSS Single Sheath
No of Fiber	Cable diameter ±0.5（mm）	Cable weight ±15% (kg/km)	Tensile load short-term (N)	Crush load short-term (N/100mm)
12	11.3	96	2800	1000
24	11.3	96	2800	1000
36	11.3	96	2800	1000
48	11.3	96	2800	1000
72	12	112	3100	1000
96	13.6	145	4000	1000
144	17	230	5500	1000

ADSS Double Sheath
Span	Cable diameter ±0.5（mm）	Cable weight ±15% (kg/km)		MAT (kn)	RTS (kn)	Crush load (N/100mm)
Span	Cable diameter ±0.5（mm）	PE	AT	MAT (kn)	RTS (kn)	Crush load (N/100mm)
100	11.6	124	133	3.4	8.5	2200
200	12	131	139	6.1	15.3	2200
300	12.3	136	145	8.2	20.4	2200
400	12.5	141	150	10.2	25.5	2200
500	12.8	146	156	12.2	30.6	2200
600	13.8	66	176	15.6	39.1	2200
700	14.2	179	190	18.4	45.9	2200
800	14.5	186	197	21.1	52.7	2200
900	14.8	192	204	23.8	59.5	2200
1000	15.1	196	209	26.5	66.3	2200
1100	15.3	202	214	28.6	71.4	2200
1200	15.5	215	226	30.6	75.6	2200
1500	16.1	230	245	36	90	2200

Installation method: Aerial suspension on poles/towers
Operating temperature:Storage and operation: -40℃ to +70℃ Laying: -40℃ to +70℃.
Bending radius:Static: 10 times the cable diameter; Dynamic: 20 times cable diameter.Tensile Strength: RTS up to 30kN (customizable)
Span Length: Typically 100-1000m (depending on load conditions)
