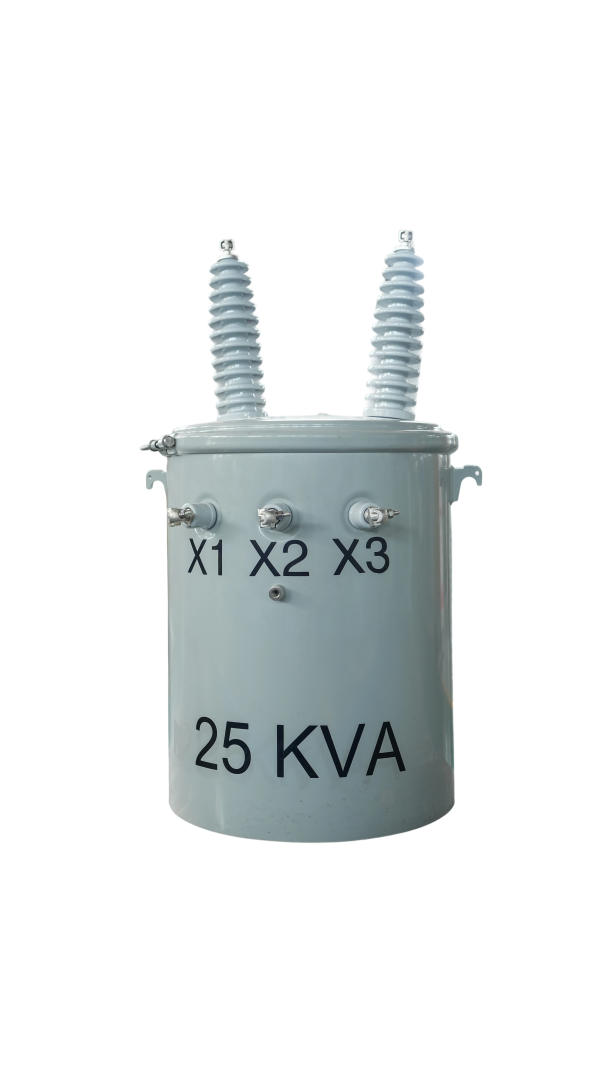

Single-phase Distribution Transformer

Single-phase oil-immersed distribution transformer, ANSI & IEC compliant, high efficiency, low loss, reliable.

Full hermetic structure prevents moisture ingress. Core uses high-permeability silicon steel . Windings deliver strong short-circuit withstand and overload capacity. Standard mineral oil, natural ester optional. Vector group Ii0, built to ANSI C57.12 / IEC 60076.

No.	Item	Parameter Value
1	Capacity	5 ~ 630 kVA
2	High Voltage	2400V ~ 34500V
3	Low Voltage	110V ~ 690V
4	Voltage Tap Change	±2×2.5%, Off-circuit tap changer
5	Vector Group	Ii0
6	Cooling Method	ONAN
7	Standard	ANSI / IEC 60076
8	Core Material	Silicon Steel/Amorphous Alloy
9	Oil Type	Mineral Oil (standard) / Vegetable Oil(optional)
10	Characteristic	HIGH EFFICIENCY, LOW LOSSES, RELIABLE OPERATION
