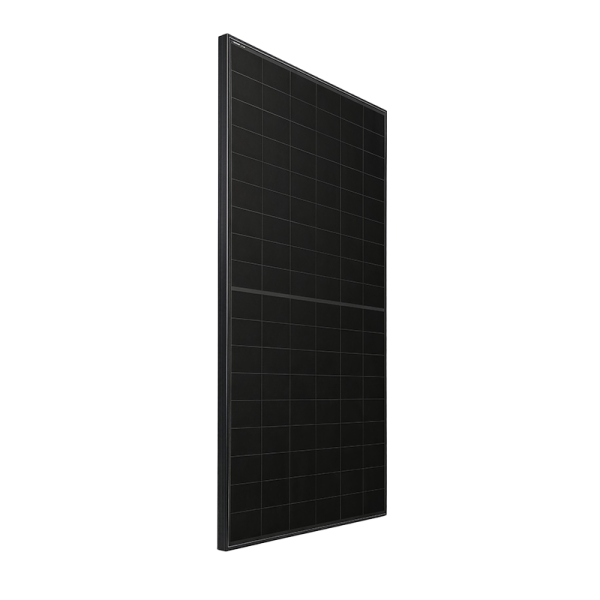

ZTT-NG54CDB-470-485W

N type BC dual glass module for residential applications.Its grid free front surface delivers a full black aesthetic. Balancing high efficiency with superior weather resistance, this module effectively addresses residential rooftop challenges – including partial shading, summer heat, and aesthetic requirements – making it an ideal choice for homes and small C&I rooftops alike.

Product Advantages

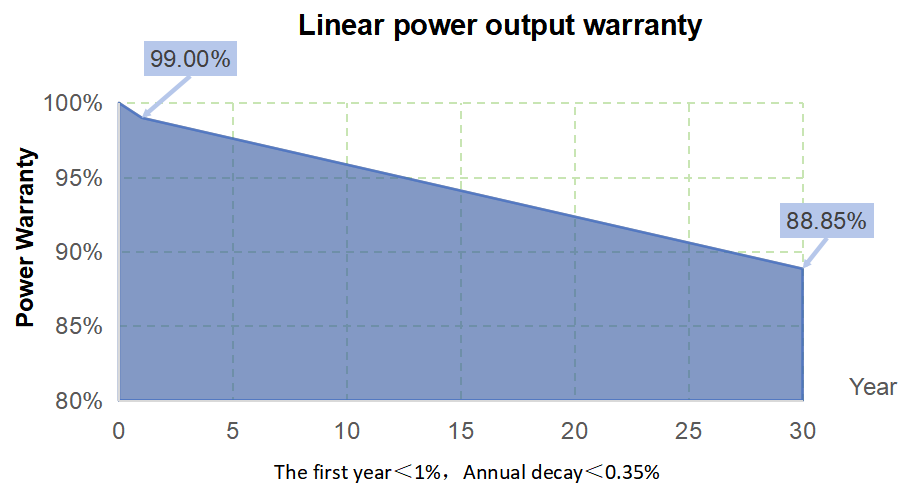

Reliable Performance:The dual‑glass design is backed by a 30‑year linear warranty, with first‑year degradation of <1% and an annual degradation rate of 0.35% thereafter.
Stable Output:BC cells maintain 70% of rated power output under partial shading, effectively minimizing generation losses caused by rooftop obstacles.
Aesthetic Design: With zero front‑side grid lines, the module achieves a sleek full‑black appearance and up to 23.8% efficiency, blending seamlessly with tile roofs, color‑coated steel roofs, and a variety of residential architectural styles.
Excellent Temperature Resistance:The module effectively suppresses hotspot risks, as it reduces cell temperature by over 60°C under shading conditions, complemented by a low temperature coefficient of –0.26%/°C.

Mechanical Characteristics
Cell Type	N type Mono-crystalline
Number of Cells	108(6×18)
Dimensions	1800×1134×30 mm
Weight	23.5 kg
Glass	2.0+1.6 mm Semi-tempered Glass (Dual Glass)
Frame	Black Anodized Aluminum Alloy
Junction Box	IP68, with 3 bypass diodes
Output Cable	4 mm², Length can be customized
Packing	36 pcs/Pallet; 216 pcs/20’GP; 864 pcs/40’HQ

Remark: 17.5m trucks are rated at 30t load. Actual loading quantity is subject to vehicle specs.

Electrical Characteristics(STC)
Module Type	ZTT-NG54CDB-470-485W
Maximum Power (Pmax/W)	470	475	480	485
Open Circuit Voltage (Voc/V)	40.31	40.42	40.53	40.64
Short Circuit Current (Isc/A)	14.78	14.87	14.97	15.08
Maximum Power Voltage (Vmp/V)	33.29	33.40	33.51	33.62
Maximum Power Current (Imp/A)	14.13	14.23	14.33	14.43
Module Efficiency(%)	23.0	23.2	23.5	23.8

Disclaimer:

Due to ongoing technological advancements and product updates, deviations may exist between the parameters of future modules and those stated herein. Jiangsu Jiangdong Solar Technology Co., Ltd. (“Jiangdong Solar”) reserves the right to modify technical parameters without prior notice. The right of final interpretation of this datasheet shall vest in Jiangdong Solar.

Suitable for residential rooftops and small commercial & industrial rooftop distributed PV power stations.

Operating Parameters
Module [T98]Max	70 °C
Operating Temperature	-40 °C ~ +85 °C
Power Output Tolerance	0 ~ 3%
Maximum System Voltage	DC 1500V (IEC)
Maximum Series Fuse Rating	30 A
Nominal Operating Cell Temperature	45 ± 2 °C
Protection Class	Class II
Fire Rating	IEC Class C

Mechanical Loading
Min Designed Mechanical Load	1600 Pa / 1600 Pa
Front Side Maximum Static Loading	5400 Pa
Rear Side Maximum Static Loading	2400 Pa
Hailstone Test	25mm Hailstone at the speed of 23m/s

Temperature Ratings (STC)
Temperature Coefficient of Isc	+0.050 % / °C
Temperature Coefficient of Voc	-0.200 % / °C
Temperature Coefficient of Pmax	-0.260 % / °C

Let’s Build The Future with Innovation

Please provide the following details to help our sales representatives better understand your needs and get In touch with you as soon as possible.

ZTT-NG54CDB-470-485W

Related Products

Related products

ZTT-NE66CD-640-670W

ZTT-ND54HDB-425-450W

ZTT-NE66OD-620-655W Offshore PV Module

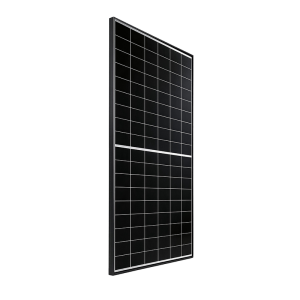

ZTT-NG54CD-475-500W
