ZR-PS400-03-4310-0738-160

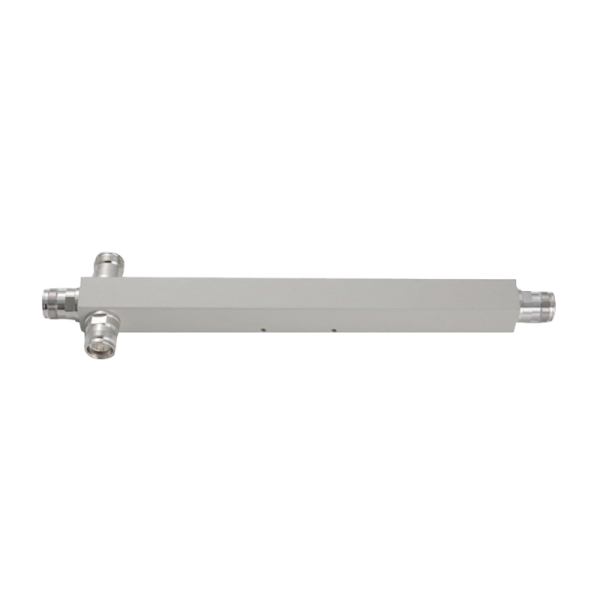

ZTT 3-Way Power Splitter, coverage 694MHz -3800MHz

3-way power splitter evenly distributing RF signals across two output ports with minimal insertion loss. Its robust, low-profile design ensures reliable performance in in-building wireless systems, DAS deployments, and indoor coverage solutions.

*Electrical characteristics*
Frequency	694-3800MHz
ZTT Code	ZR-PS400-02-4310-0738-160	ZR-PS400-03-4310-0738-160	ZR-PS400-04-4310-0738-160
Port	2	3	4
Split Loss(dB)	3.0	5.0	6.0
Insertion Loss(dB)	±0.4	±0.3	±0.6
VSWR	≤1.3
Intermodulation (dBc)	≤-160dBc (with 2×43dBm)
Impedance (Ω)	50 Ω
Input power (W)	400
Connectors	4.3-10F
Color	black
Weight(kg)	≤0.4	≤0.45	≤0.5
Dimension(mm)	225 x 25 x 25	233 x 25 x 25	233 x 25 x 25
