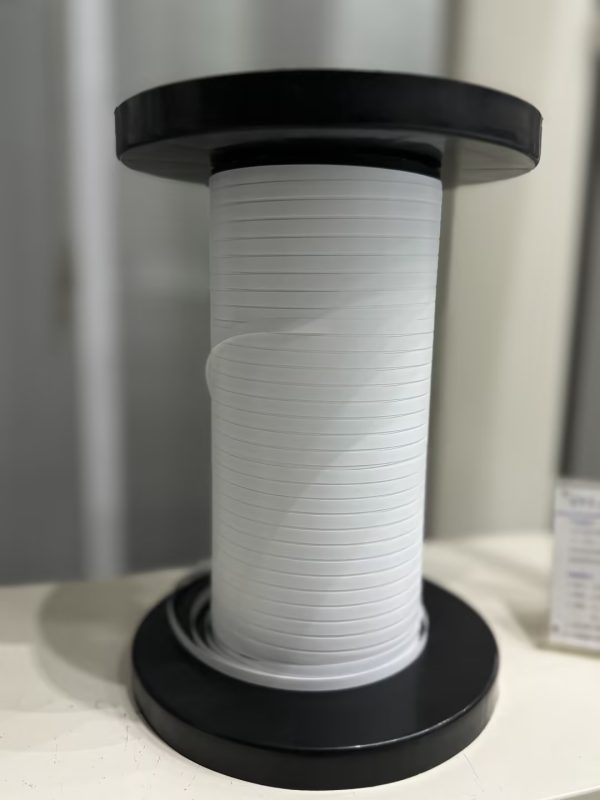

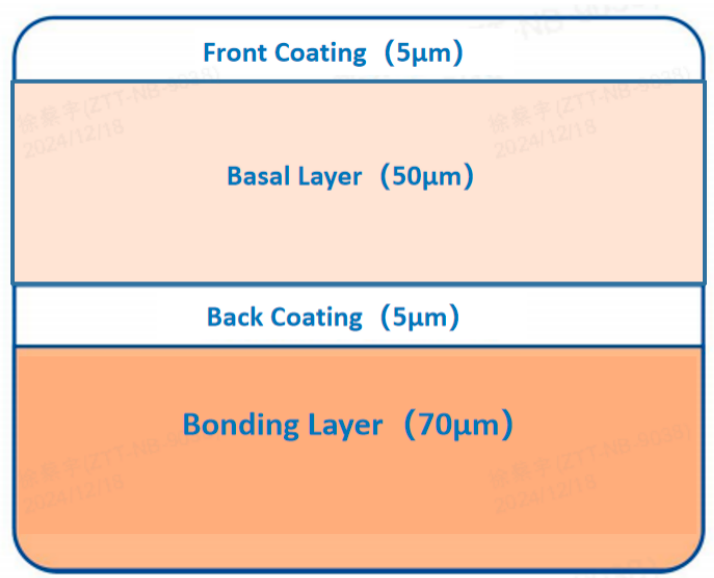

To meet the cost reduction trend of photovoltaics, we launched CPC (coating-PET-coating) white reflective film products (ZTT-FGM-B01). The products are produced through the optical coating production line, and the white coatings and bonding layers are self-developed, which have excellent anti-UV performance and reflection gain; besides, with the mature manufacturing process and low manufacturing cost, the component gain is estimated by the component factory to have reached 0.8-1.2%.
Product Features
Technical Indicators
No. | Test Item | Unit | Value | Test Standard |
| 1 | Thickness | μm | Nominal value ±5% | GB/T13542-2009 |
2 | Width | mm | Nominal value ±0.2 | GB/T13542-2009 |
| 3 | Tensile strength | Mpa | ＞70 | ISO527-3 |
4 | Elongation at break | % | ＞90 | ISO527-3 |
| 5 | Dimensional stability | % | ＜2 | GB/T 13542.2-2021 |
6 | Peeling strength | N/cm | ＞0.1 | GB/T 2790-1995 |
| 7 | Peeling strength with EVA | N/cm | ＞12 | GB/T 2790-1995 |
8 | (380-1100nm) Reflectance | % | ≥80 | Integrating sphere method |
| 9 | Damp heat (2000h) UV aging (200kWh/m2) Thermal cycling (200 cycle) Hot bake test（150℃,72h） | Appearance | No brittle fracture, blistering, delamination | IEC 61215 |
