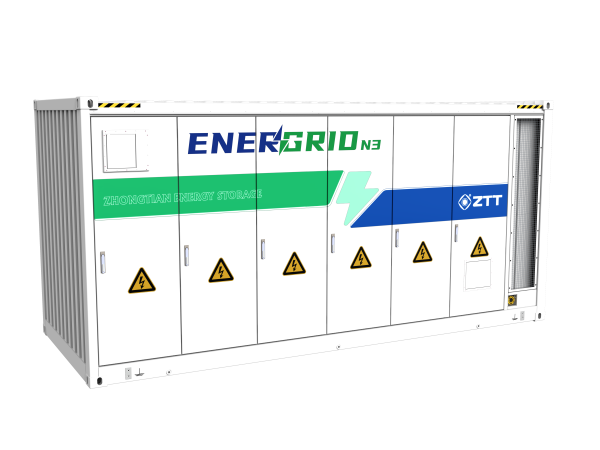

The ENERGRID series offers a range of prefabricated liquid-cooling battery energy storage systems, each a fully integrated solution. The N3 model integrates high-performance batteries, an intelligent Battery Management System (BMS), advanced liquid-cooling thermal management, active fire protection, and a complete electrical distribution system within a modular enclosure. Designed to accommodate a wide voltage range and various capacity options, the series provides flexible configurations ideally suited for new energy power stations and microgrid systems.
| Model | N3 |
| DC Side | |
| Battery Type | LFP / 314Ah |
| Rated Voltage | 1331.2V (12P416S) |
| DC Operating Voltage Range | 1040 ~ 1497V |
| Rated Capacity | 5015kWh |
System Parameters | |
| DC Output | Single Loop |
Thermal Management | Intelligent Liquid Cooling & Heating |
| Operating Temperature | -20℃ ~ 55℃ [1] |
Fire Protection | Active Alert | Aerosol | Water suppression |
| Protection Rating | IP54 |
Anti-corrosion | C5 |
| Operating Altitude | ≤2000m |
Noise Level | ≤75dB |
| Auxiliary Power | ≤43kW |
Weight | 40 t |
| Dimensions (W×D×H) | 6058×2438×2896mm |
Communication | Modbus TCP/RTU, IEC 61850, IEC 104, CAN |
| Standards&Certificates | IEC 62477 / IEC 61000 / IEC 62619 / IEC 63056 / IEC 60730 / UN 38.3 / UN 3480 |
Note: [1] Power derating occurs when ambient temperature is below -15 °C or above 45 °C.
