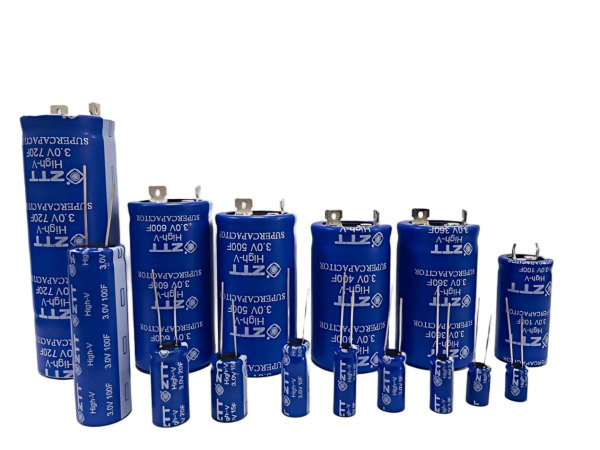

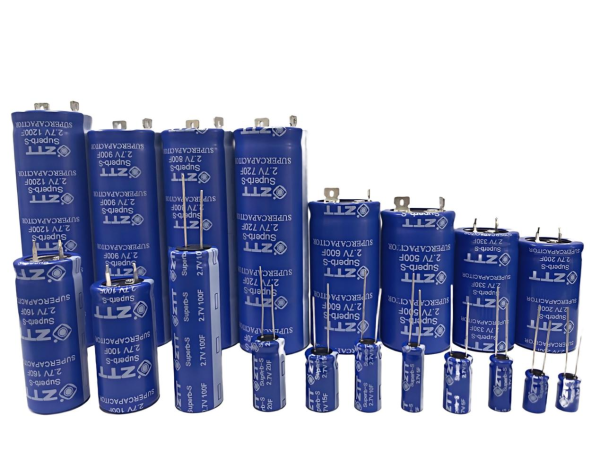

Electric Double-Layer Capacitor(EDLC), cylindrical structure with snap‑fit termination, ultra‑low internal resistance, designed for medium‑to‑high power discharge, and a cell voltage of up to 3 V.

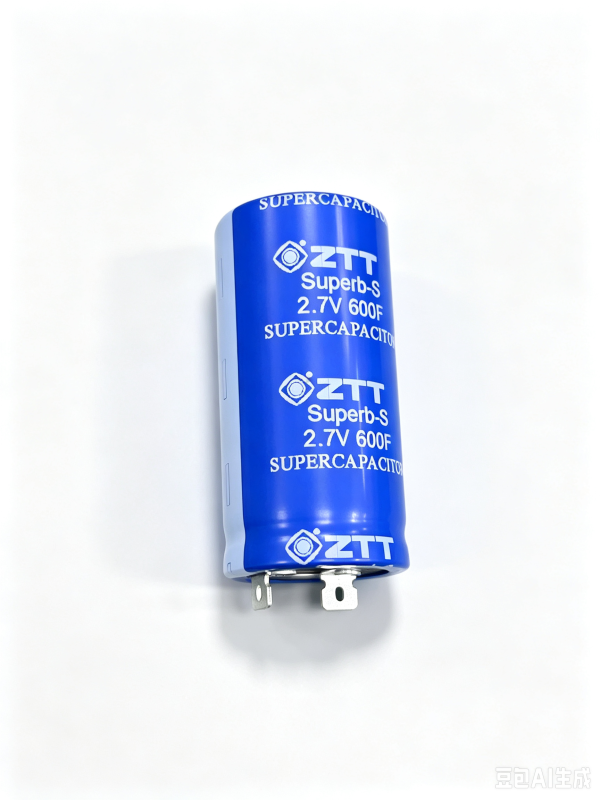

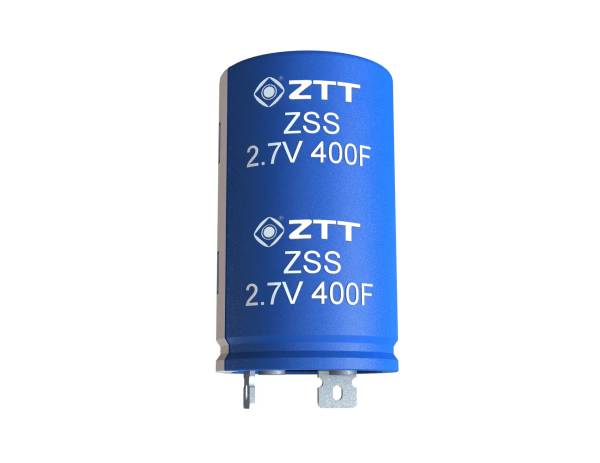

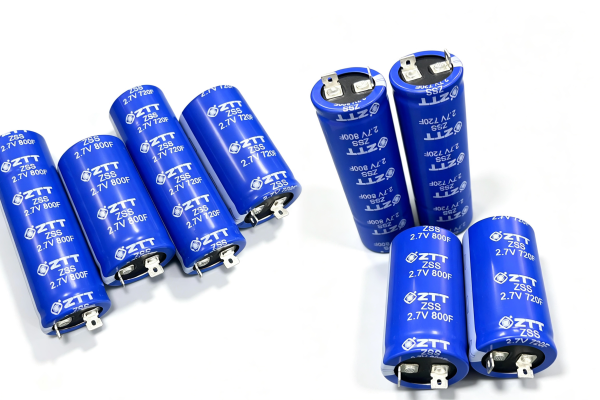

Product Details – Snap-In supercapacitor:
Dimension:
Standard product list
| Rated voltage(V) | Capacity（F) | ESR DC(mΩ) | ESR AC(1kHz)（mΩ） | Leakage Current（mA) (72hrs@25) | Weight(g) | D×L（mm) | Energy denisity(Wh/Kg) | Power density(KW/Kg) |
| 2.7/3.0 | 100 | 12 | 8 | 0.3 | 20 | 22×45 | 5.06 | 3.64 |
| 2.7/3.0 | 160 | 11 | 7 | 0.6 | 26 | 22×55 | 6.23 | 3.05 |
| 2.7/3.0 | 220 | 10 | 6 | 0.7 | 36 | 30×50 | 6.1 | 2.4 |
| 2.7/3.0 | 330 | 7 | 4 | 1 | 35 | 30×55 | 9.54 | 3.57 |
| 2.7/3.0 | 360 | 3.5 | 3 | 1 | 64 | 35×60 | 5.69 | 3.9 |
| 2.7/3.0 | 400 | 3.2 | 2.8 | 1 | 70 | 35×60 | 5.78 | 3.9 |
| 2.7/3.0 | 470 | 3.5 | 3 | 1.3 | 75 | 35×60 | 6.3 | 3.3 |
| 2.7/3.0 | 470 | 3.5 | 3 | 1.3 | 75 | 35×60 | 6.3 | 3.3 |
2.7/3.0 | 500 | 3.4 | 2.9 | 1.3 | 80 | 35×65 | 6.32 | 3.21 |
| 2.7/3.0 | 600 | 3.5 | 3 | 1.5 | 88 | 35×70 | 7.2 | 2.97 |
| 2.7/3.0 | 720 | 2 | 1.8 | 2.5 | 130 | 35×105 | 5.6 | 3.36 |
| 2.7/3.0 | 720 | 3 | 2.5 | 2 | 115 | 40×70 | 6.33 | 2.53 |
| 2.7/3.0 | 800 | 2 | 1.8 | 2.5 | 145 | 35×105 | 5.58 | 3.01 |
| 2.7/3.0 | 800 | 3 | 2.5 | 2 | 115 | 40×70 | 7.04 | 2.54 |
| 2.7/3.0 | 900 | 2 | 1.8 | 2.5 | 130 | 35×105 | 7 | 3.36 |
| 2.7/3.0 | 1200 | 2 | 1.8 | 3.5 | 180 | 40×105 | 6.75 | 2.43 |
