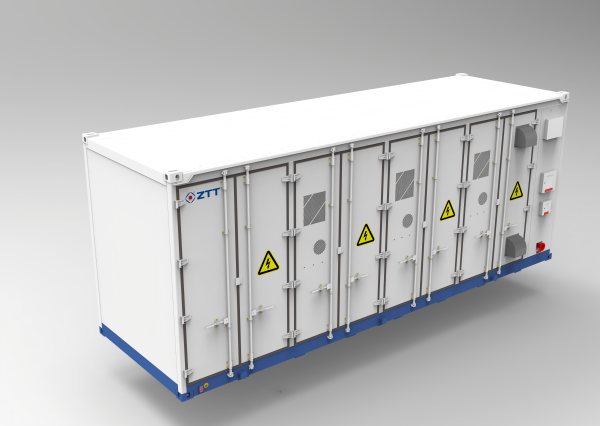

25-Foot Supercapacitor Energy Storage Container (5MW30s)

Standardized Electric Double-Layer Capacitor (EDLC) compartments, combined with matching power compartments, form a dedicated grid-frequency-regulation energy storage system.

Product  Description
Combined design of standard super-capacity cabin,and standard power cabin for rapid product delivery,Real-time monitoring of individual unit status; integrated gas/foam fire suppression system; multi-layer safety protection.
Product Features
  • Modular building-block design
  • Flexible capacity configuration
  • Supports ultra-high-speed charging and discharging with high current, experiencing no degradation after deep discharge
  • Flexible start-stop capabilities and stable performance under frequent switching conditions
  • Short construction period
  • Supports millions of charge-discharge cycles, far outperforming lithium batteries
  • Virtual absence of significant capacity degradation throughout its service life, combined with low maintenance costs—ideal for the long-term, stable operation of wind farms
  • Suitable for multi-scenario grid connections

Technical Indicators

Specification name

5MW30s
Operating temperature range

-40~65°C

Operating voltage range

910~1500Vdc
Rated capacity

259F

Rated voltage

1500Vdc
Relative humidity

5~95%(Non-condensation)

Nominal energy

41.6kWh
Rated current

4316A

Peak current

80119A
Cooling method

Air cooling

Communication mode

RS485/Ethernet/CAN
CMS Management System

Three-tier architecture

Fire protection system

Perfluorohexanone fire extinguisher
Cycle life

100 Ten thousand times

Weight

32T
Overall dimensions

7958*2700*2890 mm

IP Rating

IP55
