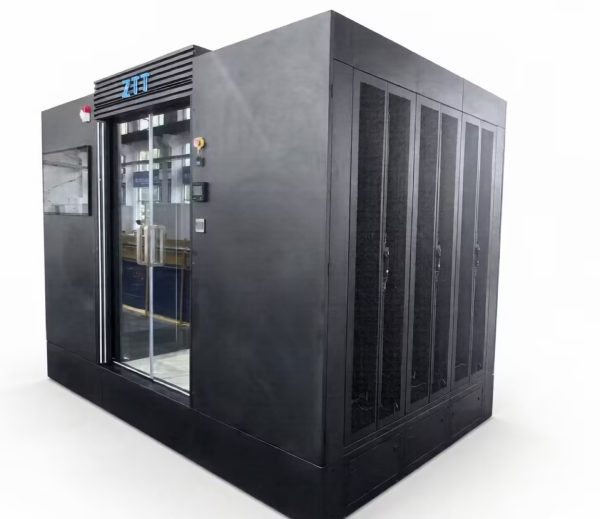

Micro Modular Data Center

Features

Energy saving: The cold and hot aisles are completely sealed,optimized airflow distribution.
Fast installation: Standardized factory prefabricated components, quick on-site installation.

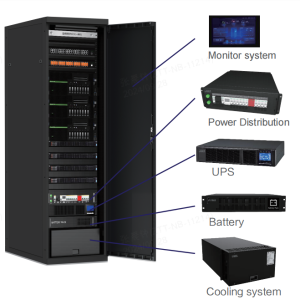

Integrated components: Cabinets, UPS, Air conditioning, Power cabinets, Intelligent monitoring, etc.
Intelligent monitoring: Voltage, current, power, temperature and humidity, PUE and other data, and provide historical data query.

It uses factory prefabricated modular components to achieve fast and flexible deployment of data centers, and adopts advanced cooling and power supply technologies, which can effectively solve the air conditioning cooling problem of high-density racks, improve the operating efficiency of internal equipment in data centers, and reduce PUE values.

Item	Specification
Overall parameters
Single row (LWH)	L2400mm2000mm/2200mm( L≤15m)
Dual row ( LWH)	L3600mm2000mm/2200mm( L≤15m)
Reliability level	Tier lI and above
Operation temperature	-30℃~45℃
Operation humidity	5%~95%
Altitude	≤1000m, Derating at altitudes above 1000 meters
Installation method	Support both ground installation and base installation
Cabinet system
Dimension	300/600mm1200mm2000/2200mm
Space available	42U/47U
Perforated rate	≥ 75%
Dynamic bearing	1700KG
Static bearing	2520KG
Seismic grade	Level 8
Protection grade	IP20
Other	Optional accessories: Tray, PDU, Grounding copper bar, Pulley, etc
Aisle containment
Sky window	300/600mm Wide flip window or fixed window
Door	Sliding doors, Swing doors
Access control	Password, IC card, fingerprint (optional)
Cable Tray	Network cable tray/M-shaped sheet metal wiring rack
Base	Cabinet base, aisle base
Anti static floor	Calcium sulfate anti-static floor
Lighting	LED energy-saving light
UPS system
Rated input voltage	380/400/415Vac ，3P+N+E ，50/60HZ
Input power factor	>0.99(full load)
Output power factor	0.9
Rated capacity	20～ 300KVA（Support online expansion）
Communication interface	RS232, RS485,SNMP, DRY contact, EPO interface,Generator interface
Working mode	Online modular UPS (supporting online hot swappable maintenance)
Protection grade	IP20
Distribution system
Input voltage	380/400/415Vac , 3P+N+E, 50/60HZ
Rated capacity	16～ 630A
Input method	Single/Dual
Output circuit	Standard 21～126P
Other	B-level lightning protection, color touch screen, etc
Cooling system
Dimension	300/600mm1200mm2000/2200mm
Cooling capacity	25KW～ 40KW
Cooling method	Air cooling/water cooling
Air volume	4000～ 7700m3
Monitor system
Environmental monitoring	Temperature and humidity, smoke, water leakage, access control, camera
Power equipment monitoring	Power supply, battery, power distribution, air conditioning
Alarm method	Sound and light alarm, voice alarm, telephone SMS alarm, email alarm
