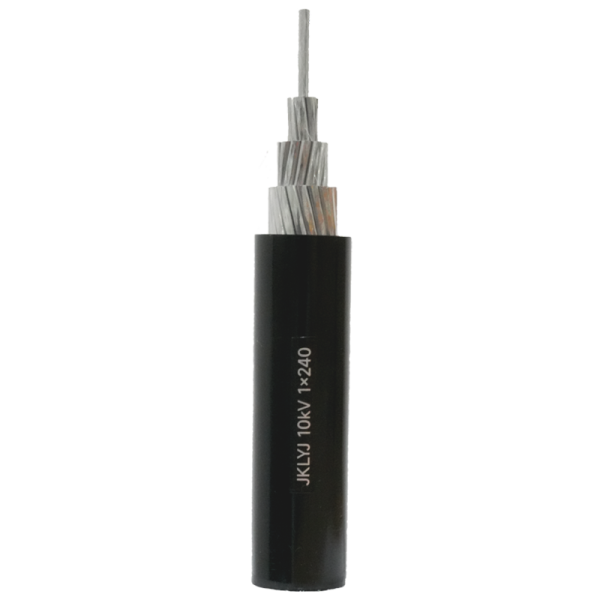

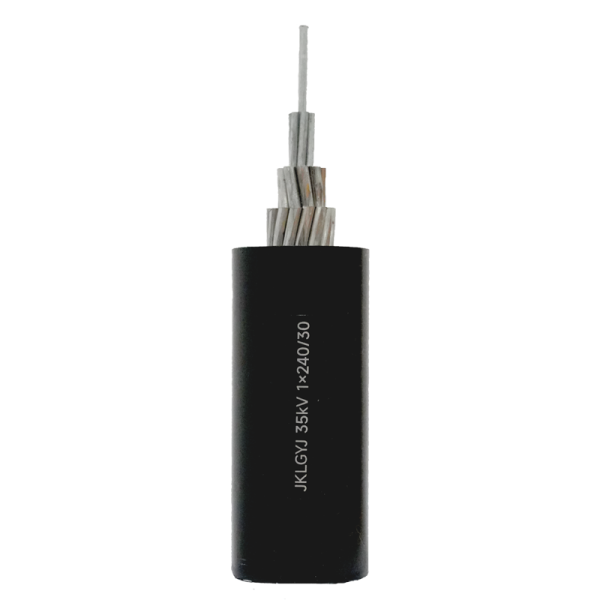

Medium Voltage Aerial Bundle Cable

Medium Voltage Aerial Bundle Cable utilize cross-linked polyethylene (XLPE) to ensure high electrical and thermal endurance, making them suitable for distributing power from substations to distribution transformers in urban grids.

Product Advantages

Insulated & Integrated Design

XLPE insulation ensures excellent electrical and thermal endurance in a bundled, space-saving structure.

Durable & Safe Overhead

High mechanical stability and reliable insulation offer superior safety and weather resistance for long-term use.

Cost-Effective & Adaptable

Low erection and maintenance costs, adaptable to areas with limited clearances or tree contact.

STANDARD TAXNOMY

Cables are offered accords with GB/T 14049.

CONSTRUCTION

Conductor: Optional of copper wire, aluminum wire, aluminum alloy, and aluminum conductor steel reinforced

Number of Cores: 1

Nominal Cross Sectional Area/mm2: 10-400

Conductor screen: Extruded semiconducting layer

Insulation: Black Cross-Linked Polyethylene(XLPE)

CHARACTERISTICS

Max. continuous temperature in operation:

XLPE insulated aerial cable: 90℃

Max. short-circuit temperature of the conductor (maximum duration: 5 seconds):

XLPE insulated aerial cable: 250℃

The products applies to the aerial electricity transmission and distribution line in the tall buildings, tourist attraction and forest zone.

The distance between the cable and trees should be taken into account, when the cable is laid in the aerial. It is permissible that the cable contact with trees.

Let’s Build The Future with Innovation

Please provide the following details to help our sales representatives better understand your needs and get In touch with you as soon as possible.

Medium Voltage Aerial Bundle Cable

Related Products

Related products

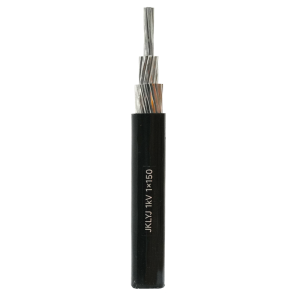

Low Voltage Aerial Bundle Cable
