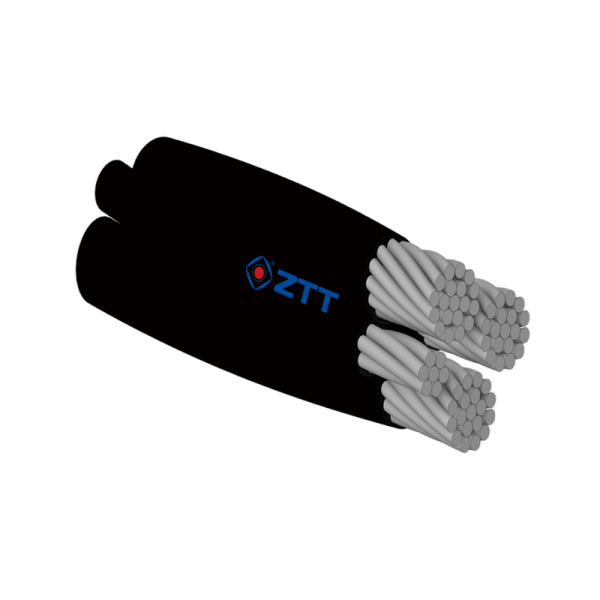

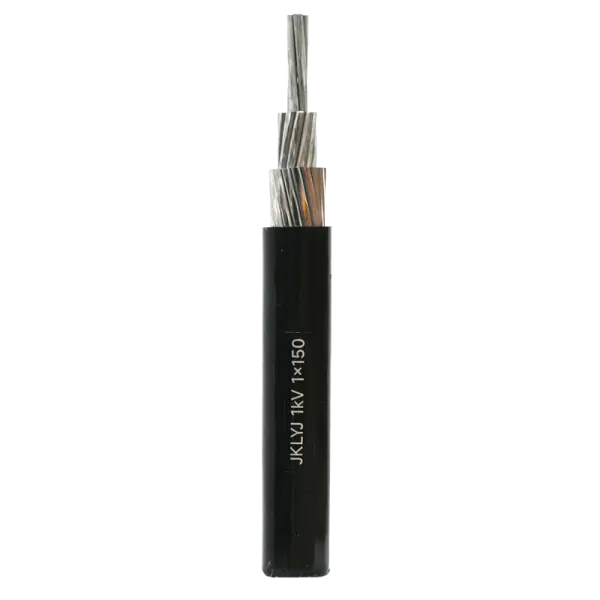

Low Voltage Aerial Bundle Cable

Typically using materials like XLPE or HDPE, provide sufficient insulation to safely transmit power from distribution transformers to end-users such as residential and small commercial areas. They allow for flexible installation with reduced safety clearances, enabling routing closer to buildings for convenient and efficient electricity supply.

Product Advantages

Compact & Easy to Install

Bundled design enables simple overhead erection, maintenance, and flexible power distribution.

Safe & Economical

Reduces shock hazard and enhances wind resistance, lowering pole and construction costs.

Durable & Adaptable

Excellent weather and UV resistance for long-term outdoor use, even in tight-clearance areas.

STANDARD TAXNOMY

Cables are offered accords with GB/T 12527.

CONSTRUCTION

Conductor: Optional of copper wire, aluminum wire, aluminum alloy, and aluminum conductor steel reinforced

Number of Cores: 1-6

Nominal Cross Sectional Area/mm²: 10-400

Insulation: Optional of HDPE or XLPE

CHARACTERISTICS

Max. continuous temperature in operation:

HDPE insulated aerial cable: 75℃

XLPE insulated aerial cable: 90℃

Max. short-circuit temperature of the conductor (maximum duration: 5 seconds):

HDPE insulated aerial cable: 150℃

XLPE insulated aerial cable: 250℃

The products applies to the aerial electricity transmission and distribution line in the tall buildings, tourist attraction and forest zone. The cable fit for aerial fixed-install-action, service entrance cable and so on.

Let’s Build The Future with Innovation

Please provide the following details to help our sales representatives better understand your needs and get In touch with you as soon as possible.

Low Voltage Aerial Bundle Cable

Related Products

Related products

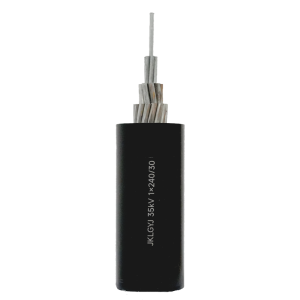

Medium Voltage Aerial Bundle Cable
